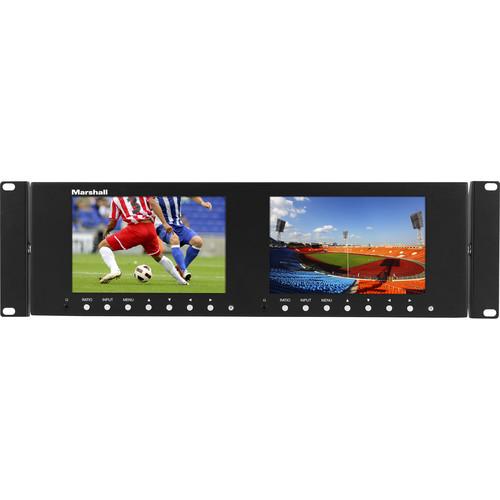

Product description The Dual 7" 1280 x 800 Rackmount LCD Display from Marshall Electronics features dual SDI and HDMI video inputs with audio de-embedding, loop-through outputs, and tally connections. The colorful displays have input selections for each screen, and support monitoring via front-panel headphone jacks. - Key Features
-
- Selectable markers and 1:1 pixel mapping
- Overscan and H/V delay modes
- Red, green, and yellow in-screen tally borders
- Slim design and 3 RU size
- Powered via 4-pin XLR jack or the included 12V supply
- Selectable English and Spanish on-screen displays
UPC: 801813189667 In the Box Marshall Electronics Dual 7" 1280 x 800 Rackmount LCD Display Universal AC Power Adapter Power Cord Limited 1-Year Warranty, Extendable to 2 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics Dual 7" 1280 x 800 Rackmount LCD Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

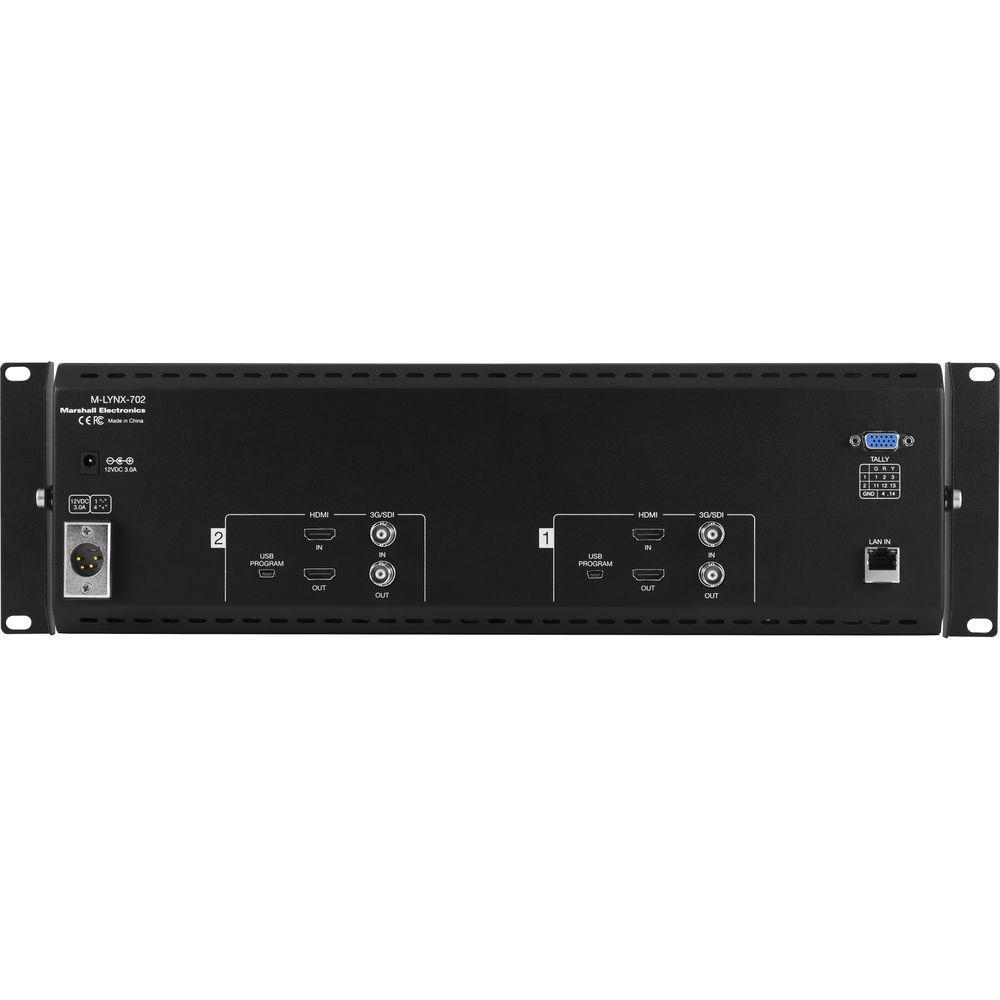

Technical parametersMarshall Electronics M-LYNX-702 V.3 Specs | Number of Panels | 2 | | Panel Size | 7" (17.8 cm)
3 RU | | Resolution | 1280 x 800 | | Aspect Ratio | 16:10 | | Active Area | 5.9 x 3.7" (149.3 x 93.6 mm) | | Backlight | LED | | Viewing Angle | 178° | | Brightness | 250 cd/m2 | | Contrast Ratio | 800:1 | | Inputs | Video
1 x 3G-SDI, BNC (conforms to SMPTE-292M, 259M, 424M)
1 x HDMI
Audio
Accepts HDMI and SDI-embedded audio | | Outputs | Video
1 x 3G-SDI, loop-through out
1 x HDMI, loop-through out
Audio
2 x 3.5 mm stereo headphone jacks | | Supported Formats | SDI
3G-Level A:
1080p 50, 59.94, 60
HD:
1080p 23.98, 24, 25, 29.97, 30
1080PsF 23.98, 24
1080i 50, 59.94, 60
720p 25, 29.97, 30, 50, 59.94, 60
SD:
576i 50
480i 59.94
HDMI
HD:
1080i 50, 59.94, 60
720p 25, 29.97, 30, 50, 59.94, 60
SD:
576p/i 50
480p/i 59.94 | | Control Inputs | Ethernet remote control port
Tally 9-pin D-Sub port for GPI input
Mini-USB service port | | Power Requirements | 11 to 17 VDC, 12 V (typical) via 5.5 mm jack or 4-pin XLR | | Compliances | FCC-Class A, CE, RoHS | | Dimensions (W × H × D) | 19.0 x 5.2 x 1.0" (48.3 x 13.2 x 2.5 cm) | | Weight | 4 lb (1.9 kg) | | | | Package Weight | 6.15 lb | | Box Dimensions (LxWxH) | 21.1 x 8.2 x 3.9" |
