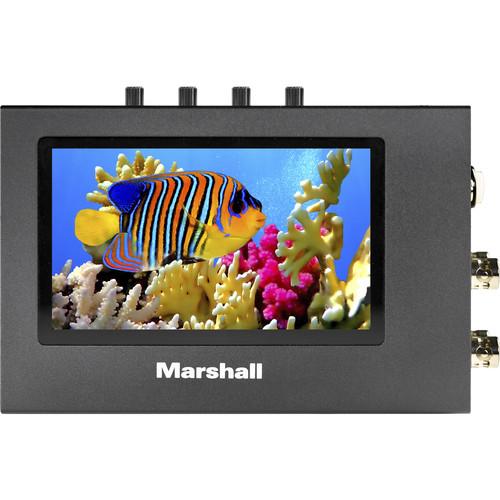

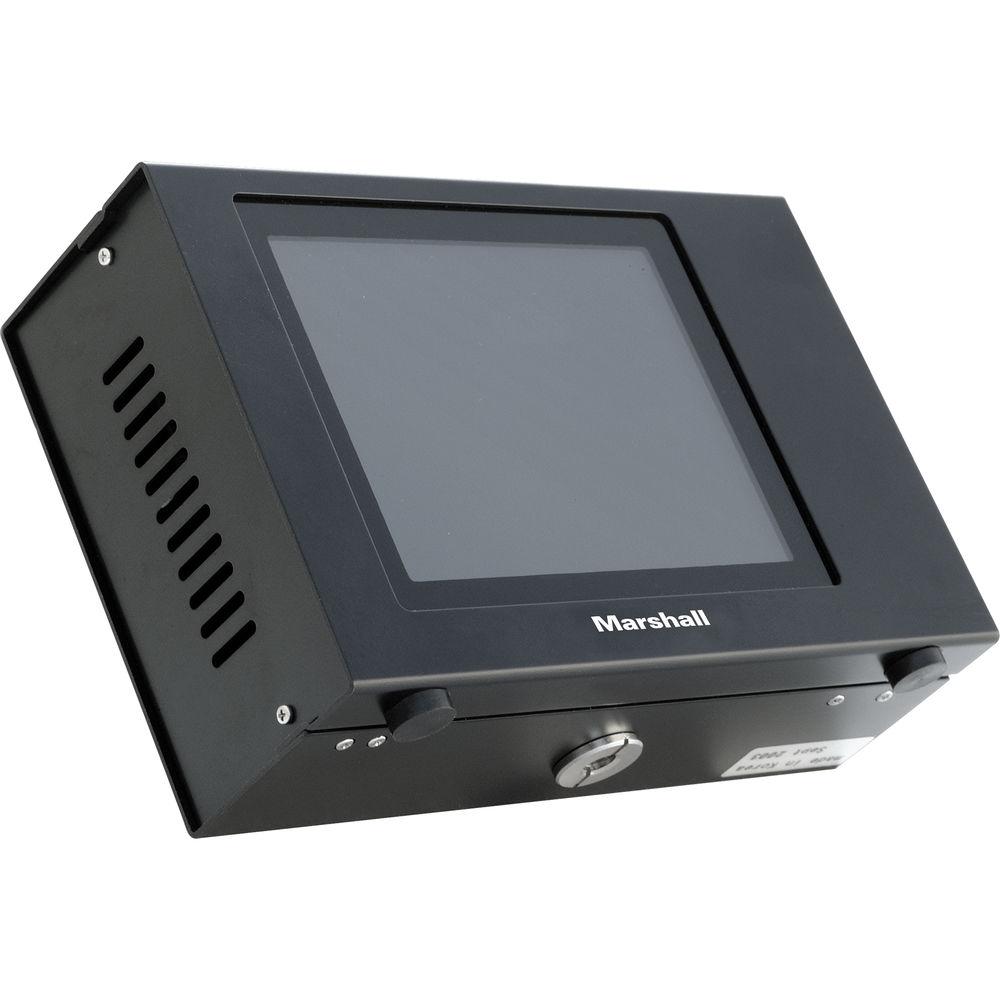

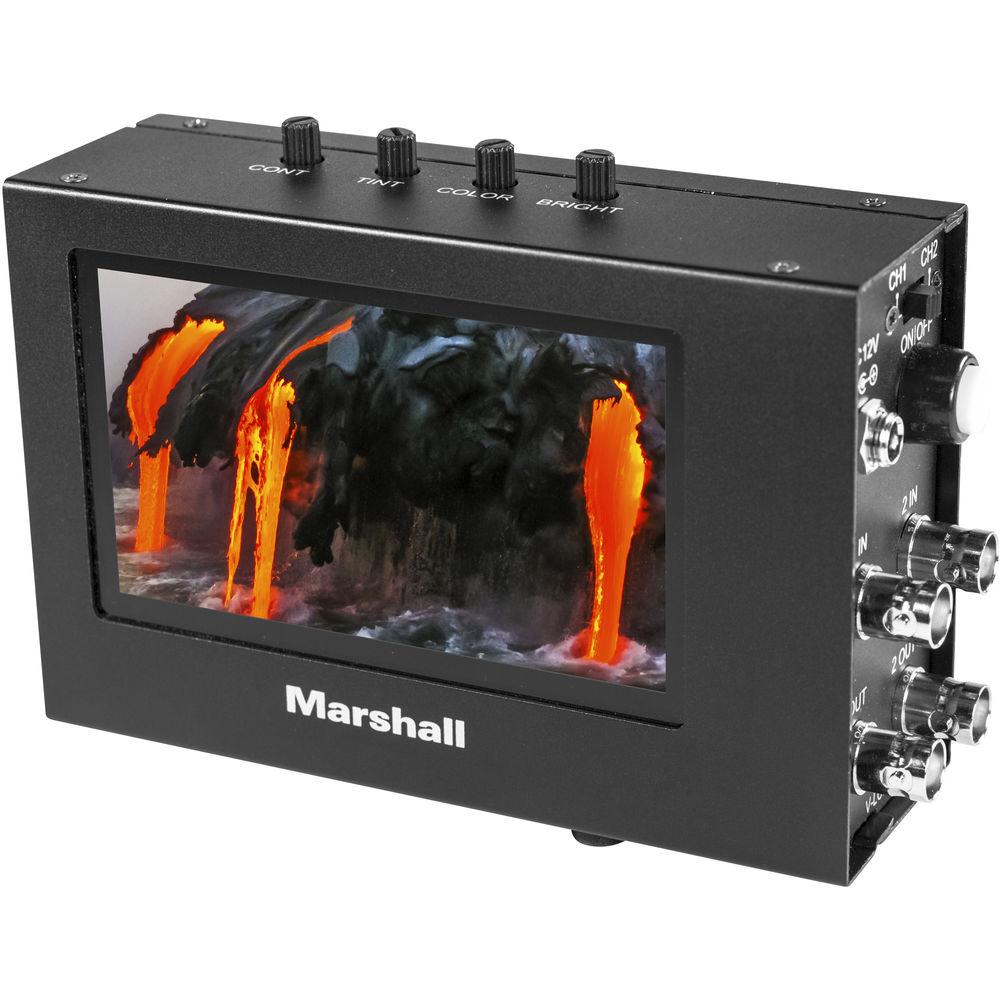

Product description The LCD4.3-PRO-R 4.3" Color TFT LCD Monitor from Marshall Electronics provides broadcast quality picture for color and B&W video applications. The monitor case is made from durable black anodized aluminum with protective anti-glare glass in front of LCD panel. With a slim (1.8") and lightweight (0.8 lb) design, it is suitable for field mobile and fixed monitoring applications. It features dual composite video inputs with NTSC/PAL auto recognition and built-in active video loop-through using professional grade BNC connectors. - Heavy-duty compact metal cabinet with black anodized finish
- 1/4" mount for ease of installation

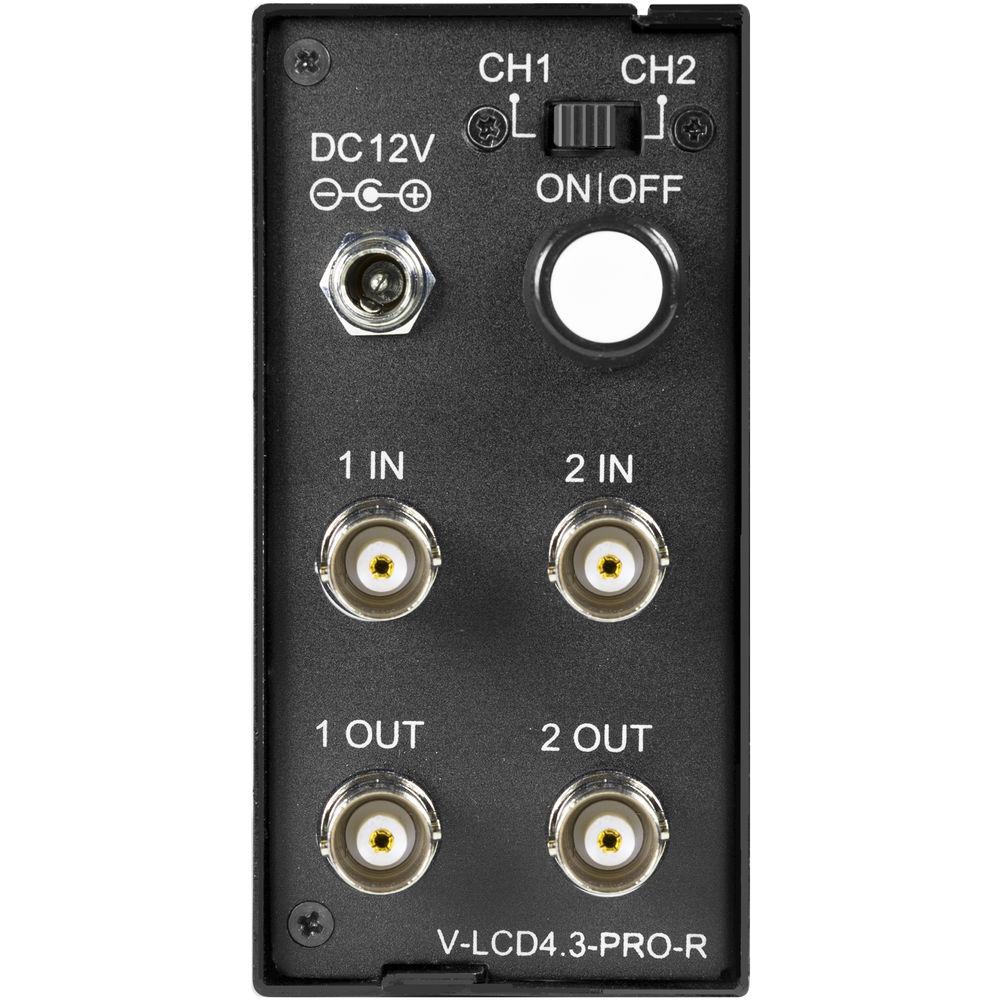

- Switchable dual video BNC inputs
- Features color, tint, contrast, and brightness controls
- Active loop-through for both video inputs
- Fast response (no streaking)
- NTSC/PAL auto recognition
UPC: 801813182002 In the Box Marshall Electronics LCD4.3-PRO-R 4.3" Color TFT LCD Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics LCD4.3-PRO-R 4.3" Color TFT LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-LCD4.3-PRO-R Specs | Inputs | Dual composite video inputs | | Display (Viewing Area) | 4.3" (10.9 cm) Active Matrix LCD | | Resolution (Pixel) | 480 x 3RGB x 272 | | Brightness | 500 cd/m2 | | Contrast | 500 | | Viewing Angle (CR≥10) | L/R/T/B: 70/70/50/70 | | Backlight Life | 20,000 hours | | Temperature | Operating: -4 to 122°F (-20 to 50°C)
Storage: -22 to 140°F (-30 to 60°C) | | System | NTSC/PAL auto detect | | Power Consumption | 12 VDC, 350 mA | | Recommended Power Supply | 12 V, 500 mA (not included) | | Dimensions | 5.5 x 3.6 x 1.8" (14.0 x 9.1 x 4.6 cm) | | Weight | 12.8 oz (363 g) |
