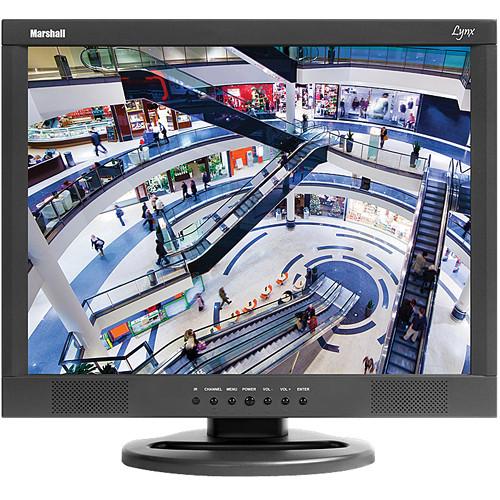

User Manual for Marshall Electronics M-LYNX-15-CM 15" A V LCD Monitor with Ceiling Mount Click to enlarge the picture
Contents of the user manual for the Marshall Electronics M-LYNX-15-CM 15" A V
- Product category: Surveillance Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Surveillance Monitors
|
User manual for the Marshall Electronics M-LYNX-15-CM 15" A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The M-LYNX-15-CM 15" A/V LCD Monitor with Ceiling Mount from Marshall Electronics is designed for commercial and industrial surveillance applications. It displays a 1024 x 768 resolution image and offers HDMI, VGA, and dual composite BNC inputs on the rear panel for connecting security cameras and other sources. A "Channel" button on the front panel allows you to toggle between the inputs while dual composite BNC outputs let you loop out the BNC signals to other local displays. The monitor also features an individual independent 3.5mm RCA audio input and output and built-in speakers.
The M-LYNX-15-CM uses advanced video technologies to provide an optimal image. These include 3D dynamic digital compensation, bandwidth auto compensation, auto-clock frequency phase correction, and a 3D comb filter to reduce video noise. The M-LYNX-15-CM comes with a ceiling mount and features a 75/100 VESA mounting pattern on the rear. - Key Features
-
- 15" LCD for commercial and industrial surveillance applications
- 1024 x 768 resolution
- HDMI, VGA, and dual composite BNC inputs
- "Channel" toggle button
- Dual composite BNC loop outputs
- 3.5mm RCA audio input/output
- Built-in speakers
- 3D dynamic digital compensation
- Bandwidth auto compensation
- Auto-clock frequency phase correction
- 3D comb filter
- Loss of input curtain
- Self-sensing
- Re-clocked/reshaped
- Input status display
In the Box Marshall Electronics M-LYNX-15-CM 15" A/V LCD Monitor with Ceiling Mount Ceiling Mount AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics M-LYNX-15-CM 15" A V LCD Monitor with Ceiling Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics M-Lynx-15-CM Specs | Display | 15" / 38 cm (diagonal) LCD with LED backlight | | Resolution | 1024 x 768 | | Inputs | 1 x HDMI
2 x composite BNC
1 x VGA
1 x 3.5 mm RCA audio | | Outputs | 2 x composite BNC loop outputs
1 x 3.5 mm RCA audio | | Aspect Ratio | 4:3 | | Brightness | 300 cd/m² | | Contrast | 450:1 | | Color Gamut | YUV, RGB | | Viewing Angles | 170/150° | | Video Standard | NTSC/PAL | | Speakers | Built-in | | Response Time | 8 ms | | Mount Type | VESA 75/100 | | Input Voltage | 100-230 VAC, 50-60 Hz | | Power Consumption | 32 W (max) | | Compliance | CE approved | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 14 x 11.7 x 2.6" / 36 x 30 x 7 cm | | Weight | 10 lb / 4.5 kg | | | | Package Weight | 17.35 lb | | Box Dimensions (LxWxH) | 18.0 x 16.3 x 8.0" |
