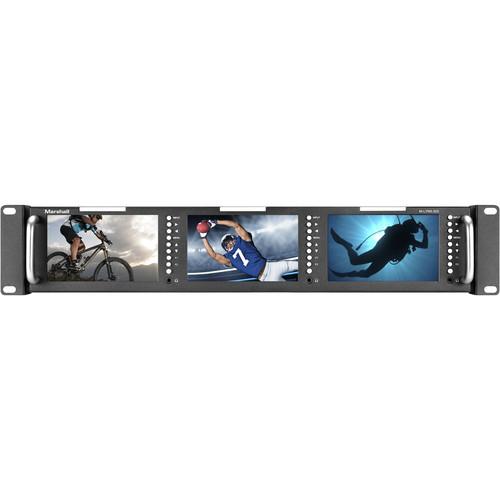

Product description Fitting into a 2 RU space and only a measly 1¾" thick, the Marshall Electronics M-LYNX-503 Rack-Mountable Triple 5" LCD Monitor Unit can still fit 3 separate 5" displays for monitoring separate feeds from either Composite, HDMI, or SDI inputs. Each video input has a loop output for daisy-chaining. Having 3 screens and tally connections in a compact chassis is useful in compact studio production or A/V integration where space is at a premium, or for confidence monitoring of essential video feeds. Audio from each feed can be monitored with headphone outputs, one for each screen. The integrated tilting rack ears allow for flexible monitor positioning for finding the optimal viewing angle. - Anti-glare coating rejects ambient light
- Front panel controls give access to all functions

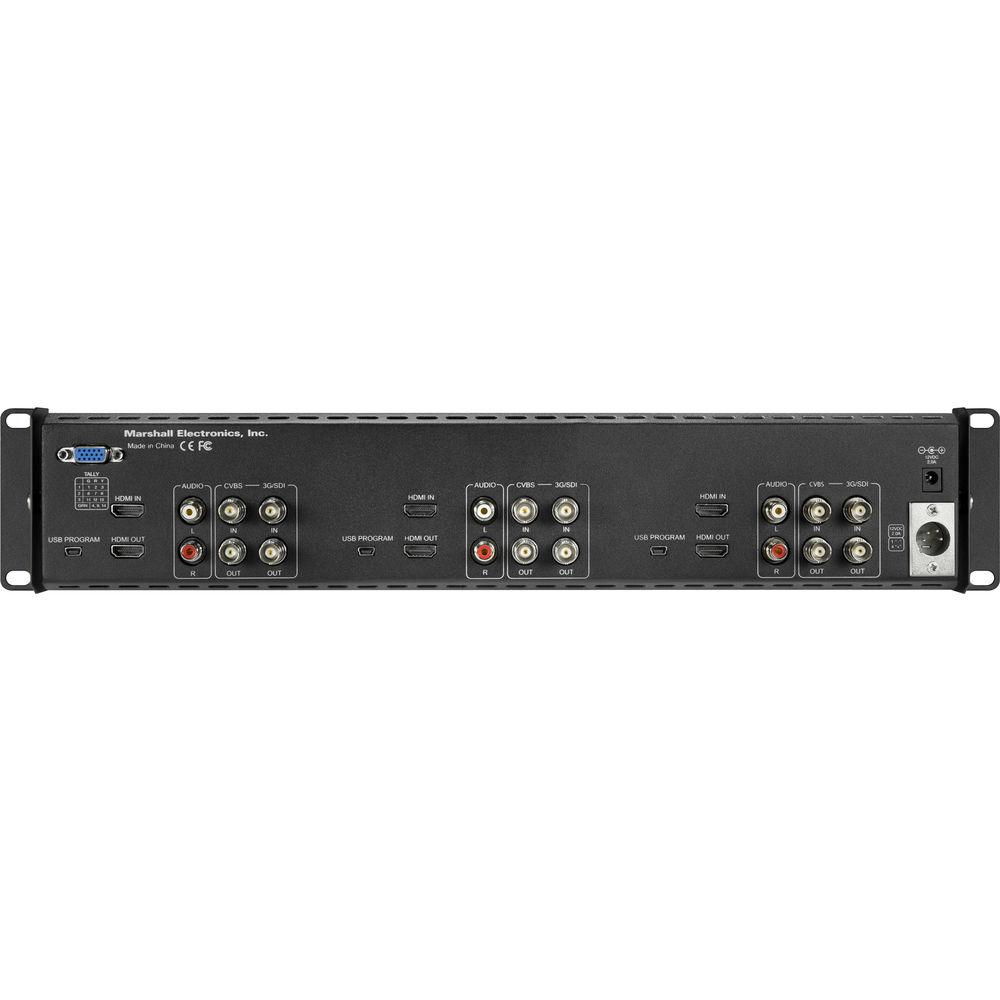

- Multiple inputs, all with loop-through connections: 3G-SDI (HD-SDI, SD-SDI), HDMI, Composite
- Three color tally lights (red, green, yellow)
- Safe area and center markers

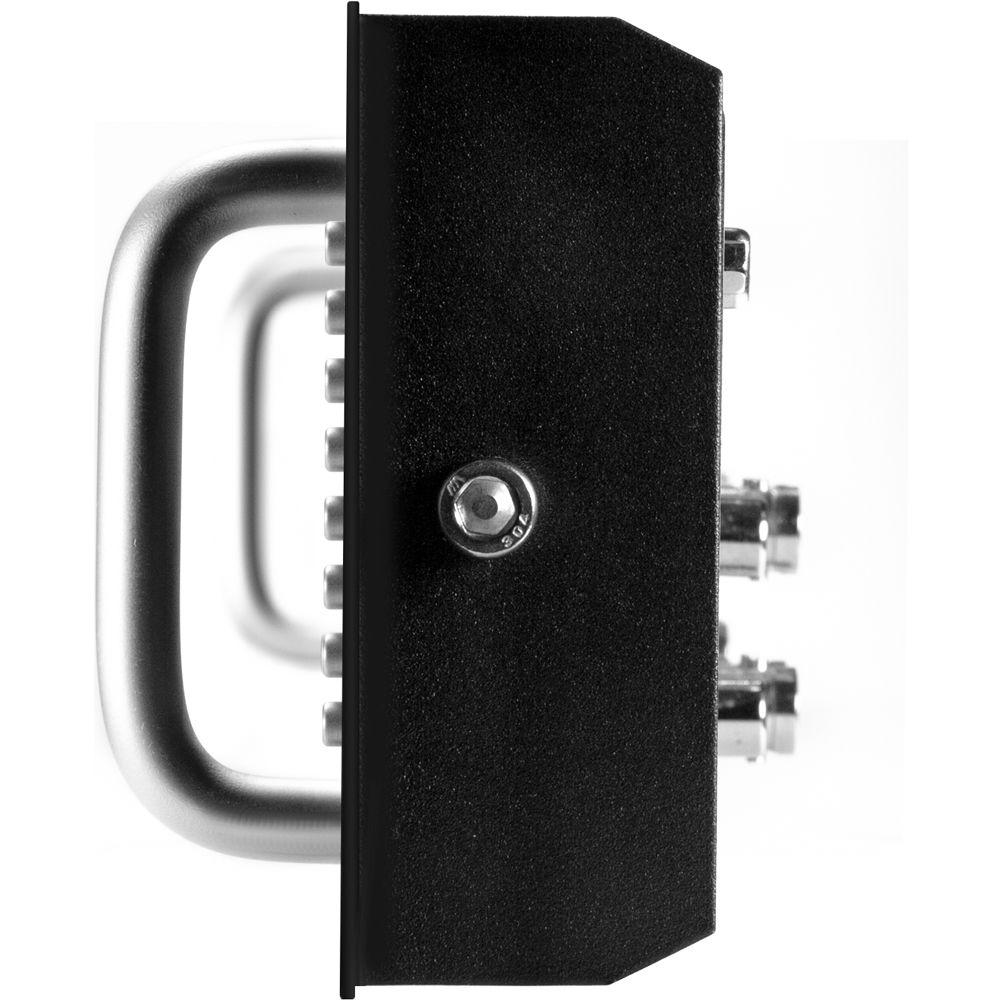

- Tilting mount; adjust for optimum viewing
- Headphone jack to monitor embedded stereo audio
- Firmware update via USB port
- Suitable for flypacks, control rooms, news vans
UPC: 801813179057 In the Box Marshall Electronics M-LYNX-503 Rack-Mountable Triple 5" LCD Monitor Unit Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics M-LYNX-503 Rack-Mountable Triple 5" LCD Monitor Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics M-LYNX-503 Specs | Number of Panels | 3 | | Panel Size | 5.0" (12.7 cm) | | Resolution | 800 x 480 RGB | | Aspect Ratio | 16:10 | | Brightness | 400 cd/m2 | | Contrast | 500:1 | | Finish | Anti-glare | | Viewing Angles | 70°/70°/50°/70° | | Backlight Type | LED | | Backlight Life | 20,000 hrs (typical) | | Video Formats | SDI:
1080p23.98/24/25/29.97/50/59.94/60
1080PsF23.98/24
1080i50/59.94/60
720p50/59.94/60
NTSC
PAL
HDMI:
1080p23.98/24/25/29.97/50/59.94/60
1080i50/59.94/60
720p50/59.94/60
NTSC
PAL
Composite:
NTSC
PAL | | Tally | Three color tally via 9-pin D-Sub connector | | Markers | On-screen safe area and center mark | | Focus Assist | Yes | | Image Flip | H, V, and HV | | Video Input Connectors | 1 Per Screen: 3GSDI with loop- through; HDMI with loop-through; CVBS composite with loop- through | | Audio Inputs | De-Embedded from SDI; de-Embedded from HDMI | | RCA | 2 x RCA (for composite video input) | | Audio Outputs | 3 x Headphone jack (3.5 mm mini-phone) | | Power Input | 12 VDC; 2 A | | Connectors | 0.2" (5.5 mm) coaxial and 12-pin XLR | | Dimensions | 19.12 x 5.14 x 1.75" (48.56 x 13.05 x 4.45 cm) including connectors | | Weight | 3.25 lb (1.48 kg) | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 21.1 x 6.8 x 3.7" |
