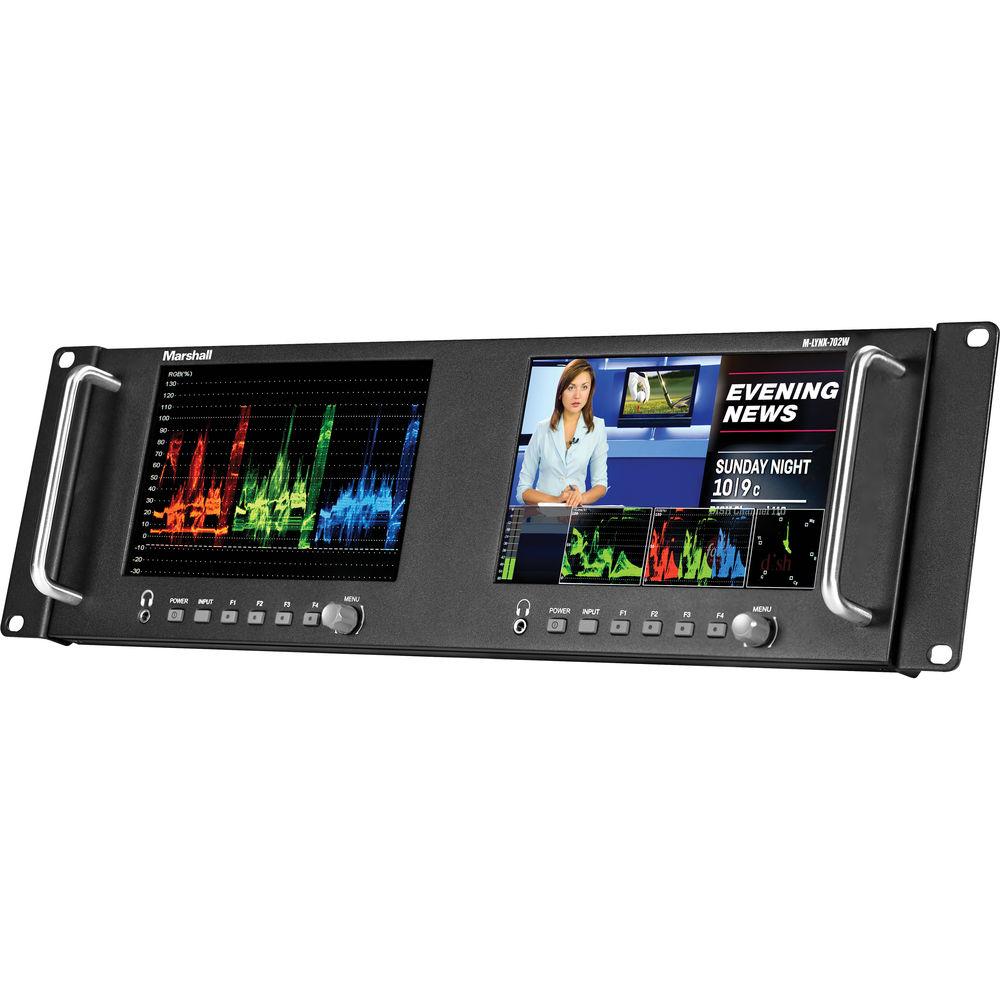

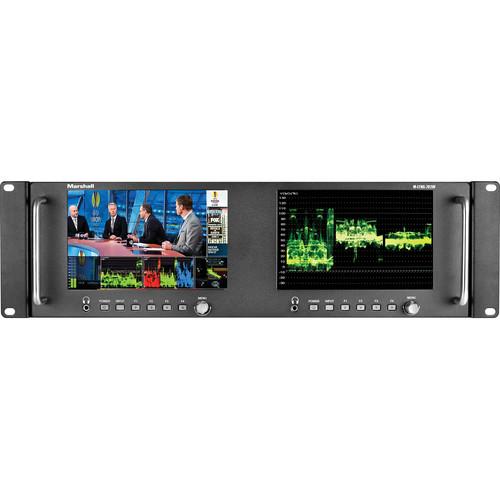

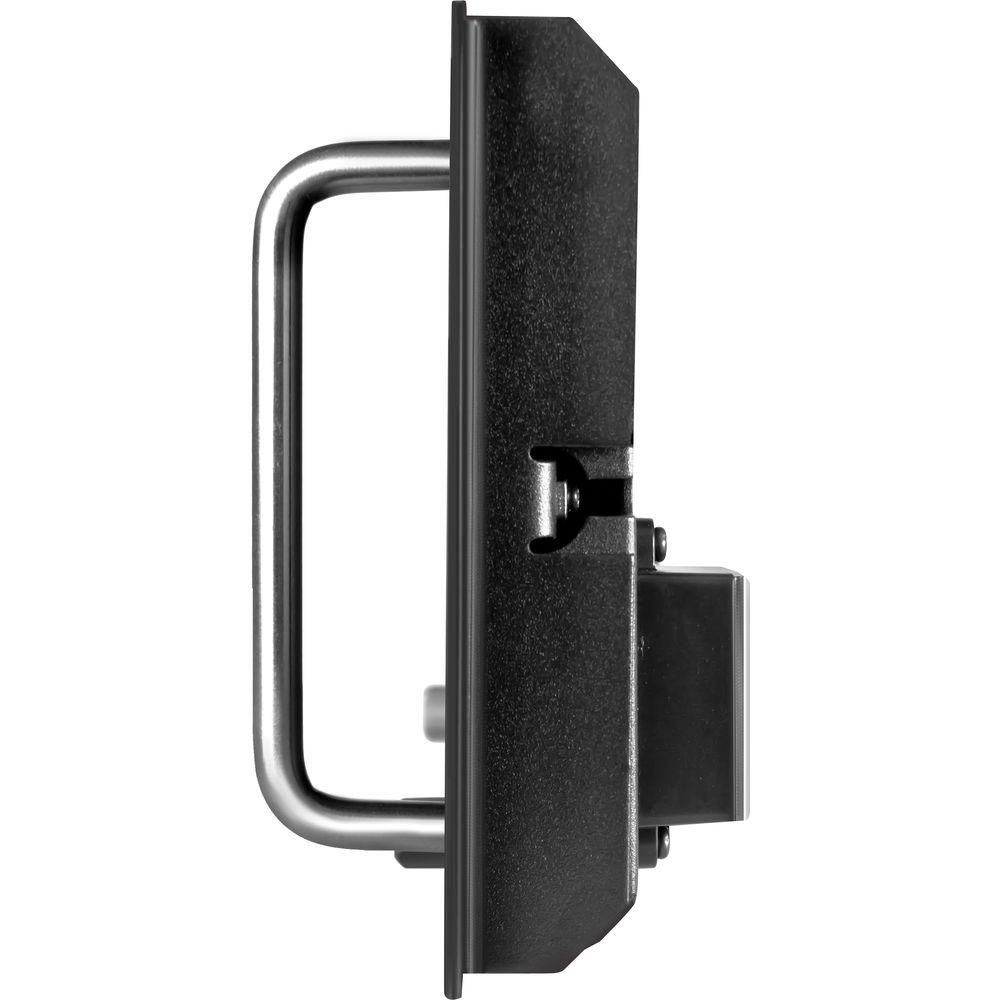

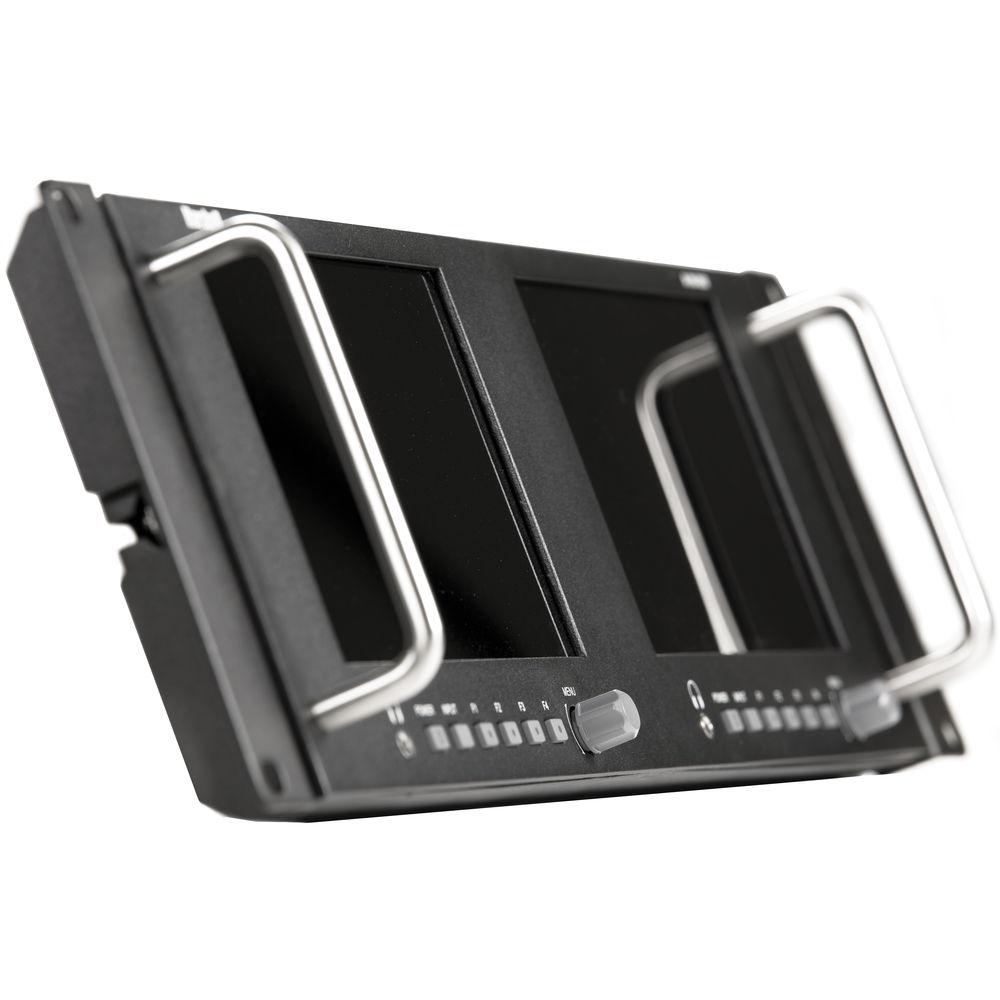

Product description The Marshall Electronics M-LYNX-702 Dual 7" 3G-SDI Rackmount Monitor features two 7" LCD displays with 1200 x 800 resolution each housed in a single, 3RU rackmoutable non-tilting frame. It features 3G-SDI, HDMI, and analog connectivity for both HD and SD video sources. It is designed to be used in a multitude of production, surveillance, or industrial applications. Possible applications include fly-packs, control rooms, routing rooms, live switching, or anywhere else individual video feeds require their own dedicated monitor.
The LCD panels in the M-LYNX-702W have a 400 cd/m² brightness, a 800:1 contrast ratio, and a viewing angle of 178°°. With a 1200 x 800 resolution, they feature a native aspect ratio of 16:9.

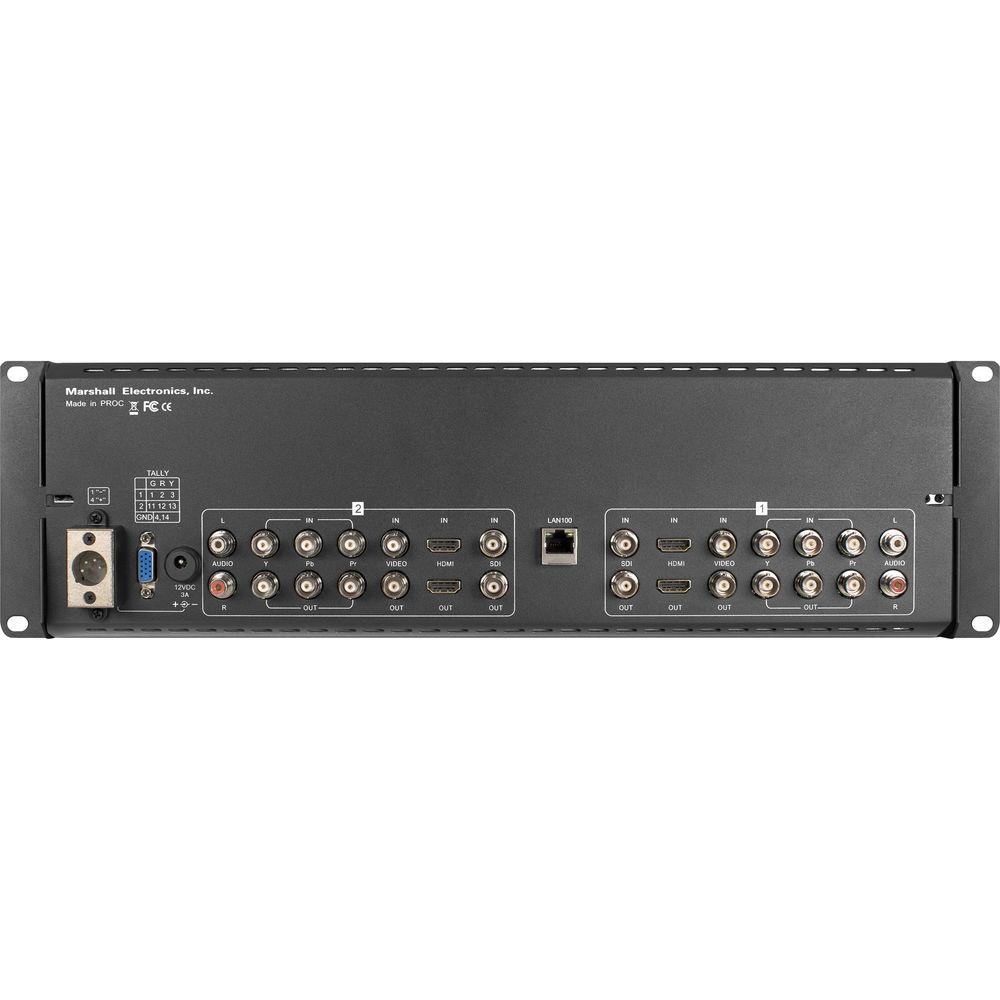

Each display in the M-LYNX-702W features a 3G-SDI input with loop-out, an HDMI input with loop out, a component input with loop-out, a composite input with loop-out, and a stereo analog audio input. In addition, there is a headphone jack on the front panel below each display for local audio monitoring. Finally, a GPI port allows the display to be connected to tally systems as well as wired remote controls.
The M-LYNX-702 is designed for installation in standard 19" racks, and has a rack height of 3RU. It includes a 12V power supply and can also be powered from 12 VDC sources via either 4-pin XLR or a 5.5mm barrel connector. A single power supply powers both LCD panels. - Selectable, user-defined markers
- 1:1 pixel mapping (pixel-to-pixel)
- View individual color channels
- Built-in red, blue, and green LED tally indicators
- Selectable English or Spanish on screen display
- Dual mode, full screen or compact overlay Display Luminance waveform, Parade waveform (RGB or YPbPr), Vectorscope, Histogram, Audio Bars and Audio Phase Meter
UPC: 801813173345 In the Box Marshall Electronics M-LYNX-702W Dual 7" Loop Through 3G-SDI Rackmount Monitor with Loop Through HDMI Input/Output 12V Power Supply Limited 1-Year Warranty, Extendable to 2-Year with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics M-LYNX-702W Dual 7" Loop Through 3G-SDI Rackmount Monitor with Loop Through HDMI Input Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics M-LYNX-702 Specs | | | Panel Type | TFT LCD | | Display Size | 7.0" / 17.8 cm | | Active Area | 6 x 3.5" / 153.6 x 90 mm | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Image Controls | Blue Only, Focus Peaking, Pixel-to-Pixel Zoom, Screen Markers, Underscan | | | | Video | 2 x BNC (3G-SDI) Output
2 x HDMI Type A Output
2 x 3BNC (Component) Output
2 x BNC (Composite) Output
2 x BNC (3G-SDI) Input
2 x HDMI Type A Input
2 x 3BNC (Component) Input
2 x BNC (Composite) Input | | Embedded Audio | SDI | | Audio | 1 x RCA Input
2 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x 5.5 mm Barrel Input
1 x 4-Pin XLR Input | | Other I/O | 1 x Tally (DE-9/DB-9)
2 x Mini-USB | | Card Slot | None | | | | DC Input Power | 12 VDC | | Battery Type | None | | | | Rack Form Factor | 3 RU | | Mounting | 4 x 1/4"-20 Female | | | | Dimensions (W x H x D) | 19 x 5 x 1" / 483 x 127 x 25 mm | | Weight | 5.8 lb / 2.65 kg | | | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 24.3 x 7.2 x 4.6" |
