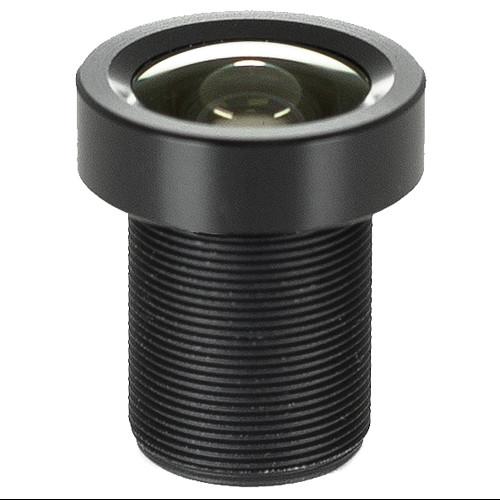

User Manual for Marshall Electronics M12-Mount 4.0mm Fixed Focal MP Miniature Lens Click to enlarge the picture
Contents of the user manual for the Marshall Electronics M12-Mount 4.0mm Fixed Focal
- Product category: Lenses Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Lenses
|
User manual for the Marshall Electronics M12-Mount 4.0mm Fixed Focal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The M12-Mount 4.0mm Fixed Focal MP Miniature Lens from Marshall Electronics is designed for use with cameras featuring a 1/3" sensor size, as well as select OmniVision and Sony camera models. The lens compact design and fixed focus lens position is ideal for 2MP optical design performance in environments with low light levels. Constructed from anodized aluminum, the camera is RoHS compliant. - 4.0mm focal length with f/2.0 aperture
- 400 to 1000nm corrected near UV to near IR optical performance
- Fixed lens focus position throughout near UV, visible, near IR 1000nm
- Suitable miniature lens solution for covert day and night camera applications
- 2MP optical design performance along with low distortion
- Anodized aluminum housing
UPC: 801813167580 Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics M12-Mount 4.0mm Fixed Focal MP Miniature Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-4704.0-2MP-VIS-IR Specs | Lens Mount | M12 | | Sensor Compatibility | 1/2.7", 1/2.8" CMOS (3.2 MP) | | Focal Length | 4mm | | Back Focal Length | 7.2mm | | Aperture | f/2 to 0 | | Angle of View | 1/2.7" Sensor
Horizontal: 87.7°
Vertical: 48°
Diagonal: 101.7°
1/2.8" Sensor
Horizontal: 77.4°
Vertical: 57°
Diagonal: 98.1° | | Iris Type | Fixed | | IR Corrected | Yes | | Certifications | RoHS, as per Manufacturer | | Dimensions (D x L) | 0.8 x 0.7" / 20.0 x 17.0 mm | | Weight | 0.2 oz / 7.1 g | | | | Package Weight | 0.015 lb | | Box Dimensions (LxWxH) | 1.45 x 0.95 x 0.7" |
