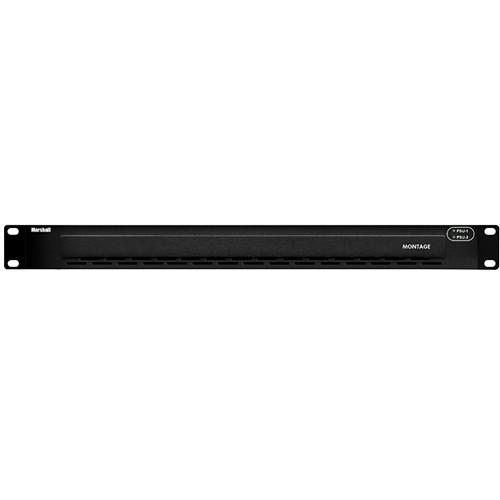

Product description The Marshal Electronics MMV-XXI-B Modular Multi-Viewer System includes 4 HDSDI inputs and 1 HDSDI output. It supports up to 16 input signals. One output shares all the signal sources with the other. Signals can be freely appointed to any output for display. Furthermore, any video channel can be directly and simply moved from one screen to another screen in real time.
The HDSDI output interface is provided on each output card. The HDSDI format is up to 1080p 60. This equipment incorporates the MMV-SDHD input card (4 auto-sensing HD/SD inputs),
The Multi-View Display System features high-quality, multi-format input, flexible, and customizable functions, remote panel, audio monitoring, waveform display, real-time monitoring and voice alarm warning, and dynamic UMD and tally from routers. It can be widely used in the studio, broadcasting room, general control center, and production editing studio. The flexible combination and feature-rich platform make it suitable for many applications where video/audio monitoring and displays are required. - Provides high-quality output with flexible configuration
- Offers the MMV-SDHD: HD/SD auto-sensing input card
- Different multi-viewer display configuration depending on the number and type of input card in 1RU frame
- Input displays on either output using the flexible configuration panel on the internal Web server
- Multi-format input combinations can be configured
- Flexible output options: 4:3, 16.9, or customized aspect ratio
- Editable dual program UMD and 4-channel audio meters display
- Several types of timers which include air timer, countdown timer, analog clock timer, and digital clock timer
- Mark key signal(s) to find in a complicated layout
- Supports user-defined border color in each channel separately or ability to cancel border display
- Dynamic UMDs and tally from routers and switches via RS232 interface
- Supports format display of input signal and AFD information display
- Video/audio auto detection and alarming: video loss, video frozen, video black, audio silence, and audio overload with high rate of accuracy
- Two alarm forms: text alarm and icon alarm
- Supports customized layout presets for different applications, such as studio, OB van, production room, and more
- Standard 1RU frame with dual power supply
