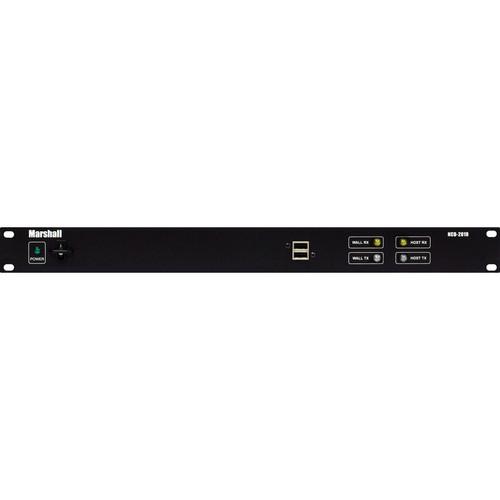

User Manual for Marshall Electronics NCB-2010 In-Monitor Display Network Control Box Click to enlarge the picture
Contents of the user manual for the Marshall Electronics NCB-2010 In-Monitor Display Network
- Product category: Monitor Accessories Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Monitor Accessories
|
User manual for the Marshall Electronics NCB-2010 In-Monitor Display Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall Electronics NCB-2010 In-Monitor Display (IMD) Network Control Box uses
Under-Monitor Display Protocols such as Image Video, TSL, and Marshall for video processing and displays on the IMD-capable monitors. It allows for complete control of monitor functions such as contrast, color, curtain color, and ratio. In addition, it supports control of the monitors individually, by group, or on a large scale.
With support for any TCP/IP 10/100 Ethernet connection, the NCB-2010 network control box can be operated via a web browser (that allows direct access to OSD and display functionality and control) without any special applications. - Uses Under-Monitor Display Protocols such as Image Video, TSL, and Marshall, and displays on the IMD-capable monitors
- Provides complete control of monitor functions such as contrast, color, curtain color, and ratio
- Supports control of the monitors individually, by group, or on a large scale
- Supports any TCP/IP 10/100 Ethernet connection
- Can be operated via a web browser that allows direct access to OSD and display functionality and control
In the Box Marshall Electronics NCB-2010 In-Monitor Display (IMD) Network Control Box Limited 1-Year Warranty, Extends to 2 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics NCB-2010 In-Monitor Display Network Control Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics NCB-2010 Specs | Panel | Max LCD panel control (per NCB): 512
Max LCD panel per port: 128 | | Ports | RJ-45 (10/100 compatible) x 1
RS-485 control port x 1 (IN)
RS-485 x 4 (OUT) | | Protocols | Image Video, TSL, Marshall | | Cable | Max cable run (RS-485): 2000' (609.6m) | | Dimensions | 18.96 x 1.72 x 8.37" (481.584 x 43.688 x 212.598 mm) | | Weight | 5.5lb (2.49kg) | | Power Consumption | 50W | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 28.0 x 18.0 x 9.0" |
