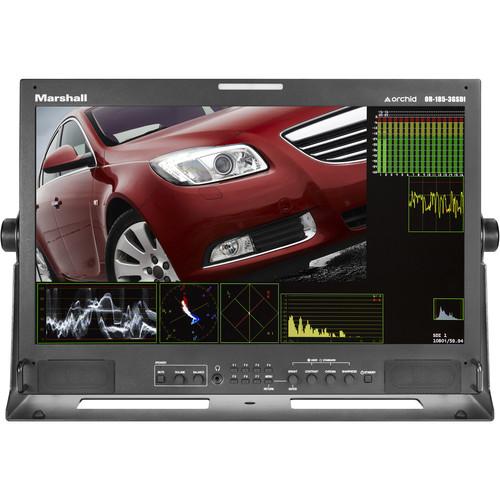

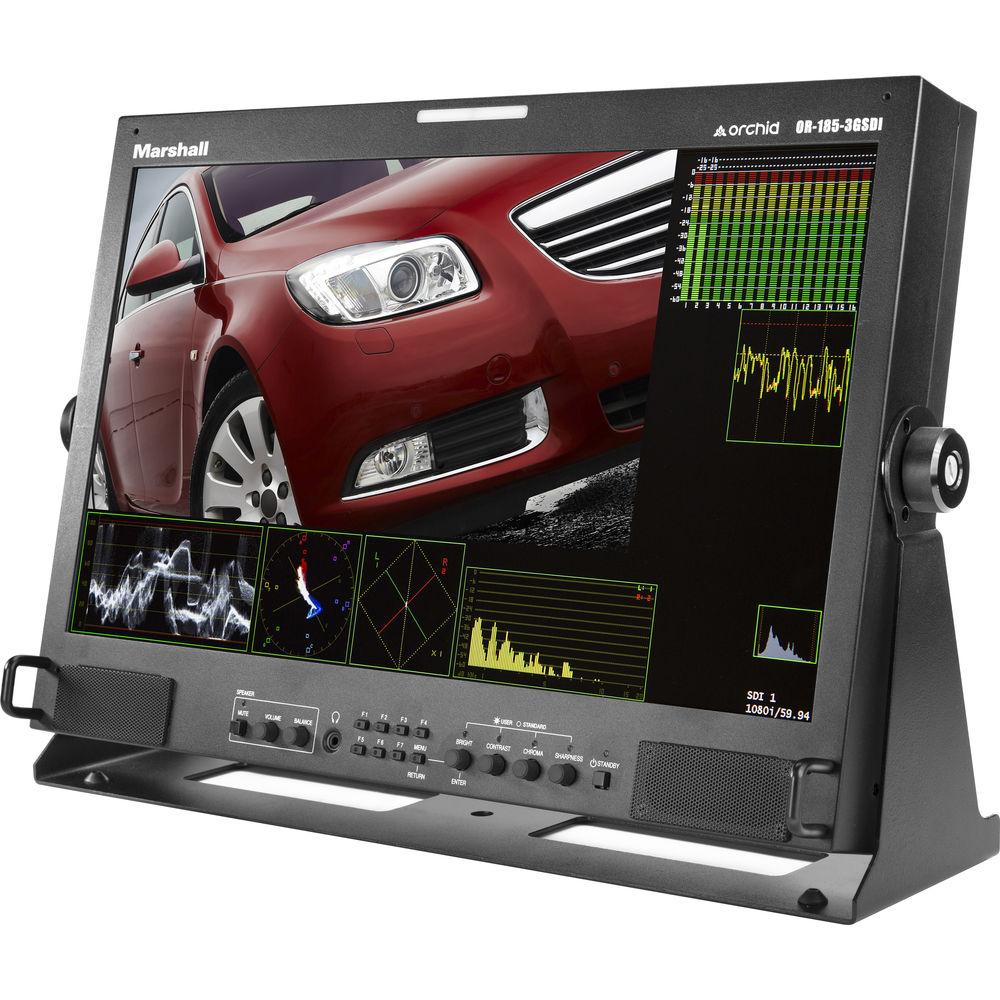

Product description The OR-185-3GSDI Orchid 18.5" 3G LCD Master Confidence Monitor from Marshall is a standalone or rack-mountable (with optional kit) monitor with dual, auto-sensing 3G-SDI inputs, 300 cd/m² of brightness, and a contrast ratio of 1000:1. Supporting HD resolutions up to 1080p60, this reliable monitor provides the display tools required for daily studio, editing, and transfer-house use. Its range of analytical tools include a waveform monitor, color vectorscope, clip guide color gamut monitoring, histogram, and 3D monitoring functions.This LCD monitor features seven user-assignable function keys and four knobs for navigating your settings. Rack-mountable using a separately available kit, the OR-185-3GSDI Orchid 18.5" also functions as a portable standalone display. Ergonomic touches include a built-in carrying handle and a tilting stand. Additional display features include tri-color tally, false color mapping, color peaking, 3D review, anaglyph 3D views, and side-by-side 3D.On the audio side, the OR-185-3GSDI Orchid 18.5" monitor sports front-panel stereo speakers. Its audio-level display provides peak hold, numerical indicators, audio-metering data, and channel-loss alerts. Up to 16 channels can be de-embedded and displayed across 64-segment tri-color meters with user-adjustable reference levels. - Features
-
- Standalone or rack-mountable (with optional kit) LCD monitor with dual, auto-sensing 3G-SDI inputs
- Supports HD/SD video resolutions up to 4:4:4 12-bit 1080p30 and 4:2:2 10-bit 1080p60
- Brightness of 300 cd/m² and contrast ratio of 1000:1
- Waveform monitor, color vectorscope, histogram, and clip guide color gamut monitor
- Tri-color tally, red/blue/green/mono channel view, false color mapping, and color peaking
- Seven user-assignable function keys and four knobs for easy menu navigation
- 16 tri-color audio meters (64-segment) with user-adjustable reference levels
- 3D functions include anaglyph 3D displays, 3D review, and side-by-side 3D
UPC: 801813188318 In the Box Marshall Electronics OR-185-3GSDI Orchid 18.5" LCD Master Confidence Monitor AC Power Cord Limited 1-Year Warranty, Extendable to 2 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics OR-185-3GSDI Orchid 18.5" LCD Master Confidence Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics OR-185 Specs | | | Type | TFT-LCD | | Display Area | 18.5" / 47 cm | | Resolution | 1920 x 1080 | | Pixel Pitch (H x V) | 0.213 x 0.213 mm | | Color Depth | 16.7 million (8-bit) | | Brightness | 300 cd/m² | | Contrast Ratio | 1000:1 | | | | Input Connectors | 3G/HD/SD-SDI: 2 x BNC | | Output Connector | 3G/HD/SD-SDI: 1 x BNC (loop-through) | | Standards | SMPTE-424M: 3G (2.97 GB/s)
SMPTE-292: HD (1.485 GB/s)
SMPTE-259M: SD (270 MB/s) | | Supported Video Resolutions | SMPTE 425M-AB
YCbCr, 4:2:2, 10-Bit:
1080p: 60/59.94/50
YCbCr, 4:2:2, 12-Bit:
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
YCbCr (RGB) 4:4:4, 10-Bit:
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
YCbCr (RGB) 4:4:4, 12-Bit:
2048 x 1080p: 24
2048 x 1080PsF: 24
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
YCbCr (RGBA) 4:4:4:4, 10-Bit:
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
SMPTE 274M
YCbCr, 4:2:2, 10-Bit:
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
SMPTE 296M
YCbCr, 4:2:2, 10-Bit:
720p: 60/59.94/50/30/29.97/25/24/23.98
SMPTE 125M
525i
480i: 60 (NTSC)
ITU-R BT.601
625i

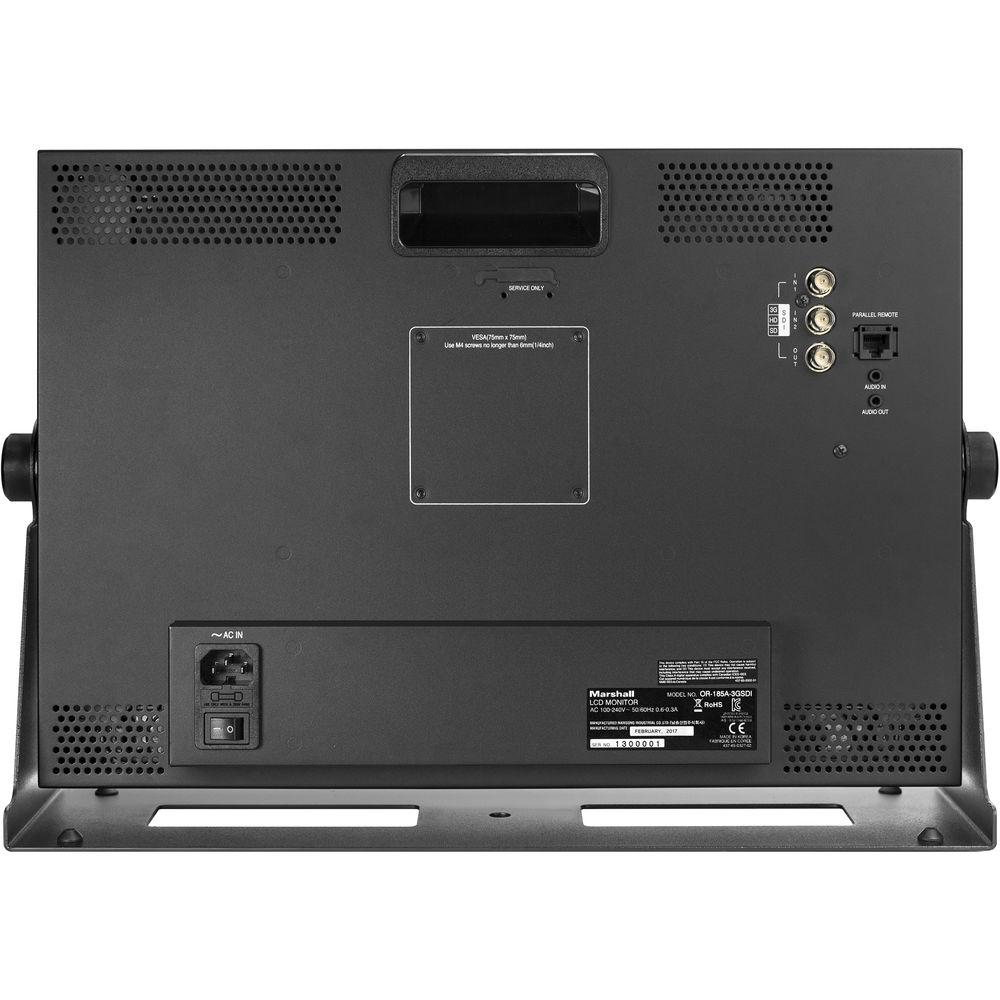

575i: 50 (PAL) | | | | Audio Input | Rear: 1 x 3.5 mm stereo jack | | Audio Output | Rear: 1 x 3.5 mm stereo jack, +4 dBu (1.228 mVrms) | | Headphone Output | Front: 1 x 3.5 mm stereo jack | | Speaker | 3 W stereo | | | | Power Input | 100~240 VAC, 50~60 Hz
24 VDC | | Power Consumption (Approximate) | 40 W (24 V, 1.5 A) | | | | Operating Temperature & Humidity | 32 to 104°F / 0 to 40°C
30~85% (non-condensing) | | Storage Temperature & Humidity | -4 to 140°F / -20 to 60°C
0~90% (non-condensing) | | | | Dimensions (W x D x H) | 17.4 x 12.1 x 3.1" / 44.2 x 30.7 x 8.0 cm | | Weight | 33 lb / 15 kg |
