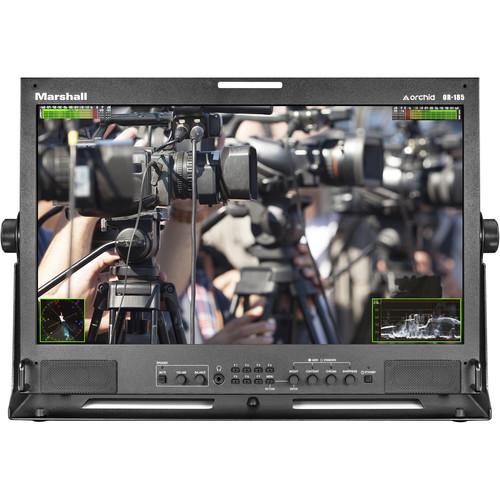

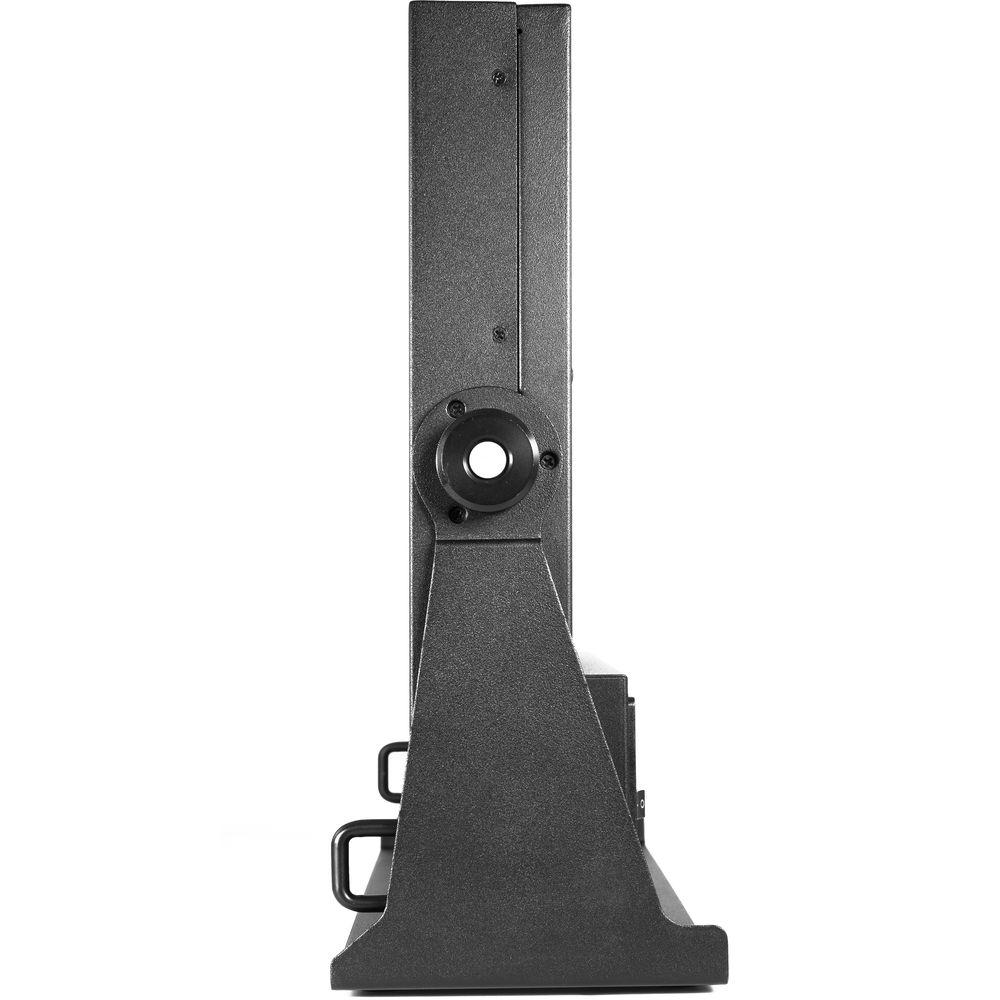

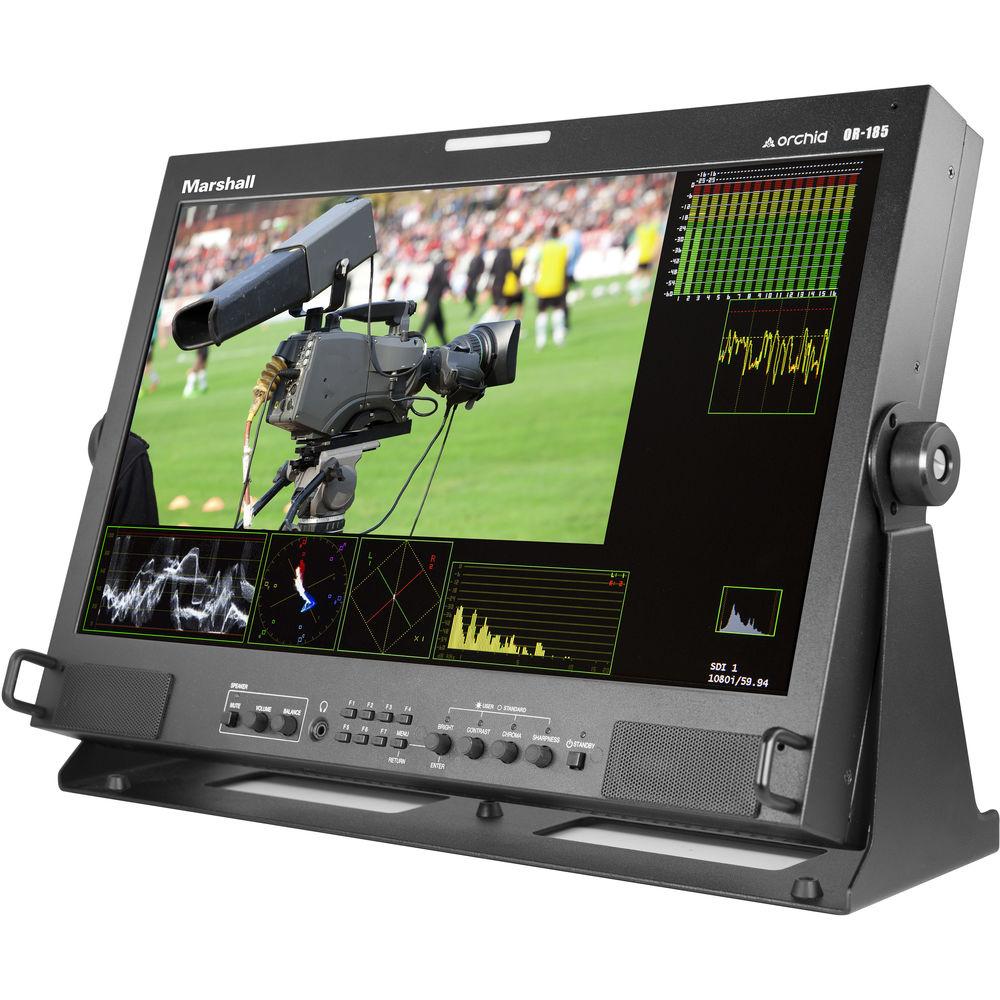

Product description The OR-185-AFHD Orchid 18.5" LCD Master Confidence Monitor from Marshall is a stand-alone or rack-mountable (with optional kit) monitor with dual, auto-sensing 3G-SDI inputs, DVI-I, VGA, composite, component, and analog inputs plus a 3G-SDI loopout. This broadcast monitor features 300 cd/m² of brightness, and a contrast ratio of 1000:1. Supporting HD resolutions up to 1080p60, this reliable monitor provides the display tools required for daily studio, editing, and transfer-house use. Its range of analytical tools include a waveform monitor, color vectorscope, clip guide color gamut monitoring, false-color mapping and 3D monitoring functions. This LCD monitor features seven user-assignable function keys and four knobs for navigating your settings. Rack-mountable using the optional OR-181RMK kit, the OR-185-AFHD Orchid 18.5" also functions as a portable standalone display. Ergonomic touches include a built-in carrying handle and a tilting stand. Additional display features include seven user-assignable function keys, tri-color tally, color peaking, 3D review, anaglyph 3D views, and side-by-side 3D. On the audio side, the OR-185-AFHD Orchid 18.5" monitor sports front-panel stereo speakers, 3.5mm line input/output, and a 3.5mm headphone output. Its audio-level display provides peak hold, numerical indicators, audio-metering data, and channel-loss alerts. Up to 16 channels can be de-embedded and displayed across 64-segment tri-color meters with user-adjustable reference levels. Features -
- 18.5" stand-alone LCD monitor; rack-mountable with optional kit
- Dual, auto-sensing 3G-SDI inputs; DVI-I, VGA, and analog inputs
- Supports HD/SD video resolutions up to 4:4:4 12-bit 1080p30 and 4:2:2 10-bit 1080p60
- Brightness of 300 cd/m² and contrast ratio of 1000:1
- Waveform monitor, color vectorscope, and clip guide color gamut monitor
- Tri-color tally, red/blue/green/mono channel view, false-color mapping, and color peaking
- Default white balance of 6500K
- Seven user-assignable function keys and four knobs for easy menu navigation
- 16 tri-color audio meters (64-segment) with user-adjustable reference levels
- 3D functions include anaglyph 3D displays, 3D review, and side-by-side 3D
UPC: 801813188738 In the Box Marshall Electronics OR-185-AFHD Orchid 18.5" LCD Monitor with 3G-SDI/Digital/Analog Inputs AC Power Cord Limited 1-Year Warranty, Extendable to 2 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics OR-185-AFHD Orchid 18.5" LCD Monitor with 3G-SDI Digital Analog Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

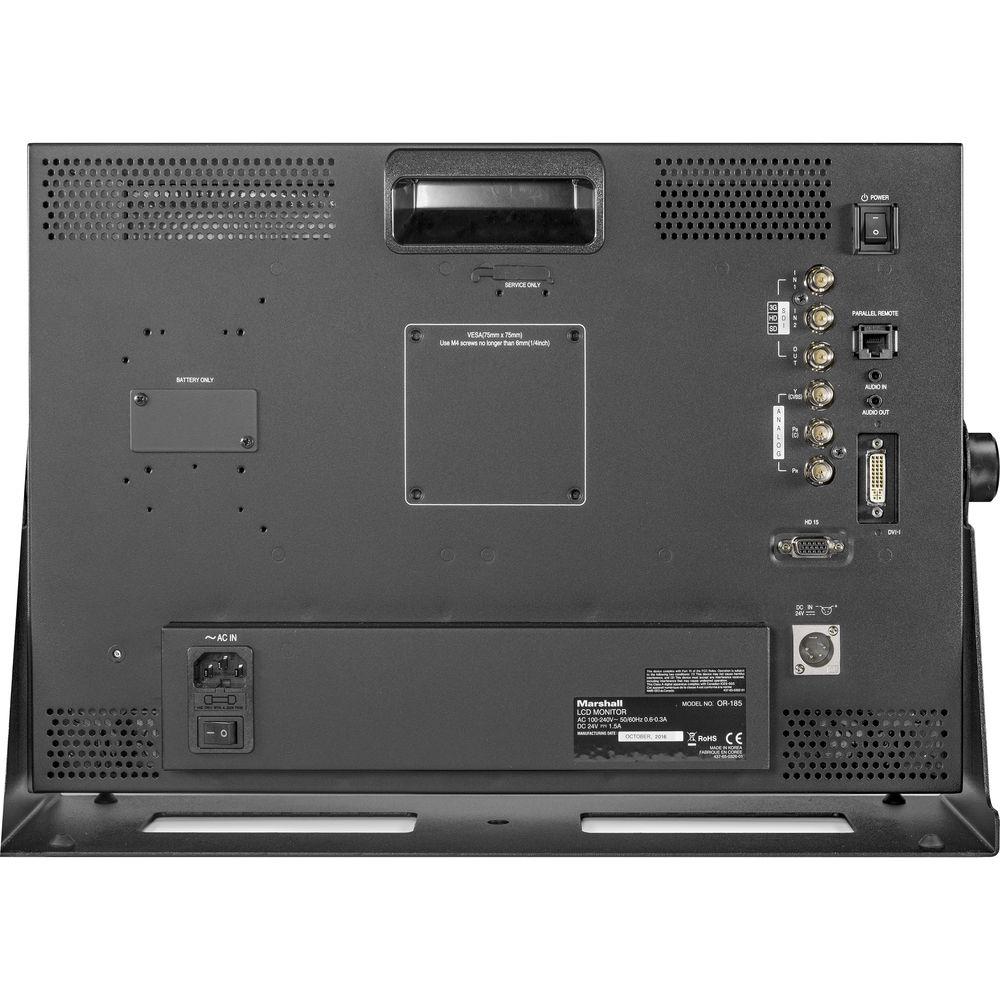

Technical parametersMarshall Electronics OR-185 Specs | | | Panel Type | TFT LCD | | Display Size | 18.5" / 47.0 cm | | Active Area | 16.10 x 9.07" / 408.96 x 230.4 mm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Touchscreen | No | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dot Pitch | 0.213 x 0.213 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Pixels Per Inch (ppi) | 2 ppi | | Real-Time LUT Monitoring | No | | Image Controls | False Color, Focus Peaking, Histogram, R/G/B/Chroma Only, Screen Markers, Waveform, Vectorscope | | | | Video | 2 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Output
1 x 3BNC (Component) Input
1 x DVI-I (S-Video) Input
1 x DE-15/DB-15 (VGA) Input | | HDCP Support | No | | Embedded Audio | SDI: 16-Channel | | Audio | 1 x 3.5 mm Line Input
1 x 3.5 mm Line Output
1 x 3.5 mm Headphone Output | | Built-In Speaker | 2 x 3 W | | Other I/O | 1 x Parallel (RJ45) | | Card Slot | None | | | | Video Format | SDI (10-Bit 4:2:2 YCC)
1080p: 60/50
SDI (12-Bit 4:2:2 YCC)
1080p: 30/25/24
1080PsF: 30/25/24
1080i: 60/50
SDI (10-Bit 4:4:4 RGB, YCC)
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
SDI (12-Bit 4:4:4 RGB, YCC)
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
DCI 2K: 24
SDI (10-Bit 4:4:4 RGB, YCC)
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
SDI (10-Bit 4:2:2 YCC)
1080p: 30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
SDI (10-Bit 4:2:2 YCC)
720p: 60/59.94/50/30/29.97/25/24/23.98
SDI
NTSC: 60
PAL: 50
Component
1080p
1080i
720p
576p
480p
DVI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
NTSC: 60
PAL: 50
480p: 60/59.94 | | PC Resolutions | 1280 x 1024 at 60 Hz
1024 x 768 at 60 Hz
800 x 600 at 60 Hz
640 x 480 at 60 Hz | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC at 1.7 A | | Battery Type | None | | Power Consumption | 40 W | | | | Operating Humidity | 30 to 85% | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Humidity | 0 to 90% | | Storage Temperature | 14 to 140°F / -10 to 60°C | | | | Dimensions (W x H x D) | 17.4 x 12.09 x 3.15" / 442 x 307 x 80 mm | | Weight | 33 lb / 14.97 kg |
