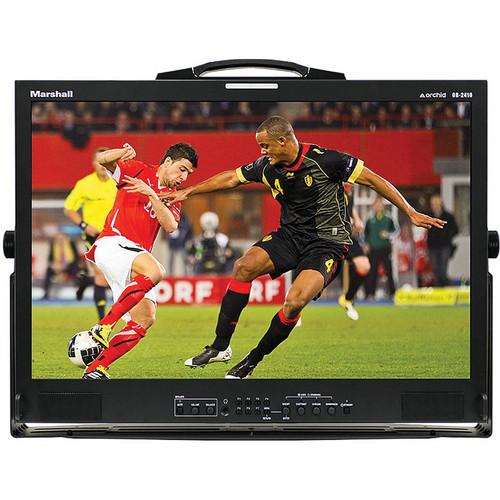

User Manual for Marshall Electronics OR-2410 24" Grade One Performance Standalone Monitor Click to enlarge the picture
Contents of the user manual for the Marshall Electronics OR-2410 24" Grade One
- Product category: Production Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Production Monitors
|
User manual for the Marshall Electronics OR-2410 24" Grade One contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The OR-2410 24" Grade One Performance Standalone Monitor from Marshall Electronics features extensive audio and video monitoring tools, making it an ideal choice for control rooms and production environments. The monitor's built-in audio and video tools streamline the monitoring process and save valuable desk/equipment rack space. Additionally, the monitor can extract up to 16 channels of embedded audio and output any 2 of them to the unit's built-in stereo speakers Key Features -
- Supports most standard video formats
- High Resolution (1920x1200) LCD panel
- Real-time Waveform Monitor
- Real-time Color Vectorscope
- Real-time 16CH Audio Level Meter
- Real-time Histogram
- Real-time Video Analytics
- Broadcast Tally System
- 3G-SDI Input and Active Loop-Through
- 3D Review
- False Color Filter
- Peaking Filter
- Time Code (VITC/LTC)
- Red/Blue/Green/Mono Channel
- Accurate White Balance
- Accurate Gamma
- Precision Gamma Calibration
- ClipGuide
- H/V Delay
- Aspect Setting
- Various Markers
- Scan Setting
- On-screen Menu Display
- External Remote Control
- Stereo Speakers
Waveform Monitor - The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in various aspect ratios, positions, and transparency options. The Waveform Monitor not only monitors luminance, but can also warn the user for out-of-range conditions such as overexposure or "blacker-than-black" errors with fully user-adjustable warning limits
Real-Time Color Vectorscope - The built-in Vectorscope allows users to monitor color gamut range in real time. It displays in full color and can also be displayed in various sizes, positions, and transparency options. The Vectorscope has adjustable gain from 1 to 5x
Clip Guide - The Clip Guide function operates with both the Waveform display and Monochrome/Color picture display. Both the upper and lower Clip Guide levels are user-adjustable in order to accurately display over-and-under exposures during different shooting conditions. For example, the upper Clip Guide limit may be set to 85 IRE and the lower limit to 10 IRE. With these settings, any exposures over the set limit of 85 IRE will display red on both the Waveform and picture (if selected). The same will be true for blacks under 10 IRE
Precision Gamma - It is important that LCD monitors match the color and gamma characteristics of a CRT monitor. To emulate CRT gamma, the non-linear curves are corrected by software algorithms. This process is complicated because the three non-linear colors (RGB) should be corrected simultaneously. The ORCHID gamma correction overcomes this problem and ensures correct matching between panels and channels
Audio Level Meters - De-embeds and displays up to 16 channels of audio using sixteen 64-segment tri-color Audio Meters with user-adjustable reference levels. The Audio Level Meters provide numerical indicators and headroom levels, as well as peak hold function. Audio Channel Loss Warning prevents errors during monitoring
Front & Rear Panel Audio Output - Monitor any two channels at once through the front audio output jack or rear line output jack
Extensive Menu System - Rotomenu system with 7 user-assignable function keys
White Balance - White balance adjustment is essential in order to render colors correctly. To display colors correctly, gray scale should maintain identical color temperature. The white balance for Orchid monitors defaults to D65 (6500K) so the user does not need to adjust white balance. LCD monitors have color-matching issues because white balance can be affected by a change in luminance level. Our unique color management system solves this problem
1-Button Calibration - The Orchid operating system includes an Automatic White Balance function that allows a "One Button" calibration procedure when used with a Konica Minolta CA-310 color analyzer. All Orchid Series LCD panels are calibrated at the factory to ensure color conformity between screens
In the Box Marshall Electronics OR-2410 24" Grade One Performance Standalone Monitor Power Cord Desk Stand Operating Instructions Limited 1-Year Warranty, Extendable to 2 Years with Product Registration Manual PDF 844.6kbdrfxsddfrfrsxdywrsxdqdqczetwwczse Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics OR-2410 24" Grade One Performance Standalone Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics OR-2410 Specs | | | Monitor Type | TFT-LCD | | Screen Size | 24.1" diagonal
20.4 x 12.75" (51.84 x 32.4 cm) | | Resolution | 1920 x 1200 WUXGA | | Pixel Pitch | 0.270 x 0.270 | | Color Depth | 1.07B (8 bit + A-FRC), 30 bit true color | | Color Gamut | CIE-1931, NTSC 1953, 102% | | Luminance | 320 cd/m2 | | Contrast Ratio | 1000:1 | | Response Time | 13 (6 + 7 ms) | | | | Input | Analog: Composite, S-Video Y/C, Component, RGB, BNC, HD15
SDI: SMPTE-424M, SMPTE-292, SMPTE-259M, BNC
Digital: DVI | | Output | SDI: SMPTE-424M, SMPTE-292, SMPTE-259M, BNC
Headphone jack (front) | | Audio | Input: 3.5 stereo jack (rear)
Output: 3.5 stereo jack, 3.5 headphone jack, 3P XLR
Speaker: built in 3 W + 3 W, stereo speaker | | | | Power Requirements | 120 to 240 V AC, 50 to 60 Hz
DC 24 V | | Power Consumption | ~ 90 W (24 V, 3.8 A) | | Temperature / Humidity | Operating Temperature: 32 to 104 °F (0 to 40 °C)
Operating Humidity: 30 to 85%
Storage Temperature: -4 to 140 °F (-20 to 60 °C)
Storage Humidity: 0 to 90% | | Dimensions (WxHxD) | 23.7 x 4.1 x 16.0" (60.2 x 10.06 x 40.5 cm) | | Weight | 24.25 lb (11.0 kg) | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 33.0 x 22.0 x 7.0" |
