User Manual for Marshall Electronics OR-434 Quad 4.3" LCD Rack Mount Monitor Click to enlarge the picture
Contents of the user manual for the Marshall Electronics OR-434 Quad 4.3" LCD
- Product category: Production Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Production Monitors
 |
User manual for the Marshall Electronics OR-434 Quad 4.3" LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|

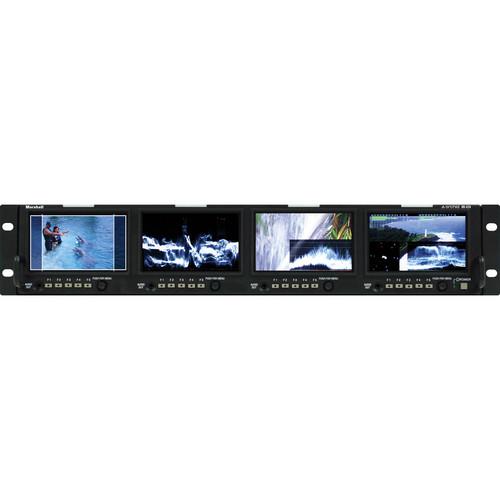

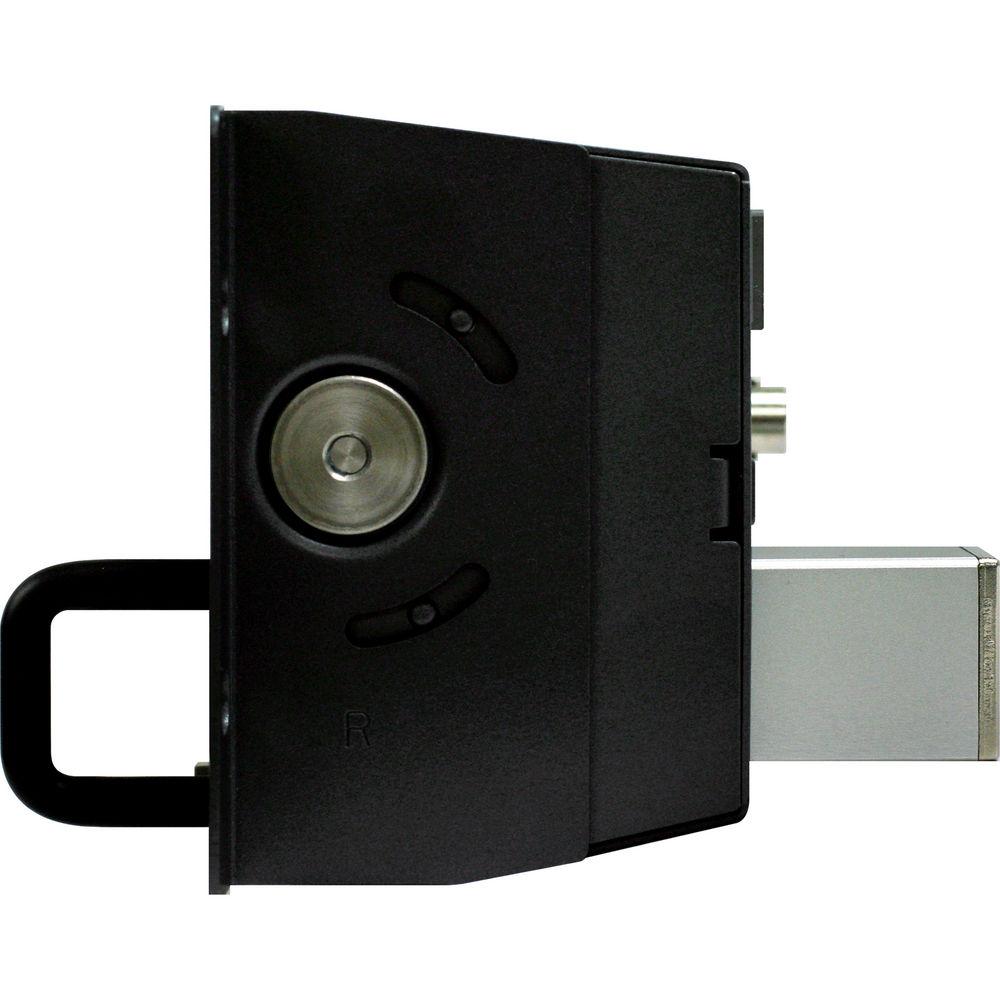

Product description Marshall Electronics' OR-434 Quad Rack Mount Monitor is a 2RU professional, full-featured studio monitor system that gets the most out of its bright, high-contrast imagery with a built-in vectorscope and waveform monitor. It comes with an auto-sensing HD-SDI input and re-clocked outputs, and includes 7 assignable GPI inputs and 4 open modular slots for optional inputs. You can also simultaneously monitor any two channels through the headphone jack or rear line output jack. Additional features include adjustable gamma and color temperature, clip guide, and safety markers. - Waveform
- The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen.
- Vectorscope
- The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x.
- Clip Guide
- The Clip Guide function operates with both the Waveform display and Monochrome picture display. Both the upper and lower Clip Guide levels are user-adjustable in order to accurately display over and under exposures during different shooting conditions.
- Audio Bars
- The audio bars de-embed and display up to 16 channels of audio using sixteen 64-segment tri-color Audio Meters with user-adjustable reference levels.
- Front and Rear Panel Audio Output
- Monitor any two channels at once through the front audio output jack or rear line output jack.
- Extensive Menu System
- 5 user-assignable function keys with a joystick menu system
UPC: 801813135947 In the Box Marshall Electronics OR-434 Quad 4.3" LCD Rack Mount Monitor AC Power Cord Limited 1-Year Warranty, Extendable to 2 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics OR-434 Quad 4.3" LCD Rack Mount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

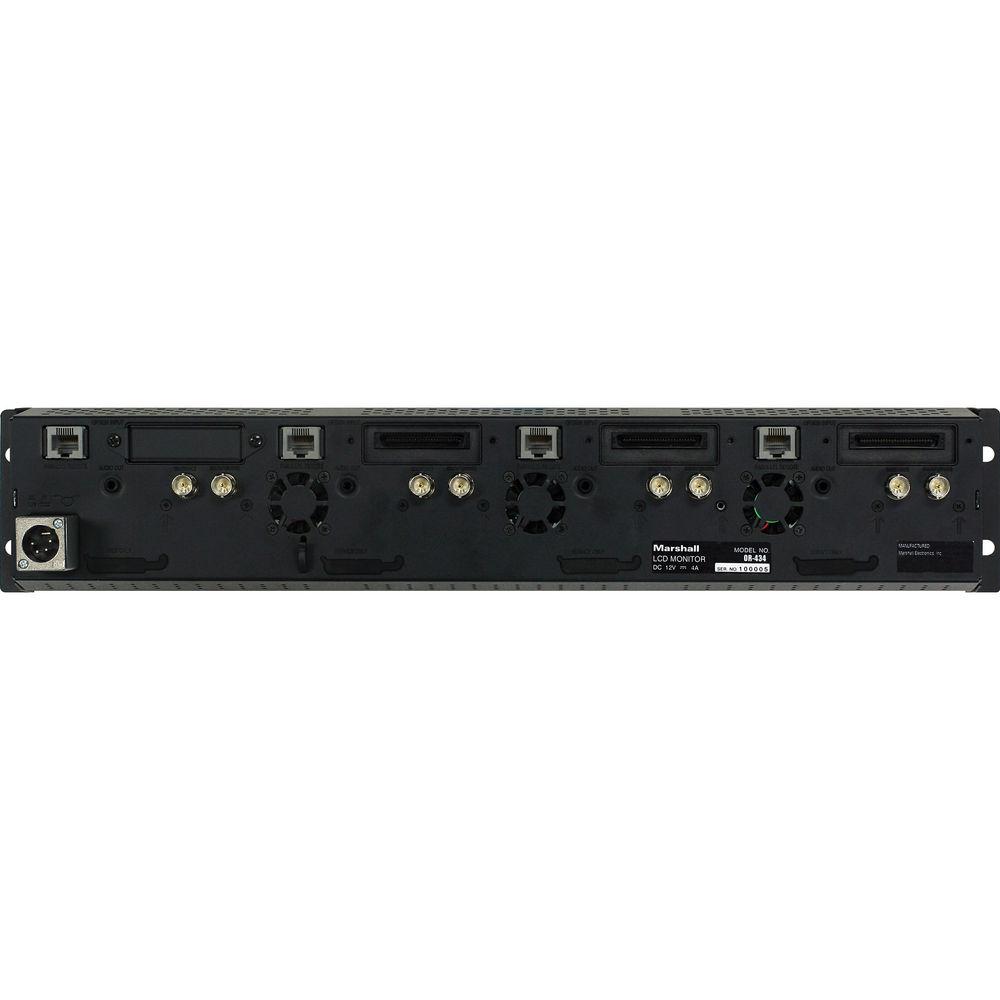

Technical parametersMarshall Electronics OR-434 Specs | Application | Rack Mount, Control Room, Computer Monitoring | | LCD Size | (4) 4.3" | | Video System | NTSC, PAL, HDTV (Auto-Detect) | | Picture Elements | (4) 800 x 480 | | Viewing Angle | Not specified by manufacturer | | Input and Output Connectors | (4) HD/SD-SDI: BNC (x1 Input)
Assignable GPI: RJ-45 (x4 Input)
Audio: 3.5mm Mini (x4 Output) | | Picture Controls | Color
Brightness
Contrast
Tint | | Remote Control | Not specified by manufacturer | | Power Requirements | Not specified by manufacturer | | Power Consumption | Not specified by manufacturer | | Dimensions (WxHxD) | 18.9 x 3.47 x 3.54" (48 x 8.8 x 9 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 11.3 lb | | Box Dimensions (LxWxH) | 25.0 x 10.0 x 9.0" |
