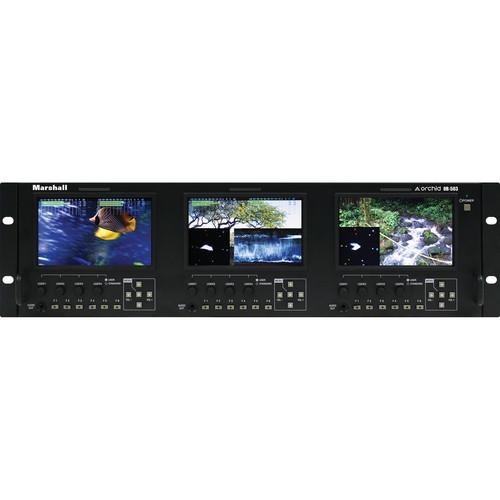

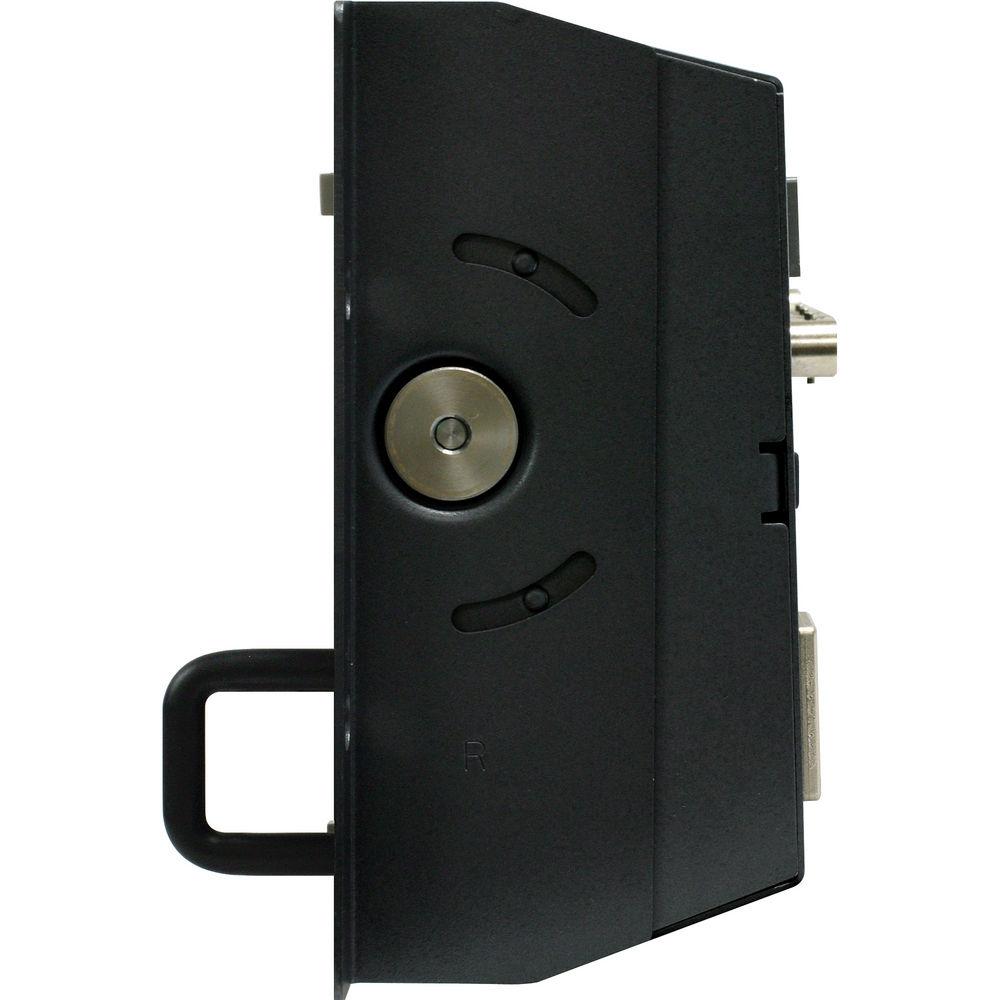

Product description Marshall Electronics' OR-503 Triple Rack Mount Monitor is a 3RU professional, full-featured studio monitor system that gets the most out of its bright, high-contrast imagery with a built-in vectorscope and waveform monitor. It comes with three auto-sensing HD-SDI inputs and re-clocked outputs, and includes 7 assignable GPI inputs and open modular slots for optional YPR and DVI inputs. You can also simultaneously monitor any two channels through the headphone jack or rear line output jack. Additional features include adjustable gamma and color temperature, clip guide, and safety markers. - Waveform Monitor
- The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in various aspect ratios, positions, and transparency options. The waveform monitor not only monitors luminance, but can also warn the user for out-of-range conditions such as overexposure or "blacker-than-black" errors with fully user-adjustable warning limits.
- Real-Time Color Vectorscope
- The built-in vectorscope allows users to monitor color gamut range in real time. It displays in full color and can also be displayed in various sizes, positions, and transparency options. The vectorscope has adjustable gain from 1x to 5x.
- Clip Guide
- The clip guide function operates with both the waveform display and monochrome picture display. Both the upper and lower clip guide levels are user-adjustable in order to accurately display over- and under-exposures during different shooting conditions.
- Precision Gamma
- It is important that LCD monitors match the color and gamma characteristics of a CRT monitor. To emulate CRT gamma, the non-linear curves are corrected by software algorithms. This process is complicated because the three non-linear colors (RGB) should be corrected simultaneously. The ORCHID gamma correction overcomes this problem and ensures correct matching between panels and channels.
- Audio Level Meters
- De-embeds and displays up to 16 channels of audio using sixteen 64-segment tri-color audio meters with user-adjustable reference levels. The audio level meters provide numerical indicators and headroom levels, as well as peak hold function. Audio channel loss warning prevents errors during monitoring.
- Front and Rear Panel Audio Output
- Monitor any two channels at once through the front audio output jack or rear line output jack.
- Extensive Menu System
-
- 6 user-assignable function keys
- 4 user-assignable rotary encoders
- 5 button menu system
UPC: 801813135954 In the Box Marshall Electronics OR-503 5" Triple Rack Mount Monitor AC Power Cord Limited 1-Year Warranty, Extendable to 2 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics OR-503 5" Triple Rack Mount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

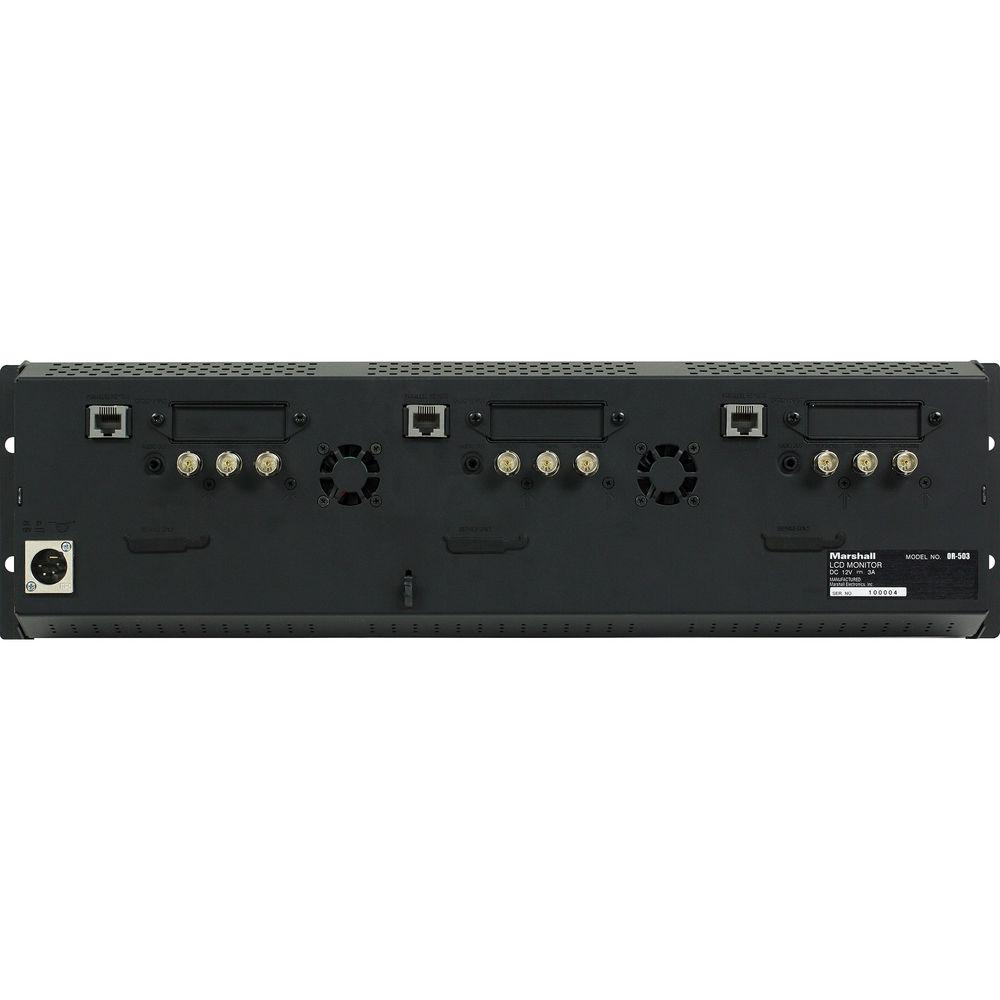

Technical parametersMarshall Electronics OR-503 Specs | Application | Rack Mount, Control Room, Computer Monitoring | | LCD Size | (3) 5" | | Video System | NTSC, PAL, HDTV (Auto-Detect) | | Picture Elements | (3) 800 x 480 | | Viewing Angle | 85° + 85° (V) / 85° + 85° (V) | | Input and Output Connectors | (3) HD/SD-SDI: BNC (x1 Input)
Assignable GPI: RJ-45 (x3 Input)
Audio: 3.5mm Mini (x3 Output) | | Picture Controls | Color
Brightness
Contrast
Tint | | Remote Control | Yes | | Power Requirements | 12VDC via 4-pin XLR connector | | Power Consumption | 36W | | Dimensions (WxHxD) | 18.9 x 5.2 x 2.38" (48 x 13.2 x 6 cm) | | Weight | 6 lbs (2.7kg) | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 22.0 x 10.8 x 9.8" |
