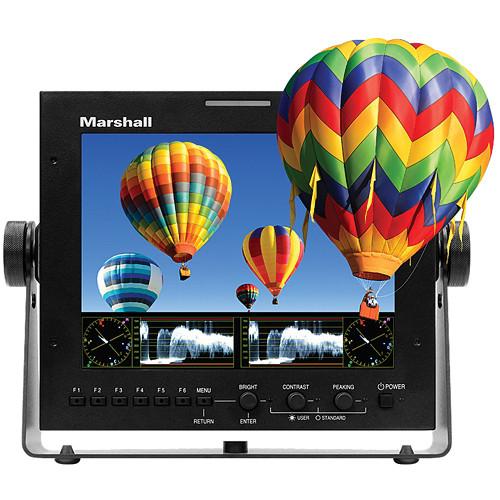

User Manual for Marshall Electronics OR-70-3D 7.2" Orchid Auto-Stereoscopic 3D LCD Monitor Click to enlarge the picture
Contents of the user manual for the Marshall Electronics OR-70-3D 7.2" Orchid Auto-Stereoscopic
- Product category: On Camera Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics On Camera Monitors
|
User manual for the Marshall Electronics OR-70-3D 7.2" Orchid Auto-Stereoscopic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The OR-70-3D 7.2" Orchid Auto-Stereoscopic 3D LCD Monitor from Marshall Electronics weighs a comparatively lightweight 2.9 pounds and can be used camera-top or desktop as a camera monitor or portable 3D production monitor. Featuring parallax barrier and lenticular hybrid technology, the monitor displays 1600 x 600 3D images to the naked eye -- no glasses are required.
The main software features are dual waveform and vectorscope (one of each for each eye) for precision 3D calibration, and checkbox, difference, blending, and compare for 3D analysis.
Integrated mux and 3G-SDI inputs, loop-through outputs, and side-by-side outputs eliminate the need for external converters. Delay-compensated horizontal mirror flip supports both left and right eye channels respectively. You can power the monitor by XLR AC supply or by Gold-mount or V-mount batteries. Both options (as well as battery plates for the battery option) are sold separately. Included are an external tally light, a remote control with large Left Eye and Right Eye buttons, an attachable/removable protective screen, and a desktop stand. The desktop stand features a 1/4" thread for camera-top mounting. Note: Cameras must be genlocked for live 3D monitoring. - Key Features
-
- 1600 x 600 resolution
- Multi-format support
- Dual real-time waveform monitor
- Dual real-time color vectorscope
- Dual real-time image processing analysis
- Tally system
- 3G-SDI input with loop-through
- Clip guide
- Timecode (VITC / LTC)
- Red/Blue/Green/Mono channel
- Precision white balance
- Precision gamma
- Gamma fine tune
- Aspect setting
- Various markers
- Scan setting
- Detachable protective screen
- Desktop Stand
- Compare Box
- The monitor's Compare Box is a 3D calibration feature for precision 3D camera alignment. The box shows a comparison of specific regions of both 3D input channels by means of easy-to-read graphs for Y, R, G, and B with numeric display.
- Emboss (Alpha-Channel View)
- Full-Frame Embossed or Luminance Difference views show the difference between left eye and right eye.
- Checkbox (Checkerboard)
- Quilted layout of both left and right channels for performing a depth check, determining channel difference, and more. The size of the box can be adjusted using a rotary encoder on the front-panel.
- Horizontal Marker
- The H Marker is a ruler for 3D depth control. The position of the lines and the space between them are adjustable using the front-panel rotary encoder.
UPC: 801813154962 In the Box Marshall Electronics OR-70-3D 7.2" Orchid Auto-Stereoscopic 3D LCD Monitor External Tally Light for 7" ORCHID Auto-Stereoscopic 3D Camera-Top / Field Monitor decvcczfyqcudauytddsuqwswt Remote Control for 7" ORCHID Auto-Stereoscopic 3D Camera-Top / Field Monitor Desktop Stand Protective Screen Limited 1-Year Warranty (Monitor Warranty Extendable to 2 Years with Product Registration) User Manual PDF 458.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics OR-70-3D 7.2" Orchid Auto-Stereoscopic 3D LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics OR-70-3D Specs | Size (DXH) | 7.2" diagonally (18.3 cm) | | Resolution | 1600 x 600 | | Brightness | 320 cd/m2 | | Contrast | 600:1 | | Viewing Angle | Horizontal: ±80°
Vertical: -60 to +80° | | Inputs and Outputs | 2x 3G-SDI inputs (left/right)
2x 3G-SDI outputs (left/right loop-through)
2x 3G-SDI outputs (side-by-side halves) | | Remote Control | 7x GPI, RJ-45 parallel remote input | | Power Requirements | 6-18 VDC | | Power Consumption | Approx. 24 W (12 V, 2A) | | Power Input | 12 VDC 4-pin XLR for AC power supply
Also accepts Gold-mount or V-Mount battery
Power supply, battery plate and battery sold separately | | Dimensions | 7.4 x 6.3 x 1.65" (18.8 x 16 x 4.2 cm) | | Weight | 2.87 lb (1.3 kg) | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 13.1 x 10.8 x 7.1" |
