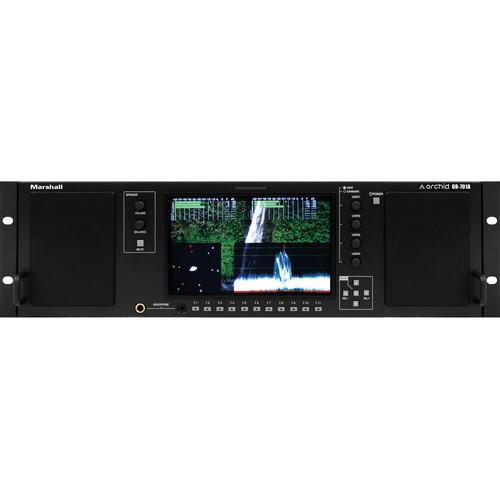

Product description Marshall Electronics' OR-701A 7" Audio/Video Rack Mount LCD Monitor brings a new take to the ORCHID series of rackmountable studio monitors, adding two built-in stereo speakers to an already full set of professional features. The front-panel, full-range speakers and 64-segment on-screen audio meters provide sophisticated levels of audio monitoring to your production or post-production workflow.
Of course such thoroughness comes second nature to Marshall, starting with the OR-701A's bright 800 x 480 display and its myriad of user-assignable function keys, on-screen markers, and image diagnostic tools. A real-time waveform and vectorscope help determine the exact brightness and color of your scene for spot-on exposures, while dual HD-SDI inputs, XLR outputs, and an empty option slot for future connectivity add further flexibility to monitoring in control rooms, media duplication facilities, and remote OB vans. - High Resolution 7" Widescreen Panel
- The OR-701A features an all-digital TFT-MegaPixel active matrix LCD system. The LCD panel features a nominal brightness of 350 cd/m² and a contrast ratio of 400:1, making the display ideal in a variety of environments and lighting conditions.
- Waveform Monitor
- The built-in Waveform Monitor (which includes adjustable White and Black clip level indicators) can be displayed in various aspect ratios, positions, and transparency options. The Waveform Monitor not only monitors luminance, but can also warn the user for out-of-range conditions such as overexposure or "blacker-than-black" errors with fully user-adjustable warning limits.
- Real-time Color Vectorscope
- The built-in Vectorscope allows users to monitor color gamut range in real time. It displays in full color and can also be displayed in various sizes, positions, and transparency options. The Vectorscope has adjustable gain from 1x to 5x.
- Clip Guide
- The Clip Guide function operates with both the Waveform display and Monochrome/Color picture display. Both the upper and lower Clip Guide levels are user-adjustable in order to accurately display over-and-under exposures during different shooting conditions. For example, the upper Clip Guide limit may be set to 85 IRE and the lower limit to 10 IRE. With these settings, any exposures over the set limit of 85 IRE will display red on both the Waveform and picture (if selected). The same will be true for blacks under 10 IRE.
- Precision Gamma
- It is important that LCD monitors match the color and gamma characteristics of a CRT monitor. To emulate CRT gamma, the non-linear curves are corrected by software algorithms. This process is complicated because the three non-linear colors (RGB) should be corrected simultaneously. The ORCHID gamma correction overcomes this problem and ensures correct matching between panels and channels.
- Audio Level Meters
- De-embeds and displays up to 16 channels of audio using sixteen 64-segment tri-color Audio Meters with user-adjustable reference levels. The Audio Level Meters provide numerical indicators and headroom levels, as well as peak hold function. Audio Channel Loss Warning prevents errors during monitoring.
- Front & Rear Panel Audio Output
- Monitor any two channels at once through the front audio output jack or rear line output jack.
- Extensive Menu System
-
- 11 user-assignable function keys
- 4 user-assignable rotary encoders
- 5-button menu system
- White Balance
- White balance adjustment is essential in order to render colors correctly. To display colors correctly, gray scale should maintain identical color temperature. The white balance for ORCHID monitors defaults to D65 (6500K) so the user does not need to adjust white balance. LCD monitors have color-matching issues because white balance can be affected by a change in luminance level. Our unique color management system solves this problem.
- One-Button Color Calibration
- The ORCHID operating system includes an Automatic White Balance function that allows a "One Button" calibration procedure when used with a Konica Minolta CA-210 color analyzer. All ORCHID Series LCD panels are calibrated at the factory to ensure color conformity between screens.
- Full Screen Integrated View
- Allows an integrated full screen view of Waveform, Vectorscope, Audio Bars, and Time Code simultaneously.
-
- Full Range Stereo Speakers
- Tri-Color Tally Indicator
- On-Screen Time Code
- 7 assignable GPI Inputs
- Optional Input Modules
- Variety of Safety Markers
- HDSDI / SDI Inputs and Outputs
UPC: 801813144444 In the Box Marshall Electronics OR-701A 7" Audio/Video Rack Mount LCD Monitor AC Power Cord Limited 1-Year Warranty, Extendable to 2 Years with Product Registration User Manual PDF 1mbcbftdsvvtdsesauyucseuczyfycbqrs Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics OR-701A 7" Audio Video Rack Mount LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics OR-701A Specs | Application | Rack Mount, Control Room, Computer Monitoring | | LCD Size | 7" | | Video System | NTSC, PAL, HDTV (Auto-Detect) | | Picture Elements | 800 x 480 | | Color Depth | 8-bit (16.7M colors) | | Contrast Ratio | 400:1 | | Brightness | 350cd/m² | | Viewing Angle | Not specified by manufacturer | | Input and Output Connectors | HD/SD-SDI: BNC (x2 Input, x1 Loop-through Output)
Audio: XLR (x2 Output), 3.5mm Mini (x1 Output)
Headphones: 3.5mm Mini (x1), 1/4" Phono (x1)
Optional Input Slot (x1) | | Speakers | 2.5" x 2 | | Picture Controls | User-definable | | Remote Control | RJ-45 | | Power Requirements | 12VDC (10-18VDC) | | Power Consumption | 2A (max) | | Dimensions (WxHxD) | 18.9 x 5.2 x 2.4" (48 x 13.2 x 6 cm) | | Weight | 6 lbs (2.7kg) | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 22.0 x 11.0 x 9.0" |
