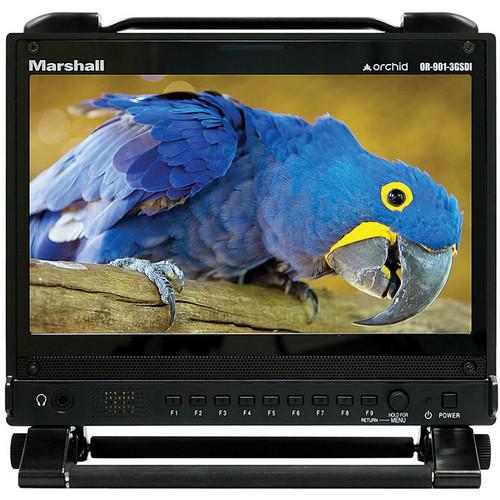

User Manual for Marshall Electronics OR-901-3GSDI ORCHID 9" LCD Field Monitor Click to enlarge the picture
Contents of the user manual for the Marshall Electronics OR-901-3GSDI ORCHID 9" LCD
- Product category: On Camera Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics On Camera Monitors
|
User manual for the Marshall Electronics OR-901-3GSDI ORCHID 9" LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall Electronics OR-901-3GSDI 9" ORCHID LCD Field Monitor is a rack mountable and portable camera top monitor with dual 3G-SDI inputs. It is equipped with a real-time waveform monitor and a color vectorscope and offers a brightness of 350 cd/m2 and contrast ratio of 1000:1. Offering resolutions of up to 960 x 540, it allows you to view HD video formats (1920 x 1080) without scaling artifacts. In addition to an aspect ratio of 16:9, the Orchid LCD Field monitor can automatically adapt to the input resolution of the incoming video signals.
Using the waveform monitor, you can view waveform in different aspect ratios, positions, and transparency options. In addition to brightness monitoring, it also monitors overexposure or "blacker-than-black" errors. With the built-in vectorscope, you can view X-Y plot of two signals and observe the color gamut (subset of colors) in real time. In addition, signals can be displayed in full color as well as in various sizes, positions, and transparency options.
Designed for use in the production of 3D content, the 9" ORCHID LCD Field Monitor comes with five 3D production views (left eye, right eye, blending, luminance difference, and chroma difference), and 4 anaglyph 3D displays (color, half color, optimized, and gray).
With both user-programmable upper and lower Clip Guide levels, you can precisely view over-and-under exposures under varying shooting conditions. By fixing the upper clip guide limit to 85 IRE, you can view any exposure over 85 IRE in red on the waveform, while any exposure below 10 IRE will be displayed in black. The Precision Gamma feature corrects the 3 non-linear colors (RGB) simultaneously and provides accurate matching between panels and channels.
The OR-901-3GSDI monitor uses 16 tri-color audio meters (64-segment) with adjustable reference levels and displays up to 16 audio channels. With a default white balance of D65 (6500K), you don't need to adjust the white balance to obtain accurate colors.
Turning on the G-Marker will display a grid generated by the internal gyroscope that corresponds to the horizon. Using this grid, you can accurately level the camera and monitor.
A rotary menu system and 9 user-assignable function keys allow for easy menu navigation. The LCD field monitor features auto sensing 3G-SDI inputs with re-clocked output and supports 3 different battery adaptors. In addition, it also features front and rear panel audio output for simultaneous monitoring of any 2 channels. - A rack mountable and portable camera top monitor with dual 3G-SDI inputs
- Equipped with a real-time waveform monitor and a color vectorscope
- Offers a brightness of 350 cd/m2 and contrast ratio of 1000:1
- Supports resolutions of up to 960 x 540 and allows you to view HD video formats (1920 x 1080) without scaling artifacts
- Aspect ratio of 16:9 can automatically adapt to the input resolution of the incoming video signal
- Waveform monitor - allows you to view waveform in different aspect ratios, positions, and transparency options
- Monitors overexposure or "blacker-than-black" errors along with brightness monitoring
- Built-in vectorscope allows you to view X-Y plot of two signals and observe the color gamut (subset of colors) in real time
- Vectorscope - displays signals in full color as well as in various sizes, positions, and transparency options
- Offers five 3D production views (left eye, right eye, blending, luminance difference, and chroma difference)
- Offers 4 anaglyph 3D displays (color, half color, optimized, and gray)
- User-programmable upper and lower Clip Guide levels can precisely view over-and-under exposures under varying shooting conditions
- Allows you to view any exposure over 85 IRE in red on the waveform by fixing the upper clip guide limit to 85 IRE
- Exposure below 10 IRE is displayed in black
- Precision Gamma feature corrects the 3 non-linear colors (RGB) simultaneously and provides accurate matching between panels and channels
- Uses 16 tri-color audio meters (64-segment) with user changeable reference levels
- Displays up to 16 audio channels
- Offers a default white balance of D65 (6500K), so you need not adjust the white balance to obtain accurate colors
- User Marker for marking specific area on the display for logos or titles
- G-Marker - displays a grid generated by the internal gyroscope for accurately adjusting the level of the camera and monitor
- Equipped with 9 user-assignable function keys and rotary menu system for easy menu navigation
- Features auto sensing 3G-SDI inputs with re-clocked output
- Can be rack mounted, on a desktop, in the field, or mounted to a camera
- Supports 3 different battery adaptors
- Features front and rear panel audio output for simultaneous monitoring of any 2 channels
UPC: 801813149357 In the Box Marshall Electronics OR-901-3GSDI ORCHID 9" LCD Field Monitor 12 Volt AC/DC Power Adaptor Regional Power Cord Quick Start Guide Spare "On Air" Tally GL-ARC Anaglyph Red/Cyan Glasses wxqrxyrdbzwqvsutwxecfcqfsfvc Limited 1-Year Warranty, Extends to 2 Years with Registration User Manual PDF 826.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics OR-901-3GSDI ORCHID 9" LCD Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics OR-901-3GSDI Specs | Display | Viewing Area - 9.0" | | Resolution | 960 x 540 | | Aspect Ratio | 16:9 | | Brightness | 350cd/m² | | Contrast Ratio | 1000:1 | | Input | Available Input Types - 3G-SDI x 2 | | Audio | Available Audio Output (per screen) - 2 Stereo (3.5mm - Front and Rear) | | Power Consumption | 18W (1.5A) | | Power Supply | DC 12V 4-Pin XLR | | Dimensions | 8.72 x 7.21 x 1.78" (221 x 183 x 45 mm) | | Weight | 4lb (1.81kg) | | Battery Adaptor | Available Battery Adapter Configurations - "AB" - (Anton/Bauer) / "VM" - (V-Mount) / "SB" - (Sony B series) | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 12.9 x 11.4 x 10.4" |
