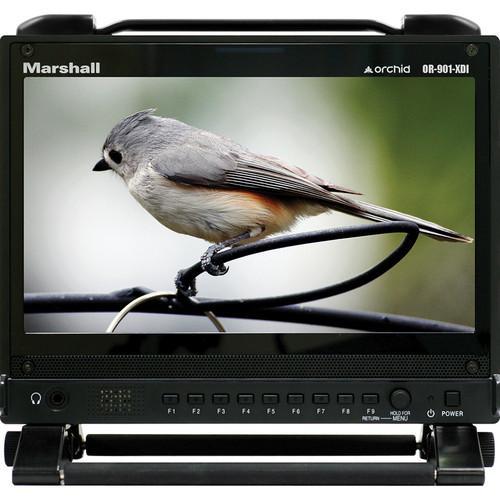

User Manual for Marshall Electronics ORCHID 9" LCD Field Monitor Click to enlarge the picture
Contents of the user manual for the Marshall Electronics ORCHID 9" LCD Field
- Product category: On Camera Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics On Camera Monitors
|
User manual for the Marshall Electronics ORCHID 9" LCD Field contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall Electronics ORCHID 9" LCD Field Monitor is a rack mountable and portable camera top monitor with dual 3G-SDI inputs. It is equipped with a real-time waveform monitor and a color vectorscope and offers a brightness of 350 cd/m2 and contrast ratio of 1000:1. Offering resolutions of up to 960 x 540, it allows you to view HD video formats (1920 x 1080) without scaling artifacts. In addition to an aspect ratio of 16:9, the Orchid LCD Field monitor can automatically adapt to the input resolution of the incoming video signals.
Using the waveform monitor, you can view waveform in different aspect ratios, positions, and transparency options. In addition to brightness monitoring, it also monitors overexposure or "blacker-than-black" errors. With the built-in vectorscope, you can view X-Y plot of two signals and observe the color gamut (subset of colors) in real time. In addition, signals can be displayed in full color as well as in various sizes, positions, and transparency options.
Designed for use in the production of 3D content, the 9" ORCHID LCD Field Monitor comes with five 3D production views (left eye, right eye, blending, luminance difference, and chroma difference), and 4 anaglyph 3D displays (color, half color, optimized, and gray).
With both user-programmable upper and lower Clip Guide levels, you can precisely view over-and-under exposures under varying shooting conditions. By fixing the upper clip guide limit to 85 IRE, you can view any exposure over 85 IRE in red on the waveform, while any exposure below 10 IRE will be displayed in black. The Precision Gamma feature corrects the 3 non-linear colors (RGB) simultaneously and provides accurate matching between panels and channels.
The OR-901-3GSDI monitor uses 16 tri-color audio meters (64-segment) with adjustable reference levels and displays up to 16 audio channels. With a default white balance of D65 (6500K), you don't need to adjust the white balance to obtain accurate colors.
Turning on the G-Marker will display a grid generated by the internal gyroscope that corresponds to the horizon. Using this grid, you can accurately level the camera and monitor.
A rotary menu system and 9 user-assignable function keys allow for easy menu navigation. The LCD field monitor features auto sensing 3G-SDI inputs with re-clocked output and supports 3 different battery adaptors. In addition, it also features front and rear panel audio output for simultaneous monitoring of any 2 channels. - HDMI input with pass-through
- Full input-to-output cross conversion
- Real-time waveform monitor
- Adjustable clipping indicator
- Real-time color vectorscope
- Four anaglyph 3D displays
- Auto white balance calibration
- Sixteen 64-segment tri-color audio meters
- Adjustable color temperature
- Histogram and false color mapping with two modes
- Auto-sensing rear unbalanced stereo output
- Auto-sensing rear unbalanced stereo output
- Auto-sensing front panel headphone jack
UPC: 801813150537 In the Box Marshall Electronics ORCHID 9" LCD Field Monitor 12 Volt AC/DC Power Adaptor Regional Power Cord Quick Start Guide Limited 1-Year Warranty, Extendable to 2 Years with Product Registration Guides & Manuals aeexzfscytyfbfusdyefdstzxxbcwffbecrwq Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics ORCHID 9" LCD Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Marshall Electronics ORCHID 9" LCD Field Monitor can be downloaded in PDF format at the link stated below.
Technical parametersMarshall Electronics OR-901-XDI Specs | Display | Viewing Area - 9.0" | | Resolution | 960 x 540 | | Aspect Ratio | 16:9 | | Brightness | 350cd/m² | | Contrast Ratio | 1000:1 | | Input | Available Input Types - 3G-SDI x 2, Composite, Component, HDMI | | Audio | Available Audio Output (per screen) - 2 Stereo (3.5mm - Front and Rear) | | Power Consumption | 18W (1.5A) | | Power Supply | DC 12V 4-Pin XLR | | Dimensions | 8.72 x 7.21 x 1.78" (221 x 183 x 45 mm) | | Weight | 4lb (1.81kg) | | Battery Adaptor | Available Battery Adapter Configurations - "AB" - (Anton/Bauer) / "VM" - (V-Mount) / "SB" - (Sony B series) | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 12.8 x 11.4 x 10.3" |
