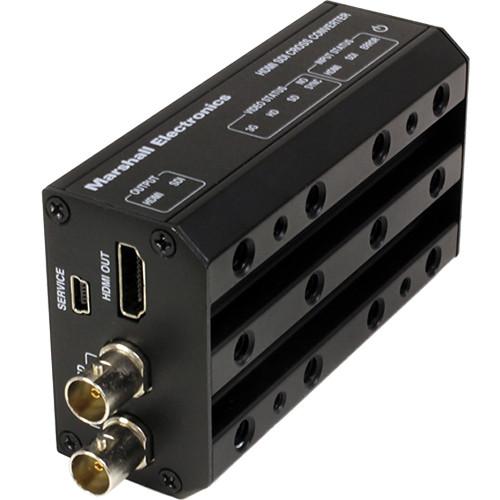

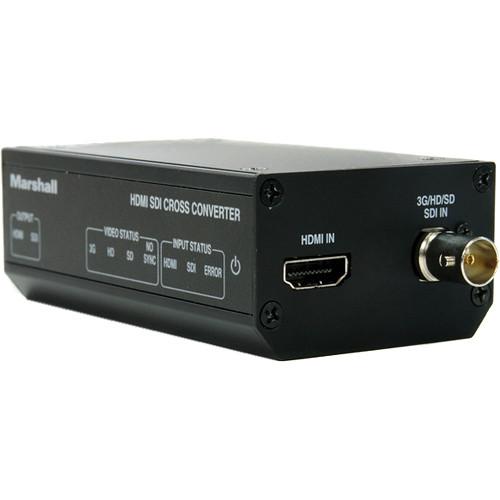

Product description The Marshall Electronics Orchid Battery-Powered 3G-SDI / HDMI Cross Converter (4-Pin XLR) is used to convert input signals between an HDMI and a 3G-SDI source with audio for distribution over 2 output ports. Accepting input from a 3G-SDI source, the Cross Converter can be used to provide signals to an HDMI source while simultaneously supplying the same input through the 3G-SDI output port. Automatic input video format detection allows automatic input port switching of the signals to the respective output ports.
With a built-in SD format interlacer, the Battery-Powered 3G-SDI / HDMI Cross Converter supports 480p to 480i conversion required for DSLR while recording. A small battery plate allows you to use the cross converter with a 7.2V or a 14.4V battery for operation. In addition, it includes an EIA 12V jack and a 4-pin XLR connector that is used to power the unit.

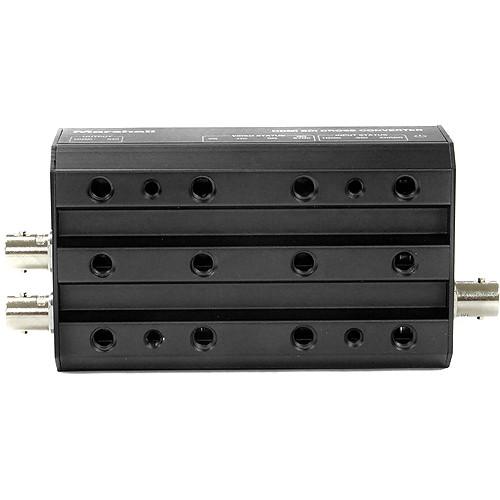

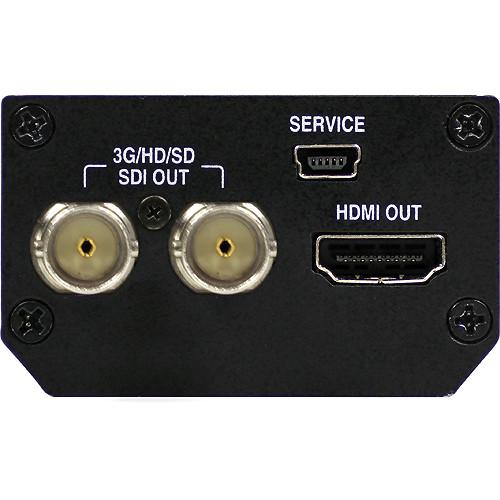

The Battery-Powered 3G-SDI / HDMI Cross Converter with 4-Pin XLR Connector comes with an 8-position piano switch for input port selection and power save, and features LED indicators which indicate speed and health of the connection. A USB service port is also included for future upgrade of the device. The converter is housed in a rugged metal alloy case, and includes a 1/4-20 dual size mounting holes. - Used to convert input signals between an HDMI and a 3G-SDI source with audio for distribution over 2 output ports
- Accepts input from 3G-SDI / HDMI source
- Simultaneous output on both output ports
- Automatic input video format detection
- Automatic input port switching
- Built-in SD format interlacer
- Supports 480p to 480i conversion required while recording using a DSLR
- Includes a small battery plate
- Can be used with a 7.2V or a 14.4V battery for operation
- EIA 12V jack / 4-pin XLR connector used to power the unit via a power adaptor
- 8-position piano switch for input port selection and power save
- LED indicators display speed and health of the connection
- USB service port for future upgrade of the converter
- Housed in a rugged metal alloy case
- Includes 1/4-20 dual size mounting holes
- Suitable for video production
In the Box Marshall Electronics Orchid Battery-Powered 3G-SDI / HDMI Cross Converter (4-Pin XLR) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics Orchid Battery-Powered 3G-SDI HDMI Cross Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics OR-XDI Specs | Dimensions (WxDxH) | 3.91 x 2.28 x 1.38" (9.93 x 5.79 x 3.5 cm) | | Weight | 0.475 lb (215 g) (without battery) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 7.1 x 6.0 x 3.4" |
