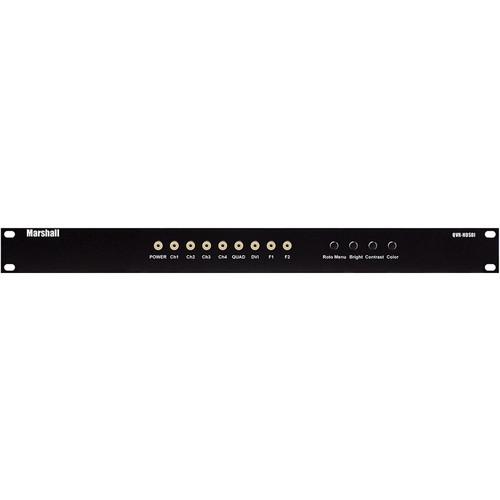

Product description The Marshall QVR-HDSDI Quad Viewer Control Box (1 RU Mount Enclosure) allows simultaneous viewing of 4 different signals on a monitor that has a DVI input, and supports Image Video, NVISION, TSL, and MEI protocols.
Featuring multiple frame marker overlays with center mark, it comes with a 3-color on-screen tally, video time code, and audio presence indicator. The QVR-HDSDI Quad Viewer Control Box offers control via RS-422 / 485 connections with loop-through, and includes IMD functionality which avoids the need for an external under monitor display. It includes a Rotomenu feature for fast, direct, and easy menu navigation, and offers direct access for adjustments of brightness and contrast. The control box uses a blue gun for color adjustment. - Allows simultaneous viewing of 4 different signals on a monitor that has a DVI input
- Supports Image Video, NVISION, TSL, and MEI protocols
- A 3-color on-screen tally, video time code, and audio presence indicator
- Offers control via RS-422 / 485 connections with loop-through
- Includes IMD functionality which avoids the need for an external under monitor display
- Includes a Rotomenu feature for fast, direct, and easy menu navigation
- Direct access for adjustments of brightness and contrast
- Features multiple frame marker overlays with center mark
- Uses a blue gun for color adjustment
UPC: 283278142171 Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics Quad Viewer Control Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics QVR-HDSDI Specs | Inputs | 4 HDSDI
1 DVI-D | | Protocols | Image Video / NVISION / TSL / MEI | | Output Resolution | 1920 x 1080 | | Connection | RS-422 / 485 | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 25.2 x 17.2 x 7.5" |
