User manual for the Marshall Electronics QV261A-HDSDI Desktop Quad Viewer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|

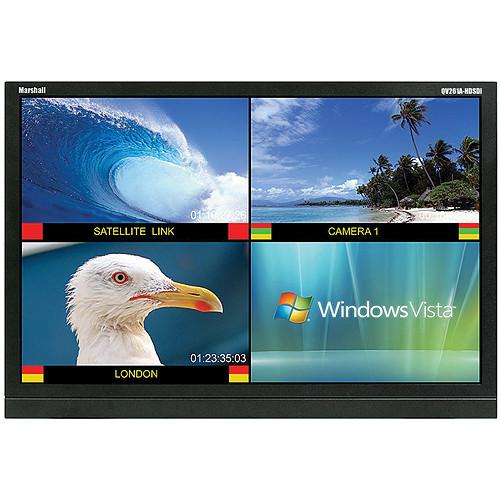

Product description The Marshall Electronics QV261A-HDSDI Desktop Quad Viewer Monitor (26"), with 8-bit color depth, delivers high quality images at a resolution of up to 1920 x 1200. It offers a contrast ratio of 800:1, a brightness rating of 500 cd/m², and a wide viewing angle of 178 x 178° (H x V) that allows you to view the images clearly even from room corners or when the display is mounted at a height.
Equipped with pixel-to-pixel mode, the QV261A-HDSDI LCD monitor displays images in their native resolution by avoiding the internal scaling function. It has an aspect ratio of 16:10, and can automatically adapt to the input resolution of the incoming video signal. The distance between the dots of the same color inside the display screen is described with the help of 0.286 x 0.286 mm pixel pitch. The monitor incorporates RotoMenu feature for quick, direct, and easy menu navigation.
In-monitor display enables on-screen text and tally indication, which can be controlled locally or remotely via support for protocols like TSL, NVISION, Image Video, and MEI (Marshall Electronics) tally control systems. With time code mode, you can view time code on the screen and LTC (linear time code) or VITC (vertical interval time code) types of time codes are supported. The Blue only mode switches off red and green scan guns to produce image made only from a blue scan gun, and the monochrome mode displays a grayscale picture by disabling all colors. Featured Quad Viewer allows you to view 4 different inputs on the screen instantly. In addition, it also enables viewing of all 4 inputs by scaling and positioning each input in real-time and allows you to replace input 4 with a DVI-I input.
With aspect ratio settings, you can precisely monitor different aspect ratios in 16:9 and 4:3 modes. The QV261A-HDSDI monitor features 3-color on-screen soft tally indicators and 3 LED color tally indicators (Red / Green / Amber). With the audio monitor feature, you can enable or disable the audio presence indicator icon. The enabled state indicates the presence of an embedded audio, and the disable state is indicated by the red circle and cross. In addition, the monitor can enable/disable Closed Captioning icon using CC menu option. In enable state, the icon displays a green dot to indicate the presence of EIA 608/708 embedded Closed Captioning data in the video signal, while a red dot indicates no captioning information.
The multi-configurable OSD (on-screen display) allows you to display the embedded video time code and an embedded audio presence indicator on the screen. 2 User-programmable buttons provide fast access to various settings and functions such as IMD, Time Code, OSD Tally, Audio Monitor, Aspect Ratio, Pixel to Pixel, Ctemp/Gamma, Blue Only, and Monochrome. The QV261A-HDSDI monitor features 4 HD-SDI inputs, 1 DVI-I input, and RS-422/485 port for all-round connectivity. - Delivers high quality images at a resolution of up to 1920 x 1200
- Offers a contrast ratio of 800:1, a brightness rating of 500 cd/m², and a wide viewing angle of 178 x 178° (H x V) that allows you to view the images clearly even from room corners or when the display is mounted at a height
- Pixel-to-pixel mode - displays images in their native resolution by avoiding the internal scaling function
- Aspect ratio of 16:10 can automatically adapt to the input resolution of the incoming video signal
- Distance between the dots of the same color inside the display screen is described with the help of 0.286 x 0.286 mm pixel pitch
- Incorporates RotoMenu feature for quick, direct, and easy menu navigation
- In-monitor display enables on-screen text and tally indication, which can be controlled locally or remotely via support for protocols like TSL, NVISION, Image Video, and MEI (Marshall Electronics) tally control systems
- Time code mode enables you to view time code on the screen and LTC (linear time code) or VITC (vertical interval time code) types of time codes are supported
- Blue only mode switches off red and green scan guns to produce image made only from a blue scan gun
- Monochrome mode displays a grayscale picture by disabling all colors
- Quad Viewer allows you to view 4 different inputs on the screen instantly
- Enables viewing of all 4 inputs by scaling and positioning each input in real-time and allows you to replace input 4 with a DVI-I input
- Aspect ratio settings can precisely monitor different aspect ratios in 16:9 and 4:3 modes
- Features 3-color on-screen soft tally indicators and 3 LED color tally indicators (Red / Green / Amber)
- Audio monitor feature can enable or disable the audio presence indicator icon
- Enabled state indicates the presence of an embedded audio, and the disable state is indicated by the red circle and cross
- Can enable/disable Closed Captioning icon using CC menu option
- Enable state - Icon displays a green dot to indicate the presence of EIA 608/708 embedded Closed Captioning data in the video signal
- Disabled state - Icon displays a red dot to indicate no captioning information
- Allows you to display the embedded video time code and an embedded audio presence indicator on the screen
- 2 User-programmable buttons provide fast access to various settings and functions such as IMD, Time Code, OSD Tally, Audio Monitor, Aspect Ratio, Pixel to Pixel, Ctemp/Gamma, Blue Only, and Monochrome
- Features 4 HD-SDI inputs, 1 DVI-I input, and RS-422/485 port for all-round connectivity
- Supports firmware upgradation via RS-422 / 485 port
- Supports high quality scaling and deinterlacing
- Supports color temperature/gamma, adjustments settings memory, and status display features
- Curtain color feature displays default color (blue, red, green, white, and black) on the screen in the absence of video input
- Framelock preference function synchronizes image scaling (in Quad Mode) by making one of the inputs as reference
UPC: 801813151145 In the Box Marshall Electronics QV261A-HDSDI Desktop Quad Viewer Monitor (26") V-PS24-6.25-XLR-R/A 24 V XLR Power Supply V-ST23-32 - Desktop Stand For 23-32" Monitors Limited 1-Year Warranty, Extends to 2 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics QV261A-HDSDI Desktop Quad Viewer Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics QV261A-HDSDI Specs | Display | Viewing Area - 26" | | Resolution | 1920 x 1200 | | Brightness | 500 cd/m² | | Contrast Ratio | 800:1 | | Viewing Angle | 178º x 178º | | Pixel Pitch | 0.2865 x 0.2865 mm | | Video Input/Output | HD-SDI Input / Output - Supports ITU-R BT.656, SMPTE 259M, 292M, 274M
DVI-I Video/VESA input | | Connectors | HD-SDI Video Input - 4 x BNC Female (75 ohm)
HD-SDI Video Output (Active Loop-Through) - 4 x BNC Female (75 ohm)
DVI-I Video/VESA input - 1 x DVI-I Female connector
Power Input - 4-Pin XLR Connector
Tally Hardware Interface - HD-15 Female
RS-422/485 Interface - 2 x RJ12 (Modular 6P6C) | | Dimensions | 23.3 x 16.0 x 2.17" (591 x 406 x 55.1 mm) | | Weight | 19.3lb (8.75kg) | | | | Package Weight | 28.4 lb | | Box Dimensions (LxWxH) | 32.8 x 20.8 x 5.6" |
