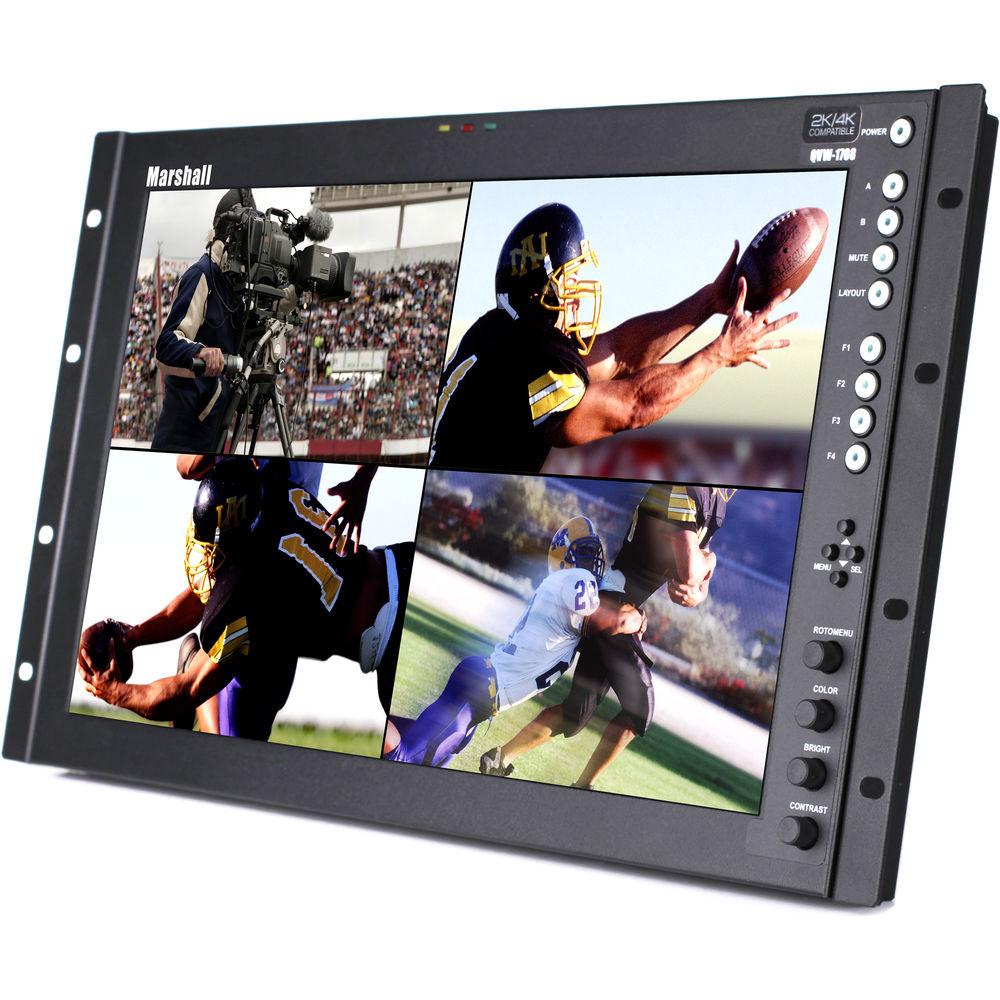

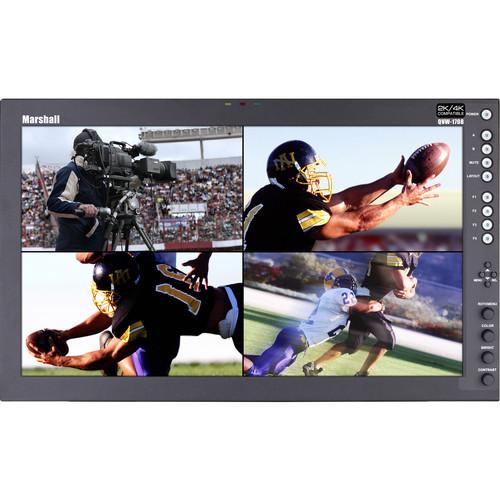

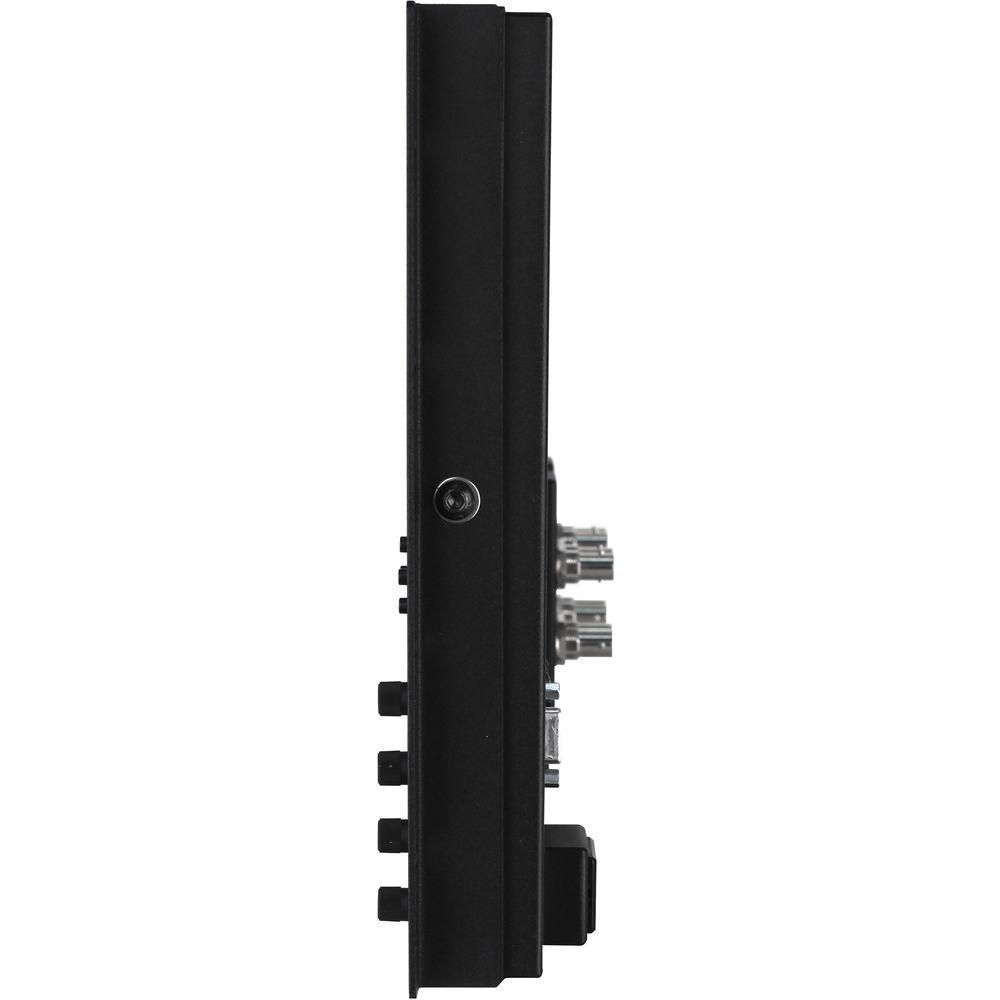

Product description View multiple HD sources simultaneously with the Marshall Electronics QVW-1708-3G 17" Quad View Monitor. All inputs can be arranged on the screen in different configurations to fit the application of the monitor. This version of the QVW-1708 features four SDI inputs enabling this monitor to display four HD or SD sources. All four SDI inputs can also be linked to make a full UHD or DCI 4K image.As a professional monitor, the QVW-1708-3G can be mounted in a standard equipment rack using the included rack ears. Assist tools included on this monitor include audio bars, blue-only, on-screen tally, closed caption display, pixel-to-pixel scan, and color temperature selection. The internal menus of the monitor can be easily accessed and navigated using the front panel knobs. - Monitoring Features
-
- Loss of input curtain
- Headphone jack
- Audio bars
- IMD functions
- Tally OSD
- Blue-only mode
- Closed caption
- Pixel-to-pixel
- Pre-set gamma points
- Self-sensing inputs
- Two modular input slots
- Reclocked outputs
- General Features
-
- Native 1920 x 1080 display (16:9)
- Accepts input resolutions up to 4096 x 2160
- IMD (In-Monitor Display) functions
- Area markers
- Hard tally and soft tally
- Network control via Ethernet
- Presence indicators for TC, CC (608/708), audio
- Display for embedded audio and timecode
- RS-485 in/out/host ports allow daisy-chaining IMD and display functions
- Pixel-to-pixel mode
- Compatible with CalMAN 5 calibration technology
- Rack ears included
- Field-updatable firmware
UPC: 801813175561 In the Box Marshall Electronics QVW-1708-3G 17" Quad View Monitor V-PS12-5V-XLR Power Supply wsxddbwdftsxtwfxcfvse Rack Ears Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics QVW-1708-3G 17" Quad View Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics QVW-1708-3G Specs | | | Panel Type | TFT LCD | | Display Size | 17.3" / 43.9 cm | | Active Area | 15 x 8.5" / 381.89 x 214.81 mm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 600:1 | | Image Controls | Blue Only, Color Temperature Selection, Pixel-to-Pixel Zoom, Screen Markers | | | | Video | 4 x BNC (3G-SDI) Input

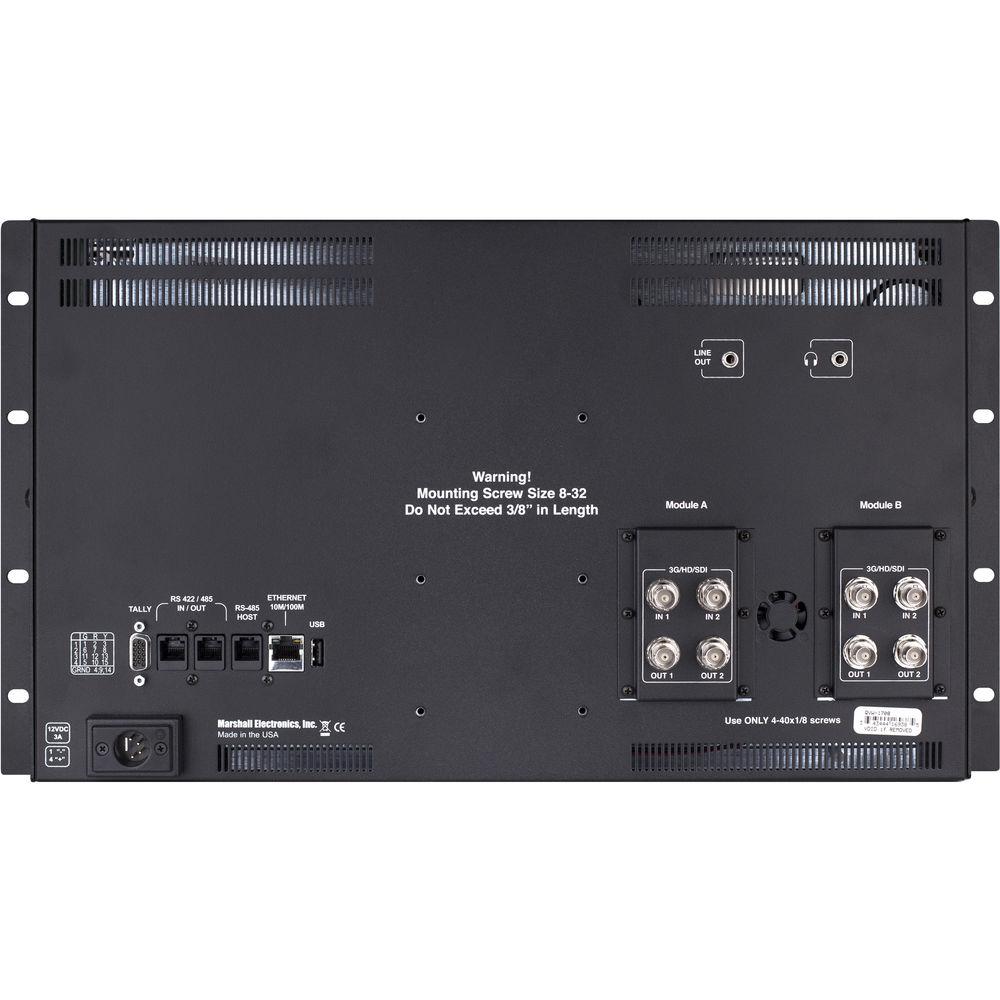

4 x BNC (3G-SDI) Output | | Audio | None | | Built-In Speaker | None | | Power | 1 x 4-Pin XLR Input | | Other I/O | 1 x Tally (DE-15/DB-15)
1 x USB Type-A
1 x LAN (RJ45)
2 x RS-422/RS-485 (8P8C)
1 x RS-485 (8P8C) | | Card Slot | None | | | | Video Format | SDI
DCI 4K
UHD 4K
1080p
1080i
720p
PAL
NTSC | | | | DC Input Power | 12 VDC at 5 A | | Battery Type | None | | Power Consumption | 60 W (Maximum) | | | | Mounting-Hole Pattern | 75 x 75 mm | | | | Certifications | CE, as per Manufacturer | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Storage Temperature | 14 to 122°F / -10 to 50°C | | | | Dimensions (W x H x D) | 17.2 x 10.5 x 1.4" / 43.6 x 26.5 x 3.7 cm | | Weight | 9.4 lb / 4.2 kg | | | | Package Weight | 14.45 lb | | Box Dimensions (LxWxH) | 25.8 x 13.3 x 7.4" |
