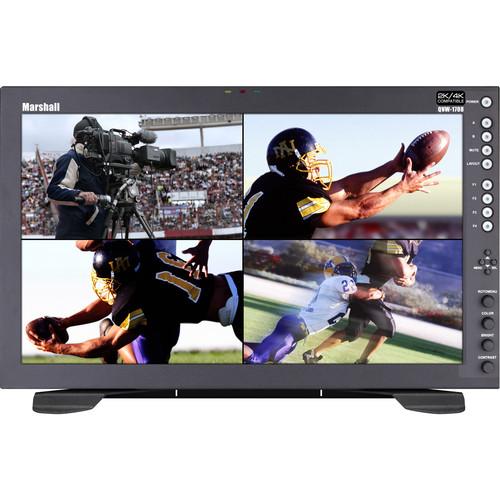

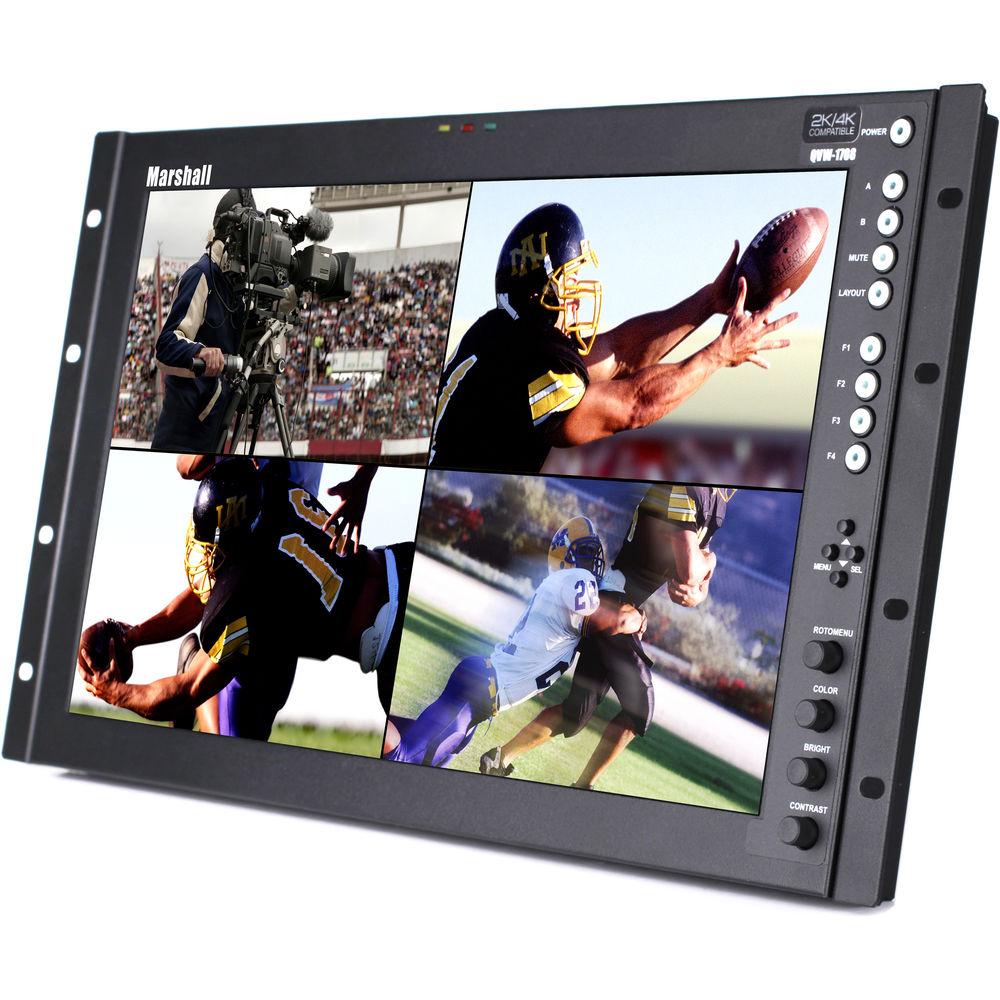

Product description View multiple HD sources simultaneously with the Marshall Electronics QVW-1708-HDI 17" Quad View Monitor. All inputs can be arranged on the screen in different configurations to fit the application of the monitor. This version of the QVW-1708 features dual HDMI inputs, each able to accept signals up to 1080p.As a professional monitor, the QVW-1708-HDI can be mounted in a standard equipment rack using the included rack ears. Assist tools included on this monitor include audio bars, blue-only, on-screen tally, closed caption display, pixel-to-pixel scan, and color temperature selection. The internal menus of the monitor can be easily accessed and navigated using the front panel knobs. - Monitoring Features
-
- Loss of input curtain
- Headphone jack
- Audio bars
- IMD functions
- Tally OSD
- Blue-only mode
- Closed caption
- Pixel-to-pixel
- Pre-set gamma points
- Self-sensing inputs
- Two modular input slots
- Reclocked outputs
- General Features
-
- Native 1920 x 1080 display (16:9)
- Accepts input resolutions up to 1080p
- IMD (In-Monitor Display) functions
- Area markers
- Hard tally and soft tally
- Network control via Ethernet
- Presence indicators for TC, CC (608/708), audio
- Display for embedded audio and timecode
- RS-485 in/out/host ports allow daisy-chaining IMD and display functions
- Pixel-to-pixel mode
- Compatible with CalMAN 5 calibration technology
- Rack ears included
- Field-updatable firmware
UPC: 801813175554 In the Box Marshall Electronics QVW-1708-HDI 17" Quad View Monitor V-PS12-5V-XLR Power Supply Rack Ears Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics QVW-1708-HDI 17" Quad View Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics QVW-1708-HDI Specs | Panel Size | 17.3" / 43.9 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Active Area | 381.89 x 214.81 mm | | Type | LCD panel | | Brightness | 400 cd/m² | | Contrast | 600:1 | | Color Gamut | YUV, RGB | | Viewing Angles | 160 x 160° | | Backlight Type | LED | | Video Formats | 1080p
1080i
720p
576p
480p | | Color Temperature | D65, D55, and D93 | | Slot | 2 x Modular input slots | | Video Inputs | 2 x HDMI | | Video Outputs | None | | Control Features | Tally/GPI, RS-485/422 with loop-through, Ethernet, controls on front panel, user-defined function buttons, RotoMenu control, pivot angle | | Voltage | 12 VDC | | Consumption | 12 VDC, 5 A
60 W Max | | Connector | 4-Pin XLR | | Compliance | CE approved | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Storage Temperature | 14 to 122°F / -10 to 50°C | | VESA Pattern | 75 mm | | Dimensions (W x H x D) | 17.2 x 10.5 x 1.4" / 43.6 x 26.5 x 3.7 cm | | Weight | 9.4 lb / 4.2 kg | | | | Package Weight | 14.4 lb | | Box Dimensions (LxWxH) | 25.5 x 13.5 x 7.7" |
