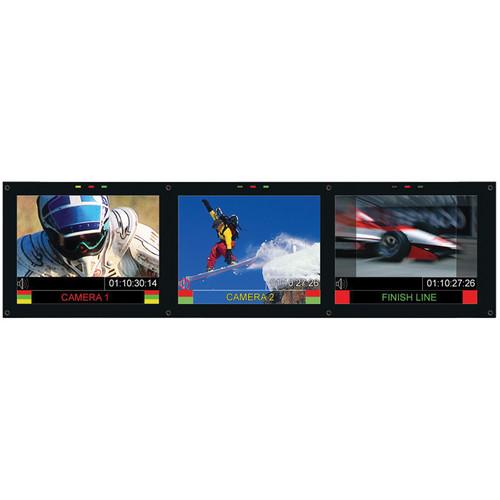

Product description The Marshall Electronics Triple 6.5" Rack Mounted Monitor Set with 3G/HD/SD-SDI features three 6.5" LCD displays, each with 1024 x 768 RGB dots. Each display accepts a single 3G/HD/SD-SDI video signal via BNC connectors with active loop-through capability. This rack mount unit also has an RS-422/485 connection with loop-through for control communication and In-Monitor Display (IMD) functionality. V-R653-IMD-3GTE supports Image Video, NVISION, TSL and Marshall protocols.
Each 6.5" LCD display has 1042 x RGB x 768 resolution and supports 16.7 million colors. In addition, a 500:1 contrast ratio and 650 cd/m² luminance produce enhanced image quality in varying light and viewing conditions. IMD functionality means that these monitors can utilize the lower portion of the screen to display information that would usually require a separate UMD unit. On-screen display features include video time code, three-color "soft" tallies and audio presence indicators. There are also three LED tally lights located above the screen.
V-R653-IMD-3GTE uses Marshall's RotoMenu for simple and direct menu navigation and quick access to adjustments for brightness, contrast, color and other settings. There are also two user-definable function buttons and a D-pad. Additional features include multiple Frame Marker Overlays, Blue Gun, Pixel-to-Pixel mode and adjustment settings memory. The backlight has a five year (50,000 hour) life, and future firmware upgrades can be done in the field via the RS-422/485 port. - Key Features
-
- Three 6.5" LCD displays with 1042 x RGB x 768 resolution each
- 3G/HD/SD-SDI inputs with loop-through support up to 1080/60p signals
- RS-422/485 connection with loop-through for control interface
- Each display has a 500:1 contrast ratio and supports 16.7 million colors
- On-screen time code, three-color "soft" tally and audio presence indicators
- Frame Marker Overlays, Pixel-to-Pixel mode, Blue Gun and settings memory
- Five year (50,000 hour) backlight life
- RotoMenu for easy menu navigation
UPC: 801813158700 In the Box Marshall Electronics Triple 6.5" Rack Mounted Monitor Set with 3G/HD/SD-SDI DC Power Supply (V-PS12-5V-1) Operating Instructions Limited 1-Year Warranty, Extendable to 2-Year with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics Triple 6.5" Rack Mounted Monitor Set with 3G HD SD-SDI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-R653-IMD-3GTE Specs | | | Display Type | LCD Panel (x3) | | Display Size | Diagonal: 6.5"
H x V: 5.2 x 3.9" (13.21 x 9.91 cm) | | Display Resolution | 1042 x RGB x 768 | | Viewing Angles | 160° x 140° (HxV) | | Contrast Ratio | 500:1 | | Brightness | 650 cd/m² | | Colors | 16.7 million | | Interface | 3G/HD/SD-SDI input (x3, BNC)
3G/HD/SD-SDI loop-through output (x3, BNC)
RS-422/485 input (x1, RJ12)
RS-422/485 loop-through output (x1, RJ12)
Tally/GPI (x1, HD-15)
Headphone output (x3, 3.5mm)
12 VDC input (x1) | | | | System | HD-SDI, 3G/HD/SDI all standards and frame rates | | Compliance | OE, FCC-Class A, ANSI-63.4 | | Power Consumption | 5.0A @ 12VDC (40 W) | | Voltage Required | 12 VDC | | Operating Temperature | 32° - 104° F (0° - 40° C) | | Storage Temperature | -4° - 120° F (-20° - 50° C) | | Dimensions | 19" Rack Space: 4RU
W x H x D: 18.95 x 5.25 x 2.65" (48.13 x 13.34 x 6.73 cm) | | Weight | 2.26 lb (1.03 kg) | | | | Package Weight | 8.45 lb | | Box Dimensions (LxWxH) | 24.0 x 9.4 x 8.8" |
