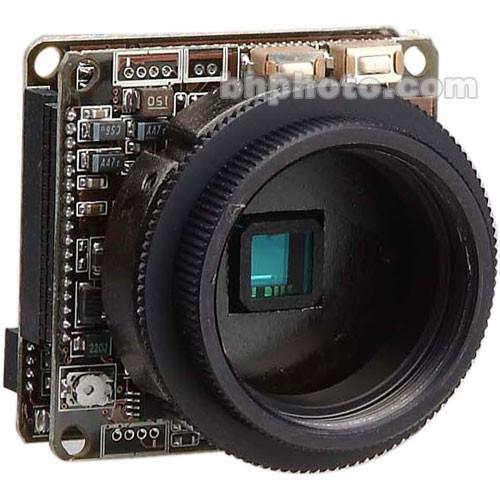

User Manual for Marshall Electronics V-1255-C CS Low Light Board Camera for Custom Installations with C CS Lens Mount Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-1255-C CS Low Light
- Product category: Industrial & Multi-Purpose Cameras Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Industrial & Multi-Purpose Cameras
|
User manual for the Marshall Electronics V-1255-C CS Low Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall V-1255-C/CS is a high-resolution color board camera for custom installations and covert applications. This model has the C/CS-lens mount for a wide variety of lenses. There are various features for setting shutter, iris, backlight and gain. The recommended power supply, the V-PS12, is sold separately. - 450 Lines of Resolution
- The V-1255-C/CS is a 1/3-inch CCD miniature video capture device with a complete set of picture controls for a variety of shooting environments. It outputs 450 lines of resolution from its RCA connector to almost any monitor or VCR. It also has controls for shutter to stop fast motion, gain for very low light environments and white balance controls to keep colors consistent in changing lighting situations.
- C-Mount Lens Feature
- The most universal lens mounting type for industrial cameras is the C/CS-mount. Both are screw-on type lens mounts. The C-mount has a 17.55 mm flange focal lenght. The CS integrates a 12.5 mm flange lenght. With a simple 5mm spacing adapter which is included, both lens types work with these cameras. And the selection of lenses is vast, from ultra-wide to super long, even zoom lenses exist in these formats. You will most probably be limited to conditions related to mounting location and how concealed the camera must remain.
- Other Configurations
- The V-1255-C/CS is so versatile that Marshall offers the same basic board camera with a built-in (non-detatchable) 4mm f/2.5 lens that is adequate for many monitoring needs. Another choice for this high quality video capture device is the V-1255-BNC which is a complete camera with a protective housing, mounting plate and the 4mm f/2.5 lens.
UPC: 801813048346 In the Box Marshall Electronics V-1255-C/CS Low Light Board Camera for Custom Installations with C/CS Lens Mount 1 Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-1255-C CS Low Light Board Camera for Custom Installations with C CS Lens Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-1255-C/CS Specs Application | Security | Signal System | NTSC | Image Sensor | 1/3-Inch CCD | Lens Mount | C-Mount and CS-Mount | Number of Pixels | Not Specified by Manufacturer | Horizontal Resolution | 450 TV Lines | Minimum Illumination | 3 Lux | Signal-to-Noise Ratio | Greater Than 46dB | Signal Connectors | Composite Video- RCA (x 1) Power- Coaxial (x 1) | Power Requirements | 12-volts DC | Power Consumption | 2.2 Watts | Operating Temperature | Not Specified by Manufacturer | Dimensions (WxHxD) | 1.5 x 1.5 x 0.81 inches 38.1 x 38.1 x 20.57 mm | Weight | 0.7 oz. 19.84 g | | Package Weight | 0.1 lb | Box Dimensions (LxWxH) | 3.0 x 2.1 x 1.9" |
