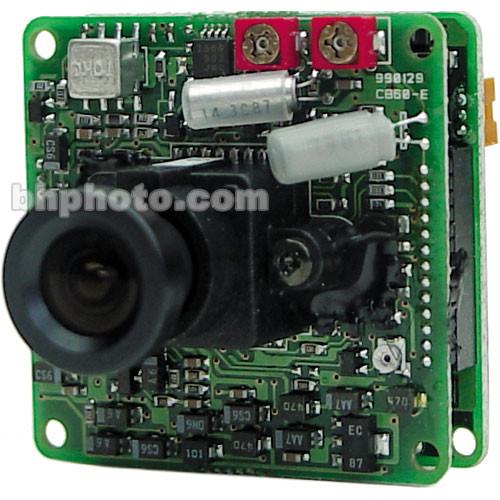

User Manual for Marshall Electronics V-1255 Low Light Color Board Camera for Custom Applications, includes 4mm f 2.5 Lens Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-1255 Low Light Color
- Product category: Industrial & Multi-Purpose Cameras Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Industrial & Multi-Purpose Cameras
|
User manual for the Marshall Electronics V-1255 Low Light Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall V-1255 is a high-resolution color board camera for custom installations and covert applications. There are various features for setting shutter, iris, backlight and gain. This model comes with a 4mm f/2.5 lens that is not removable. The recommended power supply, the V-PS12 is sold separately. - 450 Lines of Resolution
- The V-1255 is a 1/3-inch CCD miniature video capture device with a complete set of picture controls for a variety of shooting environments. It outputs 450 lines of resolution from its RCA connector to almost any monitor or VCR. It also has controls for shutter to stop fast motion, gain for very low light environments and white balance controls to keep colors consistent in changing lighting situations.
- Other Configurations
- The V-1255 is so versatile that Marshall offers the same camera with a C/CS-mount lens option. C and CS lenses are the industrial standard mount and you can choose from ultra wide, ultra long and even variable focal length zoom lenses. That model is the V-1255-C/CS. Another choice for this high quality video capture device is the V-1255-BNC which is a complete camera with a protective housing, mounting plate and the 4mm f/2.5 lens.
UPC: 801813048025 In the Box Marshall Electronics V-1255 Low Light Color Board Camera for Custom Applications, includes 4mm f/2.5 Lens 4.0mm f/2.5 Lens 1 Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-1255 Low Light Color Board Camera for Custom Applications, includes 4mm f 2.5 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-1255 Specs | Application | Security | | Signal System | NTSC | | Image Sensor | 1/3-Inch CCD | | Lens Mount | 4.0 mm f/2.5 Lens, Non-Removable | | Number of Pixels | Not Specified by Manufacturer | | Horizontal Resolution | 450 TV Lines | | Minimum Illumination | 3 Lux | | Signal-to-Noise Ratio | Greater Than 46dB | | Signal Connectors | Composite Video- RCA (x 1)
Power- Coaxial (x 1) | | Power Requirements | 12-volts DC | | Power Consumption | 2.2 Watts | | Operating Temperature | Not Specified by Manufacturer | | Dimensions (WxHxD) | 1.5 x 1.5 x 0.81 inches
38.1 x 38.1 x 20.57 mm | | Weight | 0.7 oz.
19.84 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
