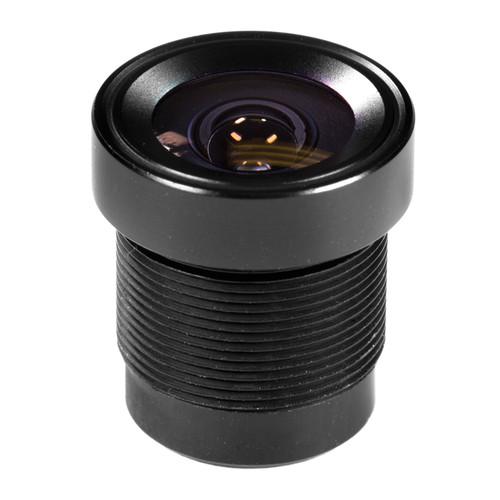

User Manual for Marshall Electronics V-4303-2.0FT 3mm f 2.0 Miniature Glass Lens for OEM, Custom Installations and Board Cameras that accept 12mm Micro Mount Lenses for 1 3-Inch CCD Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-4303-2.0FT 3mm f 2.0
- Product category: Lenses Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Lenses
|
User manual for the Marshall Electronics V-4303-2.0FT 3mm f 2.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall V-4303-2.0FT is a high quality micro-mount industrial lens for custom installations and board cameras. The lens has a full thread 12mm micro mount. Its 3mm focal length renders a wide horizontal angle of view of about 78°. Its f/2.0 allows for sharp images in controlled lighting conditions such as those found in robotics, machine vision and specialty security applications. Special optional mounting devices are available for specific manufacturer's imagers. - Mounting Adapters for Specific Purposes
- Marshall offers several special mounting adapters specifically for 12 mm micro mount lenses to interface with specific CCD/CMOS sensors. The V-LH4 is made to work with OmniVision Technology 1/3-Inch Black/White CMOS sensors. The V-LH09 is for 1/3-Inch Ominivision and Agilent CMOS Board Cameras. The V-LH08 is designed for Marshall 4300 Series Miniature Glass Lenses and Sharp 1/3-Inch Sensor Board Cameras. Completely custom mounting applications can be addressed through Marshall directly.
UPC: 801813062519 In the Box Marshall Electronics V-4303-2.0FT 3mm f/2.0 Miniature Glass Lens for OEM, Custom Installations and Board Cameras that accept 12mm Micro Mount Lenses for 1/3-Inch CCD 1 Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-4303-2.0FT 3mm f 2.0 Miniature Glass Lens for OEM, Custom Installations and Board Cameras that accept 12mm Micro Mount Lenses for 1 3-Inch CCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-4303-2.0FT Specs | Mount | 12 mm Special Micro Mount | | Image Format | 1/3-Inch CCD | | Focal Length | 3.0 mm | | Aperture | f/2.0 | | Iris Type | Fixed | | Focus Type | Fixed | | Horizontal View Angle | 72° on 1/3-inch CCD | | Minimum Object Distance (M.O.D.) | 11.8 Inches
300 mm | | Macro | No | | Dimensions (WxHxD) | 0.55 x 0.55 x 0.70 Inches
14 x 14 x 18 mm | | Weight | 0.2 Oz.
5.9 g | | | | Package Weight | 0.02 lb | | Box Dimensions (LxWxH) | 1.0 x 0.5 x 0.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
