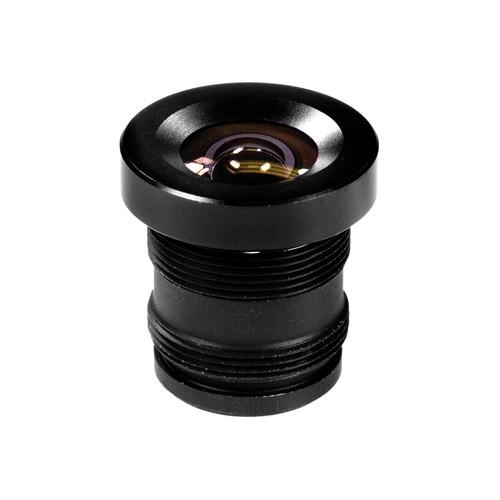

User Manual for Marshall Electronics V-4304-1 4.0mm f 2.0 Miniature Glass Lens for 1 3-Inch CCD, 12mm Micro Mount Camera Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-4304-1 4.0mm f 2.0
- Product category: Lenses Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Lenses
|
User manual for the Marshall Electronics V-4304-1 4.0mm f 2.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall V-4304-1 is one of the 4300 series of custom mount glass lenses designed for industrial applications. It comes with the 12mm micro mount thread which can fit the board cameras and some of the bullet cameras. This is a high quality lens that incorporates 4 glass elements for fine quality images. It has a fast f/2 aperture sensitive to low light levels. In addition the lens is wide and shows 58° horizontal view angle. It can close focus down to about 1.5 feet. - Custom Industrial Applications Its Specialty
- The V-4304-1 was designed to deliver top quality images for industrial applications. Robotics, machine vision and other purely custom uses can benefit from its quality. As a 4mm lens its angle of view is 58° wide. It has a minimum object distance of about 400mm (15.7"). A range of semi-custom mounting solutions are available for certain manufacturer's board cameras and imaging sensors.
UPC: 801813054200 In the Box Marshall Electronics V-4304-1 4.0mm f/2.0 Miniature Glass Lens for 1/3-Inch CCD, 12mm Micro Mount Camera 1 Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-4304-1 4.0mm f 2.0 Miniature Glass Lens for 1 3-Inch CCD, 12mm Micro Mount Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-4304-1 Specs | Mount | 12mm Special Micro Mount | | Image Format | 1/3" CCD | | Focal Length | 4.0mm | | Aperture | f/2.0 | | Iris Type | Fixed | | Focus Type | Fixed | | Horizontal View Angle | 58° on 1/3" CCD | | Minimum Object Distance (M.O.D.) | 15.7" (400mm) | | Macro | No | | Dimensions (WxHxD) | 0.6 x 0.6 x 0.6" (15 x 15 x 15mm) | | Weight | 0.19 oz (5.5g) | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 3.5 x 2.0 x 0.7" |
