User Manual for Marshall Electronics V-LCD101MD 10" Full HD Producers Monitor Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-LCD101MD 10" Full HD
- Product category: Production Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Production Monitors
 |
User manual for the Marshall Electronics V-LCD101MD 10" Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|

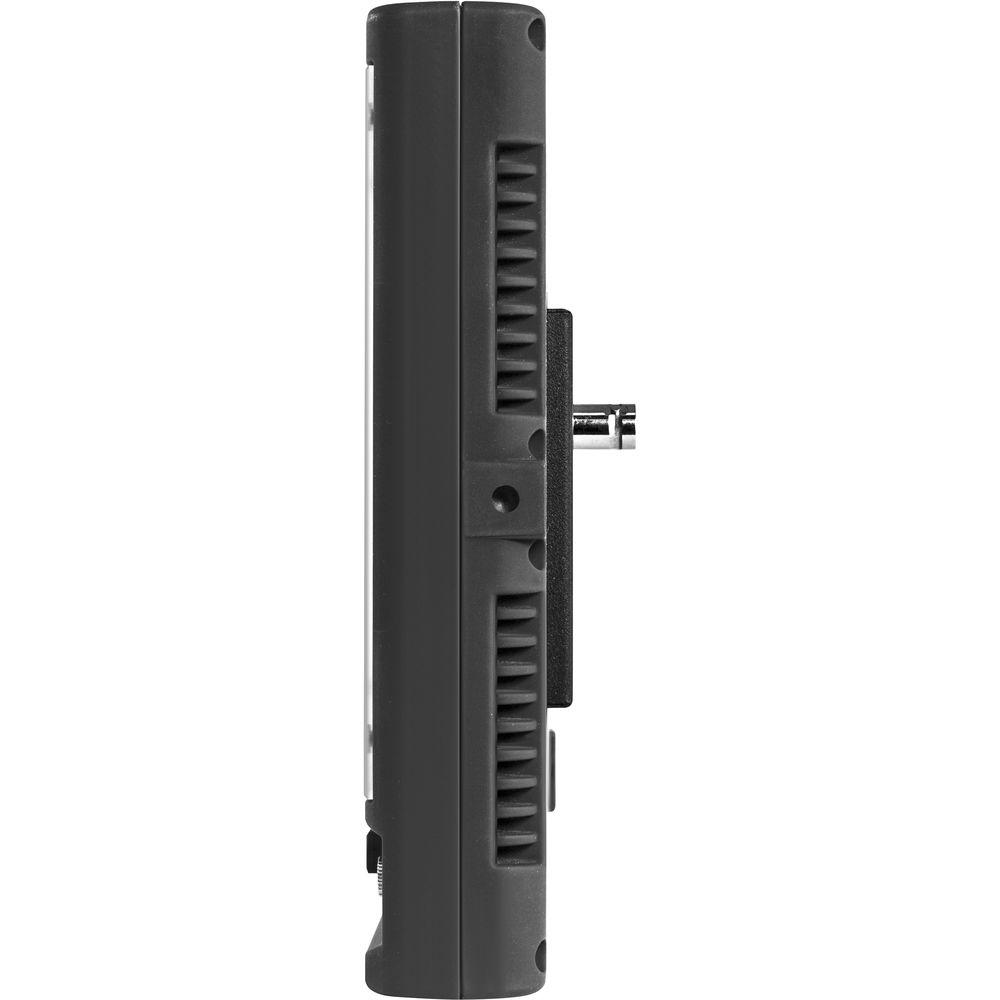

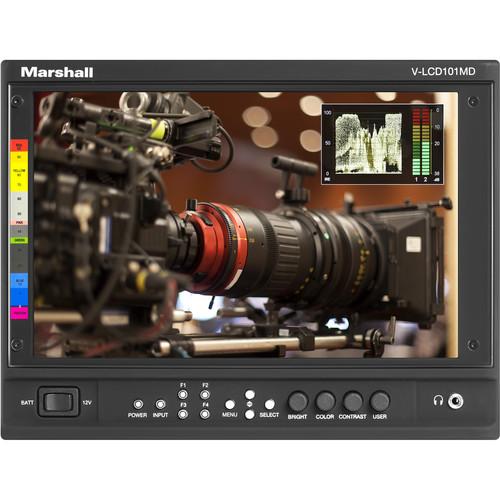

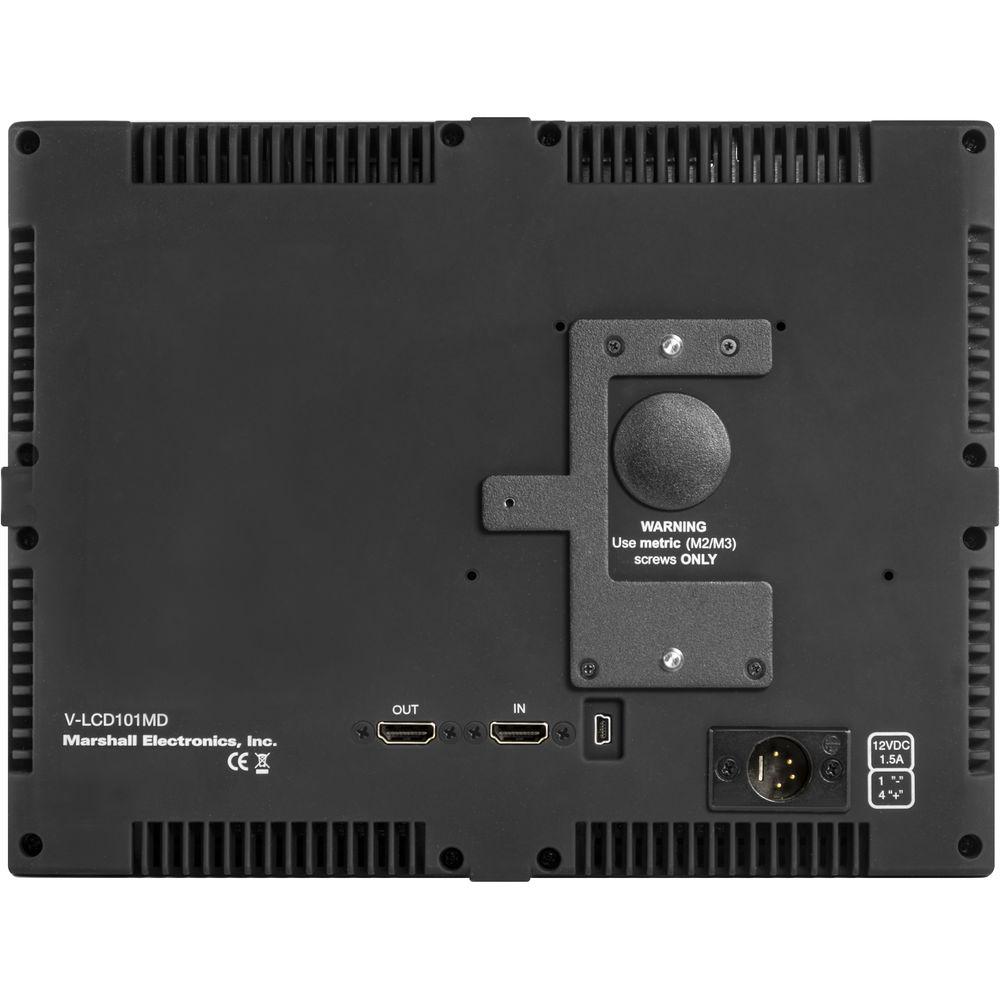

Product description The V-LCD101MD 10" Full HD Producers Monitor from Marshall Electronics is a 1080p camera top monitor with modular input/output slot. This 10.1" monitor offers 1920 x 1200 resolutions with LED Backlit panel and standard features including a wide variety of formats and markers, 4 user-configurable front panel function buttons, RGB check field / field detect, RGB gain and bias control, polycarbonate screen protection. The monitor features include multiple DSLR presets, six user presets, and an adjustable IRE Clip guide. The increase vertical pixel count allows room for under video data for custom applications. It has no pre-installed module. - Full HD 1920 x 1200 display
- HDMI input / output standard
- Allows addition of 3G-SDI input or converted output
- Waveform monitor at the push of a button
- Rugged 4-pin XLR power connector
- MD-3GE modular input slot
UPC: 801813183603 In the Box Marshall Electronics V-LCD101MD 10" Full HD Producers Monitor (No Modules) Limited 1-Year Warranty (Extends to 2-Year with Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-LCD101MD 10" Full HD Producers Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-LCD101MD Specs | Panel Size | 10.1" (25.6 cm) diagonal | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:10 | | Active Area | 8.56 x 5.35" (217.44 x 135.9 mm) | | Type | LCD panel | | Backlight Type | LED | | Brightness | 800 cd/m2 | | Contrast | 800:1 | | Color Temperature | D55, D65, D93, Linear | | Video Input Connectors | HDMI: Standard with looping output 3G-SDI/HD-SDI
MD-3GE module provides input with loop out | | Video Output Connectors | Audio Outputs: Headphones 1/8" (3.5 mm) stereo jack | | Power Voltage | 12 V nominal (accepts typical battery voltage variations) | | Consumption | 1.2 A @ 12 V (15 W peak) | | Power Switch | Front panel | | Connector | 4-pin XLR | | Compliance | CE approved | | Operating Temperature | 50 to 104°F (10 to 40°C) | | Storage Temperature | 32 to 122°F (0 to 50°C) | | Dimensions | 10.2 x 7.7 x 1.6" (26 x 19.5 x 4.1 cm) without stand | | Weight | 21 lb (9.5 kg) | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 16.0 x 10.3 x 6.6" |
