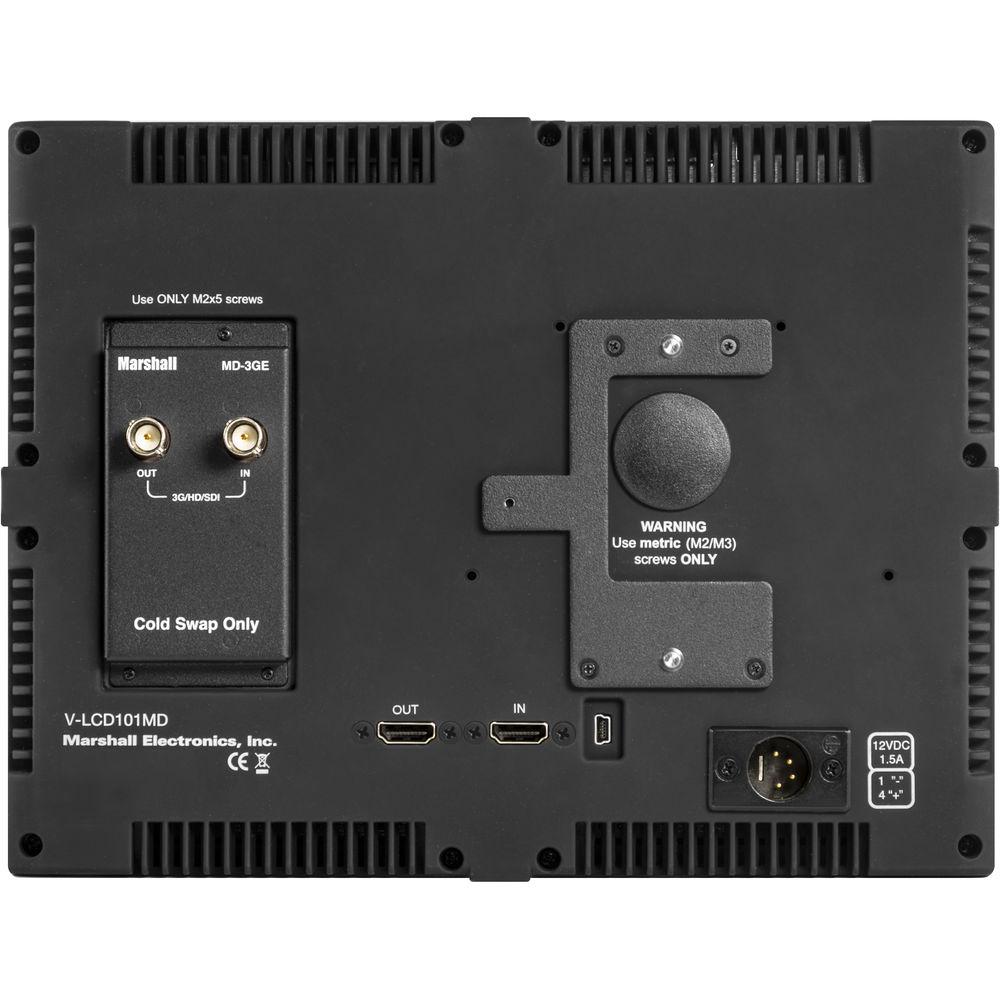

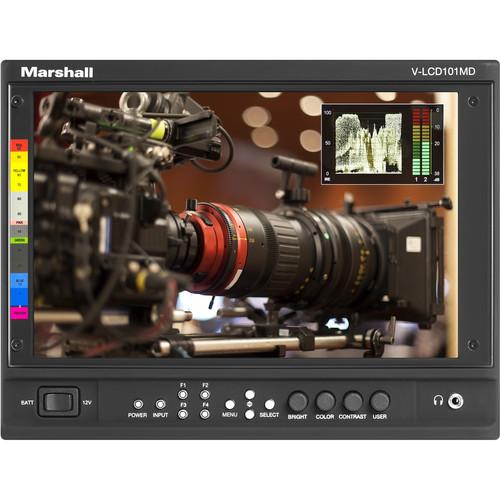

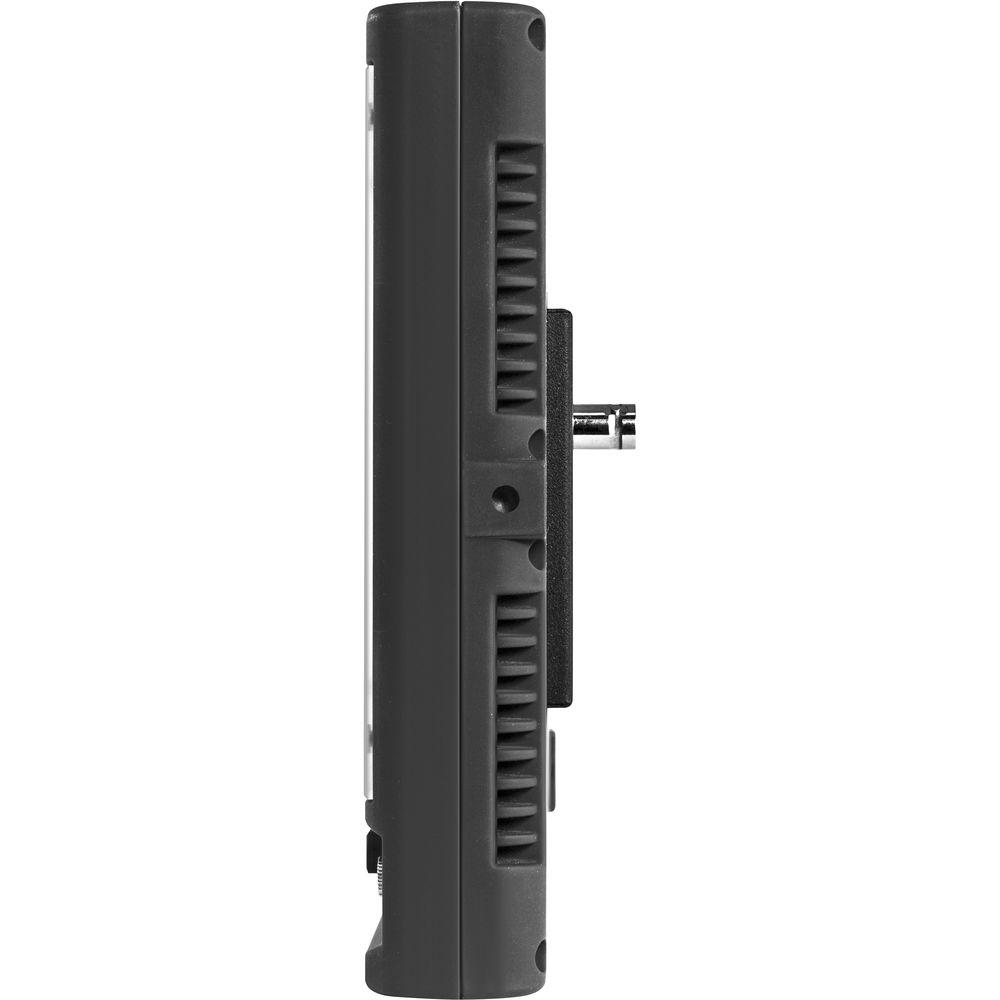

Product description The V-LCD101MD 10" Full HD Producers Monitor from Marshall Electronics is a 1080p camera top monitor with modular input/output. This 10.1" monitor offers 1920 x 1200 resolutions with LED Backlit panel and standard features including a wide variety of formats and markers, 4 user-configurable front panel function buttons, RGB check field / field detect, RGB gain and bias control, polycarbonate screen protection. The monitor features include multiple DSLR presets, six user presets, and an adjustable IRE Clip guide. The increase vertical pixel count allows room for under video data for custom applications. The V-LCD101MD includes the base unit with a pre-installed MD-3GE module providing an additional 3G/HD/SD-SDI input with loop-through. - Full HD 1920 x 1200 display
- HDMI input / output standard
- Allows addition of 3G-SDI input or converted output
- Waveform monitor at the push of a button
- Rugged 4-pin XLR power connector
- MD-3GE modular input slot
UPC: 801813183542 In the Box Marshall Electronics V-LCD101MD 10" Full HD Producers Monitor with 3G-SDI Module Limited 1-Year Warranty (Extends to 2-Year with Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-LCD101MD 10" Full HD Producers Monitor with 3G-SDI Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-LCD101MD-3G Specs | Panel Size | 10.1" (25.6 cm) diagonal | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:10 | | Active Area | 8.56 x 5.35" (217.44 x 135.9 mm) | | Type | LCD panel | | Backlight Type | LED | | Brightness | 800 cd/m2 | | Contrast | 800:1 | | Color Temperature | D55, D65, D93, Linear | | Formats | HDMI or SDI:
1080p: 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30
1080i: 50, 59.94, 60
1035i: 59.94,60
720p: 25, 29.97, 30, 50, 59.94, 60
480p: 59.94, 576p: 50
3G-SDI Level A | | Video Input Connectors | HDMI: Standard with looping output 3G-SDI/HD-SDI
MD-3GE module provides input with loop out
MD-3GO Module provides dual output only (converted from HDMI Input) | | Video Output Connectors | Audio Outputs: Headphones 1/8" (3.5 mm) stereo jack | | Power Voltage | 12 V nominal (accepts typical battery voltage variations) | | Consumption | 1.2 A @ 12 V (15 W peak) | | Power Switch | Front panel | | Connector | 4-pin XLR | | Compliance | CE approved | | Operating Temperature | 50 to 104°F (10 to 40°C) | | Storage Temperature | 32 to 122°F (0 to 50°C) | | Dimensions | 10.2 x 7.7 x 1.6" (26 x 19.5 x 4.1 cm) without stand | | Weight | 21 lb (9.5 kg) | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 16.2 x 10.5 x 6.6" |
