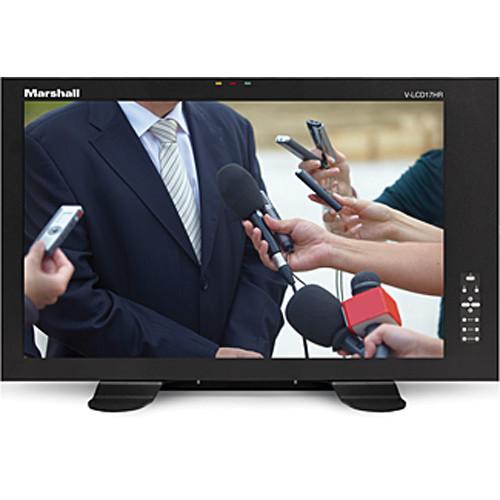

User Manual for Marshall Electronics V-LCD17HR-DVII-DT 17" LCD Desktop Monitor with DVI-I Input Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-LCD17HR-DVII-DT 17" LCD Desktop
- Product category: Production Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Production Monitors
|
User manual for the Marshall Electronics V-LCD17HR-DVII-DT 17" LCD Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The V-LCD17HR-DVII-DT 17" LCD Desktop Monitor with DVI-I Input from Marshall Electronics is designed for low-cost production or confidence monitoring. This desktop monitor provides a DVI-I input and a 15-pin Sub-D tally connector. The V-LCD17HR includes features such as Status Display, False Color Filter, Markers, Freeze Function, Color Temperature Presets, RGB Gain/Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, and user-definable function buttons.
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of external test equipment. The V-LCD17HR-DVII-DT comes included with a desktop stand. - Power Button
- Use the power button to toggle between On and Standby modes. In both the Standby and the On states, the LED on the button will illuminate bright green. This indicates that Main power is applied to the unit.
- User-Definable Function Buttons
- Two user-definable function buttons can be used for direct access to various settings. Functions are assigned using the on-screen menu.
- Menu Navigation Buttons
- Use the Menu, Up/Down, and Select buttons to display and navigate the on-screen menu.
- Image Adjustment Knobs
- Use the image adjustment knobs to adjust color brightness, color-saturation, tint, and contrast of the image. The status of each image adjustment parameter is shown on the bottom left of the screen, with values ranging from 0 to 100. Default value is 50.
- LED Tally
- Three LED tally lights (yellow, red, green) are available above the screen.
- Power Input
- Connect 12 VDC to the 4-pin XLR power input connector. Power should only be supplied from the included power supply.
- Tally Input Connector
- The LED tally can be activated via the HD-15 connector by connecting the corresponding pin to ground. A variety of external devices can be used to perform the contact closure. No additional power should be supplied to the HD-15 port.
- Desktop Mounting Holes
- Desktop mounting holes are used when attaching the monitor to the desktop stand.
- VESA 75mm Hole Pattern
- VESA-standard 75 mm hole pattern is provided to accommodate a variety of custom mounting options.
- Input Connection
- The monitor comes pre-configured with DVI-I input.
- PROG Port
- The PROG port is a service/upgrade port only. Please contact Marshall Electronics for more information.
UPC: 801813172409 In the Box Marshall Electronics V-LCD17HR-DVII-DT 17" LCD Desktop Monitor with DVI-I Input Desktop Stand V-PS12-5V-1 Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-LCD17HR-DVII-DT 17" LCD Desktop Monitor with DVI-I Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-LCD17HR-DVII-DT Specs | | | Size | 17" diagonal | | Resolution | 1920 x 1080 RGB | | Aspect Ratio | 16:10 | | Active Area | 14.5 x 9.0" (367.2 x 229.5 mm) | | Type | LCD | | Brightness | 250 cd/m2 | | Contrast | 600:1 | | Color Gamut | YUV, RGB | | Viewing Angle (CR≥10) | 140 x 130° | | Backlight Type | LED, adjustable | | | | Video Formats | 1080p, 1080i, 720p, 625i, and 525i | | Color Temperature | D65, D55, and D93 | | HDMI | N/A | | Ratio | N/A | | | | Power Input | 2-pin twist-lock | | Tally | 15-pin VGA, female | | Inputs | 1 x DVI-I | | | | Status Display | Input Status Display | | | | Voltage | 12 VDC | | Consumption | 3.5 A @ 12 VDC (42 W) | | | | Compliance | CE approved | | VESA Mount | 75 mm | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 120°F (-20 to 49°C) | | Dimensions | 18.9 x 10.4 x 1.1" (48.0 x 26.4 x 2.8 cm) | | Weight | 8.8 lb (4 kg), with rack ears | | | | Package Weight | 12.25 lb | | Box Dimensions (LxWxH) | 25.3 x 13.8 x 7.4" |
