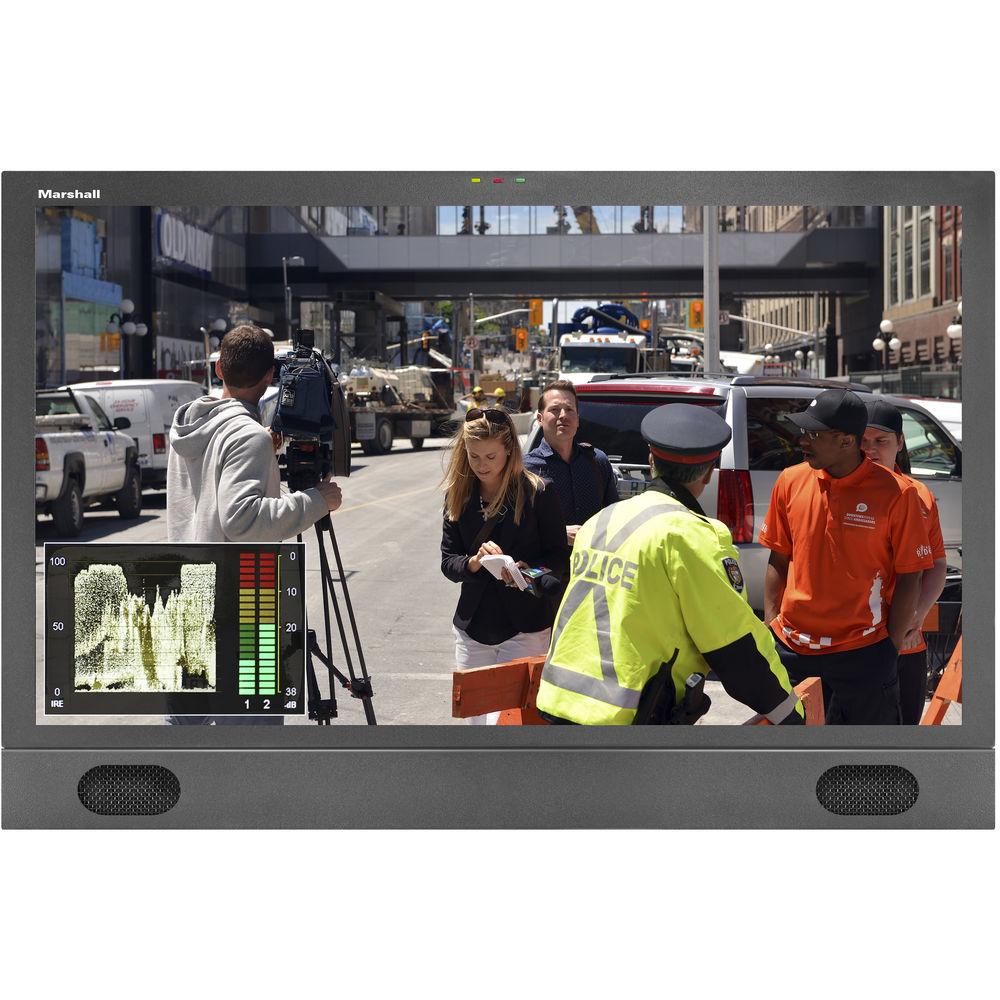

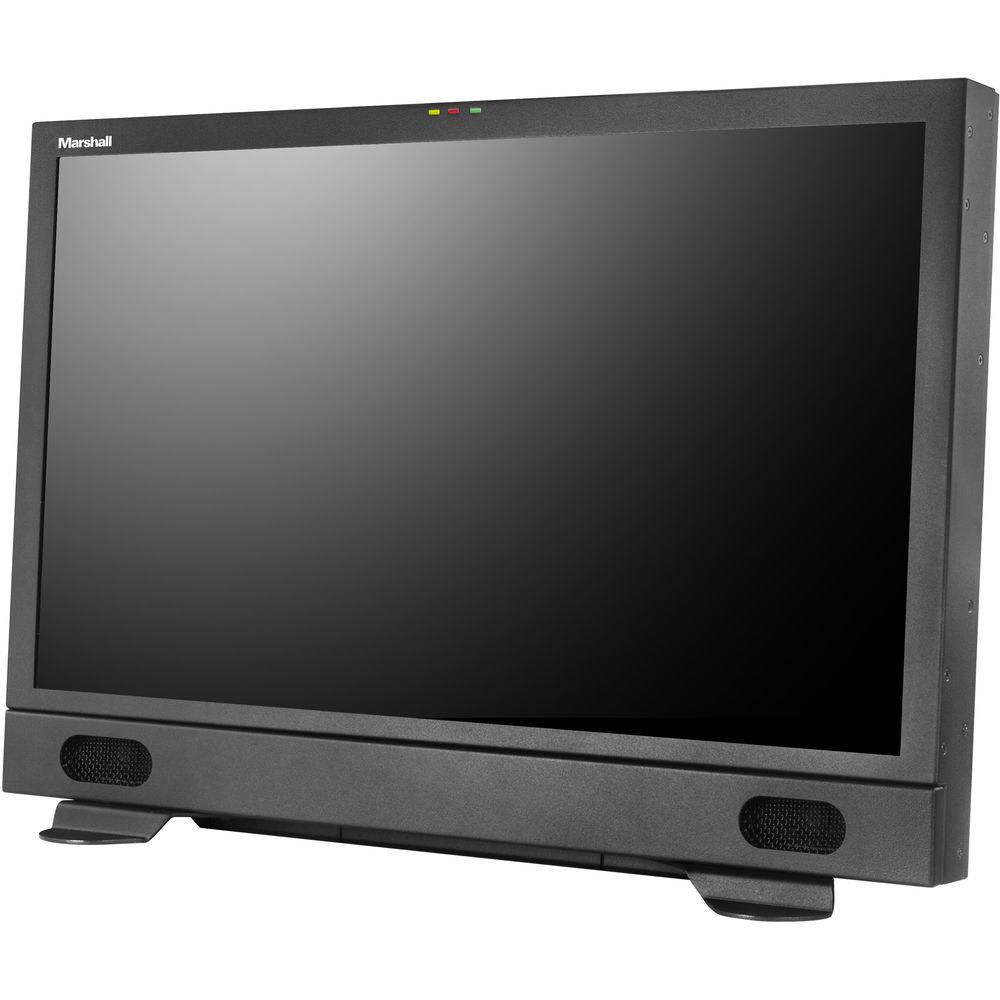

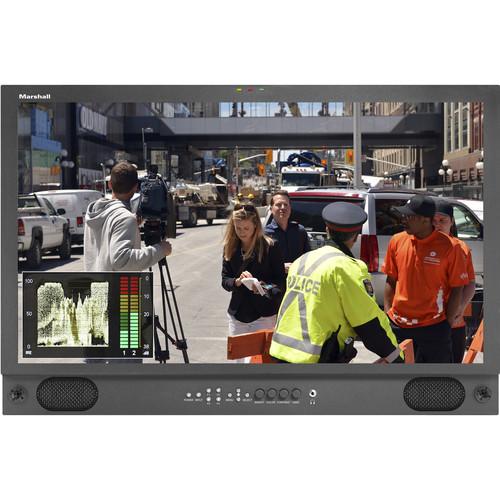

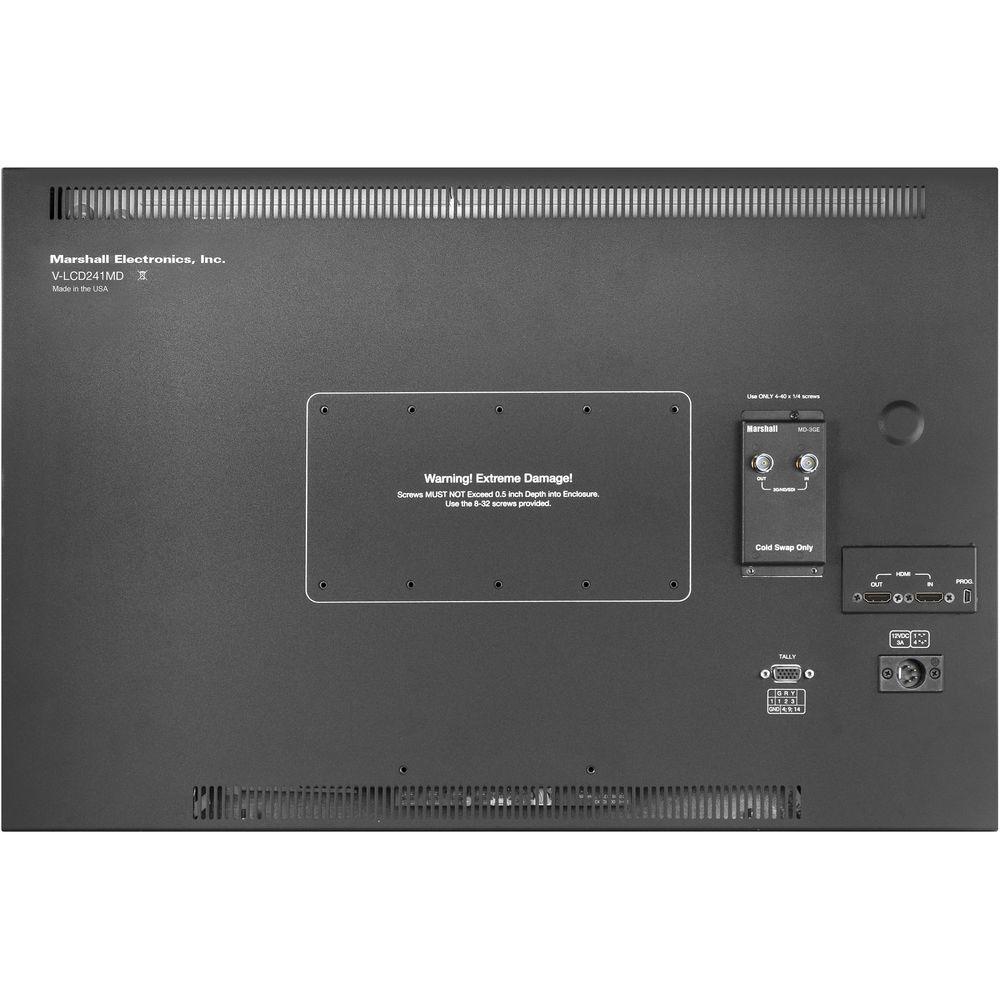

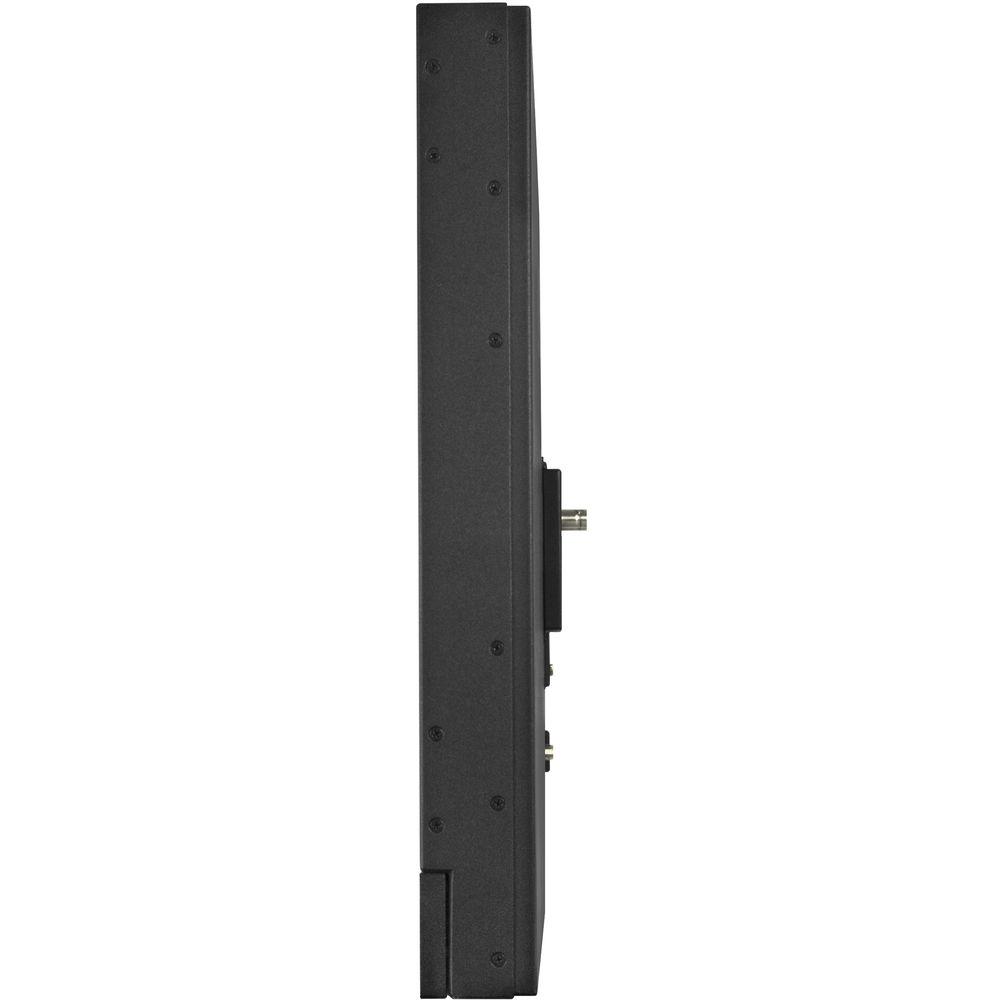

User Manual for Marshall Electronics V-LCD241MD 24" LCD Desk Rackmount Monitor with 3G-SDI Module Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-LCD241MD 24" LCD Desk
- Product category: Production Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Production Monitors
 |
User manual for the Marshall Electronics V-LCD241MD 24" LCD Desk contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The V-LCD241MD 24" LCD Desk Rackmount Monitor from Marshall Electronics features built-in waveform and audio bar overlays, loud speakers, programmable function buttons, three-color tally lights. The monitor's base unit comes pre-installed with a MD-3GE module providing an additional 3G/HD/SD-SDI input with loop-through. - Full HD 1920 x 1080 display
- HDMI input / output standard
- Allows addition of 3G-SDI input or converted output
- Waveform monitor at the push of a button
- Built-in speakers and headphone jack
- Rugged 4-pin XLR power connector
- Three color (Red, Yellow, Green) Tally LED's
UPC: 414455185166 In the Box Marshall Electronics V-LCD241MD 24" LCD Desk Rackmount Monitor with 3G-SDI Module Limited 1-Year Warranty (Extends to 2-Year with Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-LCD241MD 24" LCD Desk Rackmount Monitor with 3G-SDI Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-LCD241MD-3G Specs | Panel Size | 24" (61 cm) diagonal | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Active Area | 8.56 x 5.35" (531.36 x 298.89 mm) | | Type | LCD panel | | Backlight Type | LED | | Brightness | 300 cd/m2 | | Contrast | 3000:1 | | Color Temperature | D55, D65, D93, Linear | | Formats | HDMI or SDI: 1080p: 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30
1080i: 50, 59.94, 60
1035i: 59.94,60
720p/25, 29.97, 30, 50, 59.94, 60
480p: 59.94, 576p: 50
3G-SDI Level A | | Video Input Connectors | HDMI: Standard with looping output
3G-SDI/HD-SDI: With MD-3GE module | | Video Output Connectors | Audio Outputs: Headphones 1/8" (3.5 mm) stereo jack | | Power Voltage | 12 V nominal | | Consumption | 2 A @ 12 V (24 W peak) | | Connector | 4-pin XLR | | Compliance | CE approved | | Operating Temperature | 50 to 104°F (10 to 40°C) | | Storage Temperature | 32 to 122°F (0 to 50°C) | | Dimensions | 22.6 x 15.1 x 2.1" (57.4 x 38.3 x 5.3 cm) without stand | | Weight | 12.1 lb (5.5 kg) | | | | Package Weight | 21.35 lb | | Box Dimensions (LxWxH) | 33.0 x 21.0 x 6.0" |
