User Manual for Marshall Electronics V-LCD51 with Canon BP-511 Style Battery Kit Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-LCD51 with Canon BP-511
- Product category: On Camera Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics On Camera Monitors
 |
User manual for the Marshall Electronics V-LCD51 with Canon BP-511 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|

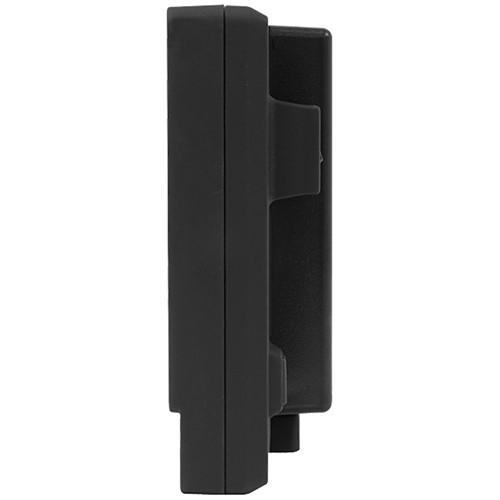

Product description The Marshall Electronics V-LCD51 with Canon BP-511 Style Battery Kit includes the V-LCD51 5” monitor, a power supply, a shoe mount, a pre-Installed battery mount, a rechargeable battery, a battery charger, the V-H50 hood, and a DSLR bracket.

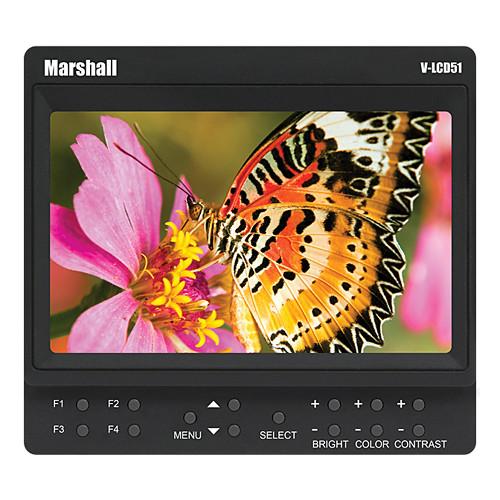

The included portable V-LCD51 5” monitor is for DSLR and video professionals seeking to capture their best shots. This compact LED-backlit monitor offers clear and crisp picture performance and broad viewing angles for users simply looking for a portable yet versatile monitoring solution.
The V-LCD51 monitor offers standard features including a wide variety of formats and markers, 4 user-configurable front panel function buttons, RGB check field / field detect, and RGB gain and bias control. It also features false color and peaking filters, along with Image flip, freeze frame, HDMI auto color space, and ratio detect.

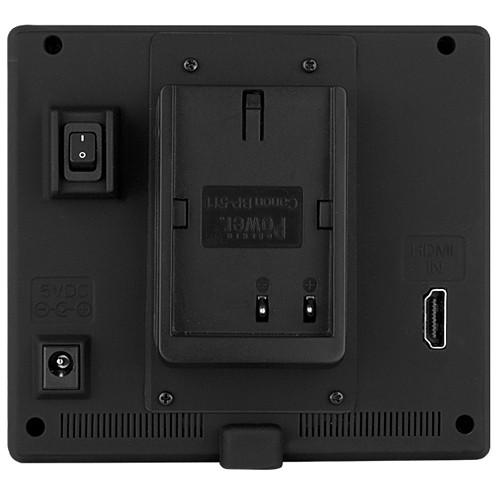

This monitor is battery-powered in the field using a pre-installed Canon BP-511 battery adaptor for flexibility and portability. The bottom 1/4”-20 mount allows this lightweight unit to be mounted to DSLRs, cranes, and jibs.
The included V-H50 Hood is designed for use with the V-LCD50 5” Monitor. UPC: 801813159738 In the Box Marshall Electronics V-LCD51 with Canon BP-511 Style Battery Kit V-LCD51 5" On-Camera Monitor V-H50 5" Monitor Hood AC Power Supply Hot Shoe Mount Pre-Installed Battery Mount Rechargeable Battery Battery Charger DSLR Bracket Limited 1-Year Warranty (Monitor Warranty Extendable to 2 Years with Product Registration) User Manual PDF 208.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-LCD51 with Canon BP-511 Style Battery Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-LCD51 Specs | | | Screen Size | 5.0" diagonal (12.7 cm) | | Display Area (H × V) | 108.0 x 64.8 mm | | Native Aspect Ratio | 15:9 | | Resolution | 800 x 480 | | Viewing Angle | L+R: 170°
U+D: 170°
H x V: 85 x 85° | | Brightness | 300 cd/m² | | Contrast Ratio | 600:1 | | Pixel Pitch (HxV) | 0.13 x 0.13 mm | | | | Input | Video HDMI: HDMI 1.2, VESA graphics modes | | | | HDMI Input Selection | HDMI: 1 x HDMI (Type A) Female | | Power Input | Coaxial power connector
Outer Diamater / Inner Diameter: 0.20 x 0.09" (5.50 x 2.50 mm) | | | | Power Consumption | 1.25 A @ 5 VDC
Maximum: 6.25 W | | Requirements | Voltage: 5 DC (5 to 12 VDC)
V-PA5V-2.0A-US:
nput: 100 to 240 V, 0.3 A, 50 to 60 Hz
Output: 5 VDC, 2.0 A, Maximum: 10 W | | | | Operating Temperature | 2 to 104°F (0 to 40°C) | | Storage Temperature | -14 to 140°F (-10 to 60°C) | | Dimensions | W x H x D: 4.86 x 4.40 x 1.84" (12.3 x 11.17 x 4.67 cm) | | Weight | Monitor Only: 0.55 lb (0.24 kg) | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 13.2 x 8.8 x 2.9" |
