Marshall Electronics V-LCD56MD 5.6" HDMI Monitor

Search your instruction manual in PDF to download

User Manual for Marshall Electronics V-LCD56MD 5.6" HDMI Monitor with 3G SDI Input Module

Click to enlarge the picture
Marshall Electronics V-LCD56MD 5.6" HDMI Monitor with 3G SDI Input Module Contents of the user manual for the Marshall Electronics V-LCD56MD 5.6" HDMI Monitor
  • Product category: On Camera Monitors Marshall Electronics
  • Brand: Marshall Electronics
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Marshall Electronics On Camera Monitors

Marshall Electronics V-LCD56MD 5.6" HDMI Monitor with 3G SDI Input Module Marshall Electronics V-LCD56MD 5.6" HDMI Monitor with 3G SDI Input Module
User manual for the Marshall Electronics V-LCD56MD 5.6" HDMI Monitor contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Marshall Electronics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!



Product description

The Marshall Electronics V-LCD56MD 5.6" HDMI Monitor with 3G SDI Input Module is a 1280 x 800 high-resolution camera-top panel, equipped with IPS technology and an adjustable LED backlight, featuring 300 nit brightness, a 500:1 contrast, an icon-driven operating system, and advanced versions of many familiar features, (and a not-so-familiar feature: DSLR Ratio Adjustment).

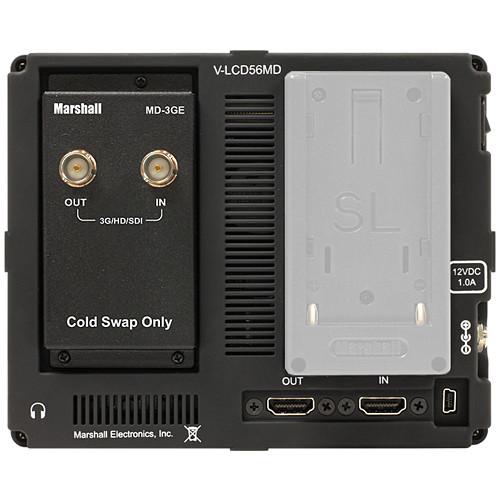

Connections are on the rear panel and consist of a modular 3G SDI input, an HDMI input and an HDMI output (and a micro USB port). The SDI input gives you 16 channels of de-embedded stereo audio and the HDMI input 8 channels. You can monitor the audio on-screen on a dual-bar Waveform display and with headphones via a stereo headphone output. The front panel has 14 buttons four of which are user configurable with 32 possible uses. For mounting, a 1/4"-20 screw-hole is available on every side of the monitor.

A polycarbonate coating protects the screen from scratches; a power supply comes included; and many different battery adapters are compatible with the monitor so you can work with most of the common batteries out there (please see specs for battery compatibility).
    DSLR Ratio Adjustment
  • Lets you scale video that does not completely fill the monitor's screen when connected by HDMI in "Record" mode on certain Canon DSLRs. You can scale DSLR video output, fill the screen, and eliminate black pillar bars with a variety of options to choose select, from Normal, to 3:2, 16:9, and Full Screen. DSLR Ratio Adjustment is programmable to one of the four user-configurable buttons on the front panel.
    Waveform and Audio
  • The LCD56MD incorporates both a Waveform display and Stereo Audio bars. These may be displayed separately or together in any one of the four corners of the monitor. The Stereo Audio is de-embedded from either the input.
    Zebra Clip Guide
  • The Zebra function visually filters parts of images under a Lower Threshold or over an Upper Threshold. Data on either side of the filters can be displayed with a custom color. Zebra can also be inverted to filter the area between the Upper and Lower Threshold. The color selected for the Lower Threshold acts as the color for all inverted Zebra data.
    Input Crop with Auto Scaling
  • The Input Crop function selects the area of active video that you would like shown on the image display. Select the desired Input by accessing the Adjust option on the screen.
    Custom Pixel-to-Pixel Panning
  • Lets you select a custom Pixel-to-Pixel zone and use the COLOR knob to move your selection LEFT and RIGHT and the CONTRAST knob to move UP or DOWN. The SELECT button locks in your selection.
    False Color
  • Helps set camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values.
    Peaking
  • Helps get the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. When the camera operator adjusts ("racks") the focus control / camera lens, different parts of the image will have these colored highlights. This indicates that this portion of the image is sharp or in focus. Final focus is achieved by racking the camera lens focus control back and forth until the desired portion of the image has the colored highlights.
    Adjustable Screen Markers
  • A variety of screen markers in 4:3, 16:9, and full screen modes allow accurate monitoring of the different aspect ratios used in broadcast environments. User Markers allow for custom aspect ratio, cropping framing, now with a choice of four colors and variable width lines.
    6 Custom Configuration Presets
  • Six User Setting Presets allow the user to save six system configuration files for later recall when needed. These configuration files will save 38 different parameters that can be adjusted by the user.
    User-Definable Function Buttons
  • Four user-definable function buttons on the front-panel allow quick access to numerous settings and features including focus-assist, false color filter, aspect ratio, screen markers, monochrome mode, color temperature, delay mode, and more.
    Stereo Headphone Output
  • You can monitor 16 channels of audio from the 3G SDI input
UPC: 302709158717 In the Box Marshall Electronics V-LCD56MD 5.6" HDMI Monitor with 3G SDI Input Module
  • Power Supply
  • Limited 1-Year Warranty, Extendable to 2-Year with Product Registration
  • User Manual PDF 512.9kb Table of Contents




    Upload User Manual

    Have you got an user manual for the Marshall Electronics V-LCD56MD 5.6" HDMI Monitor with 3G SDI Input Module in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Marshall Electronics V-LCD56MD Specs

    Screen Size 5.6" diagonal (14.2 cm)
    Connections Inputs:
    1x HDMI (HDCP compliant)
    1x 3G SDI on a rear panel module

    Outputs:
    1x HDMI (HDCP compliant pass-through)
    Aspect Ratio 16:10
    Pixel Pitch 94.5 x 94.5 um
    Resolution 1280 x 800
    Viewing Angle L+R: 170° / U+D: 170°
    Display Technology TFT LCD
    Brightness 300 nit
    Contrast Ratio 500:1
    Response Time 30 ms
    Power Consumption 9.6 Watts (0.8A @ 12V)
    Input Voltage Range 7-20 VDC
    External Battery Compatibility BP-970G, BN-V438U, CGA-D54, VW-VBG6, BP-U60, NP-QM91, NP-F970, Hytron-50, E-7S, BP-511, LP-E6, EN-EL3e
    Battery adapters are sold separately
    Mounting 4 x 1/4"-20 screw-holes
    Dimensions 6.1 x 5 x 1.45" (15.5 x 12.7 x 3.68 cm)
    Weight 1 lb (.45 kg)
    Package Weight 2.7 lb
    Box Dimensions (LxWxH) 13.8 x 7.6 x 6.1"
