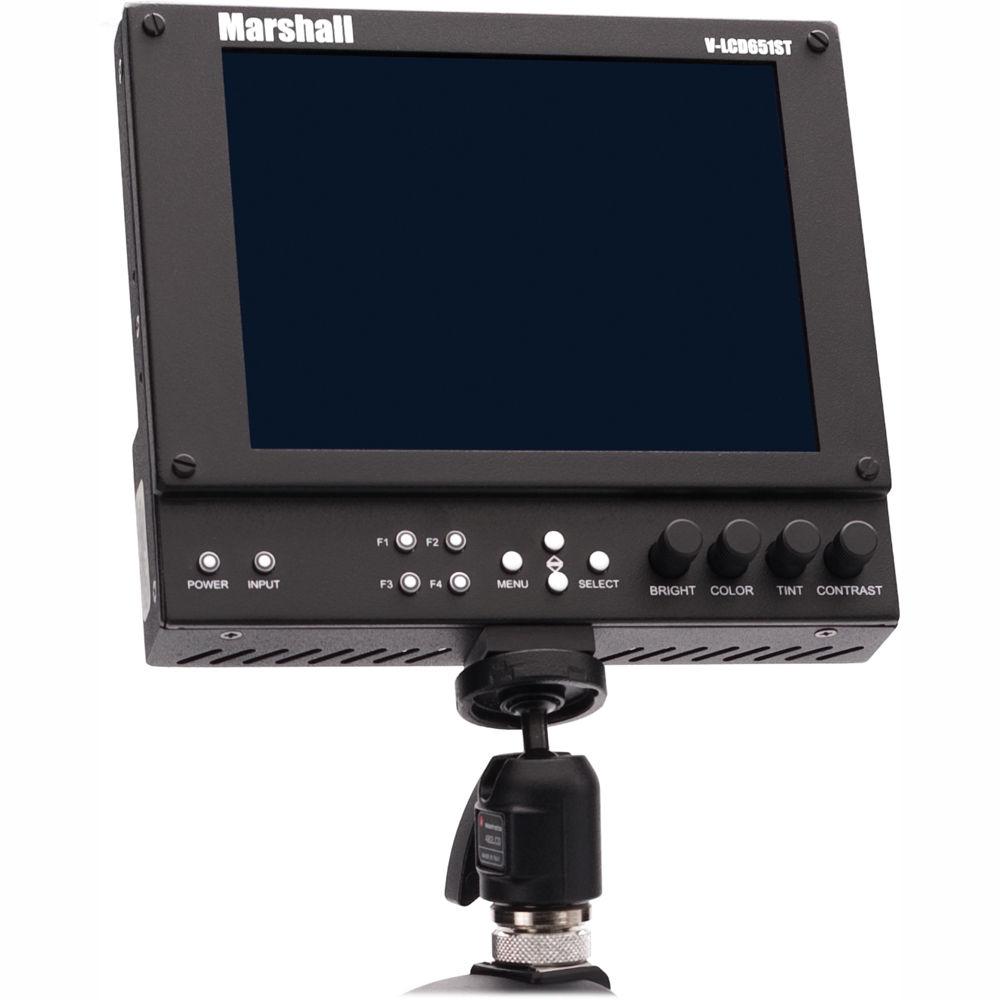

User Manual for Marshall Electronics V-LCD651STX-3GSDI-AB 6.5" Lightweight On-Camera Field Monitor Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-LCD651STX-3GSDI-AB 6.5" Lightweight On-Camera
- Product category: On Camera Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics On Camera Monitors
 |
User manual for the Marshall Electronics V-LCD651STX-3GSDI-AB 6.5" Lightweight On-Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|

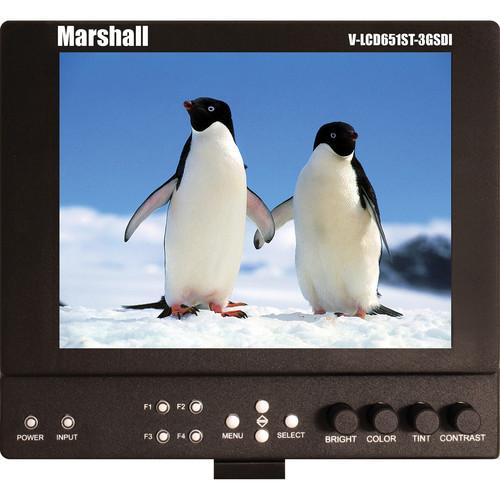

Product description Marshall's V-LCD651STX-3GSDI-AB 6.5" Lightweight On-Camera Field Monitor excels at producing perfectly exposed images under bright sunlight and other high-ambient lighting. But its advanced Super Transflective technology is only part of the story. This 2.4MP display uses 10-bit processing and 4x oversampling to provide clear and colorful images that make it the ideal on-camera imaging aid, whether replacing a camcorder's small, built-in LCD, or serving as a small director's monitor.
Flexibility is also key, starting with the monitor's inputs, which include composite, component, and 3G/HD/SD-SDI – giving you the choice of SD/HD and analog/digital. The selection of power options is even more impressive, from plugging in the included external power supply to utilizing the same batteries used in your camcorder. Other powerful features, such as RGB gain and bias control, false color, peaking, and numerous user-adjustable markers and settings, make the V-LCD651STX-3GSDI-AB truly indispensable to any location production.
This item includes the Anton-Bauer adapter plate, for use with your already existing Anton-Bauer batteries. - Super Transflective
- Designed specifically for outdoor applications with high ambient light, Marshall's outdoor super-transmissive LCDs provide improved visibility by producing high-contrast images and a wider viewing angle, even under diverse and challenging lighting environments. This innovative technology dramatically boosts the efficiency of the LCD backlight's light utilization, while maintaining extended temperature ratings and low power consumption for outdoor operation.
- False Colors
- The False Color filter is used to aid in the setting of camera exposure. As the camera iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
- Peaking Filter
- The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, all color will be removed from the display and a black-and-white image will remain. The internal processor will display RED color on the screen where sharp edges appear. When the camera operator adjusts (or "racks") the focus, different parts of the image will have RED colored edges. This indicates that this portion of the image is sharp or in focus.
- Battery Compatibility
- These units offer the ability to adapt up to nine different battery configurations for providing mobile operation in the field. This option provides flexibility when using different cameras or configurations. Marshall's large selection of battery adapters can be interchanged (or "swapped out") by the end-user.
- Scratch Resistant Screen
- As almost all professionals know, the field can often be a rough place. The LCD is built from the ground up to weather the storm. By incorporating a scratch-resistant panel, users no longer have to worry about that occasional branch making contact with the monitor.
- Why Choose Marshall vs. Cheaper Monitors?
-
- Durable, thin, and lightweight construction
- 650 cd/m² brightness, 500:1 contrast ratio
- 4 user-configurable function buttons
- RGB gain and bias control
- User-adjustable panning (Pixel-to-Pixel mode)
- Signal integrity meter
- Optional Heavy-Duty Protective Shield
- RGB Check Field / Field Detect
- 16:9, 4:3, Pixel-to-Pixel modes
- Variety of markers
- Freeze frame
- Active input loop-through/reclocked output

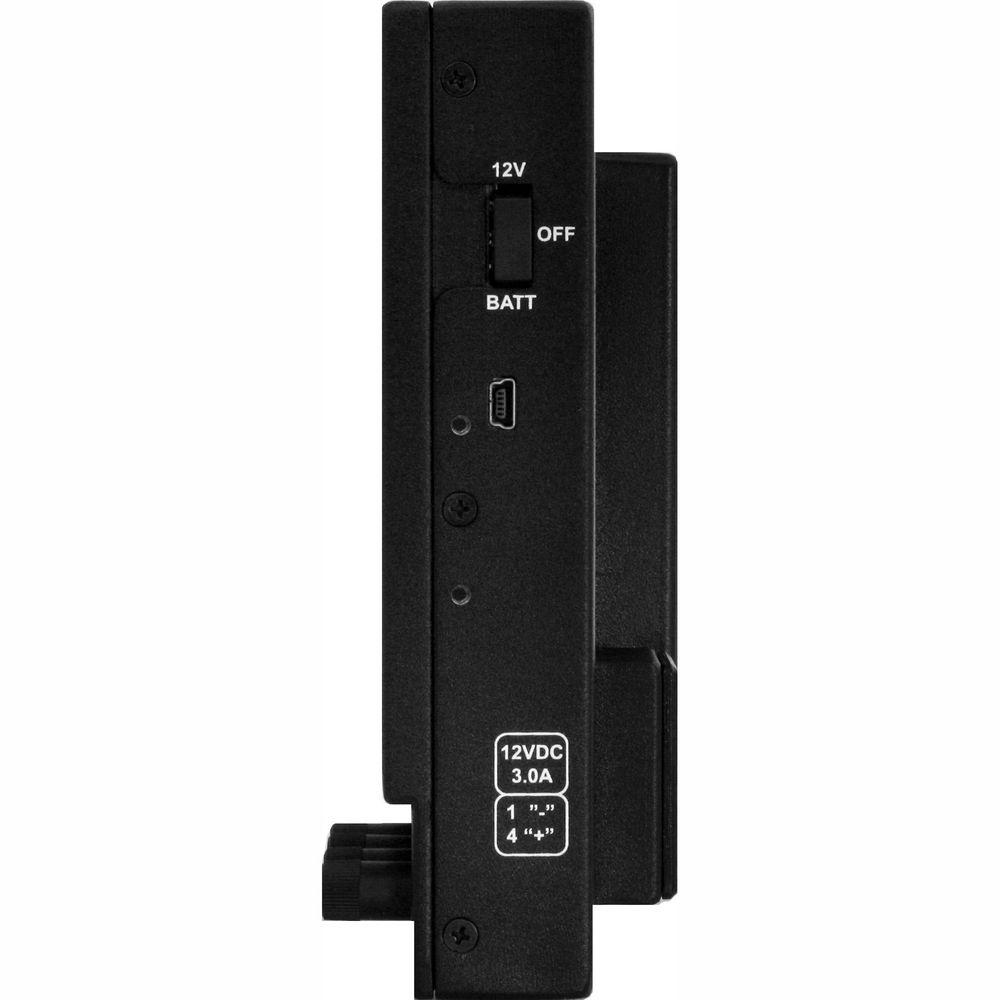

- Robust 12V 4-pin XLR power connector
- Designed, engineered, and assembled in USA
UPC: 307579144099 In the Box Marshall Electronics V-LCD651STX-3GSDI-AB 6.5" Lightweight On-Camera Field Monitor Power Adapter Anton-Bauer Battery Plate Limited 1-Year Warranty User Manual PDF 366.5kbfrezbecqxafatv Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-LCD651STX-3GSDI-AB 6.5" Lightweight On-Camera Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

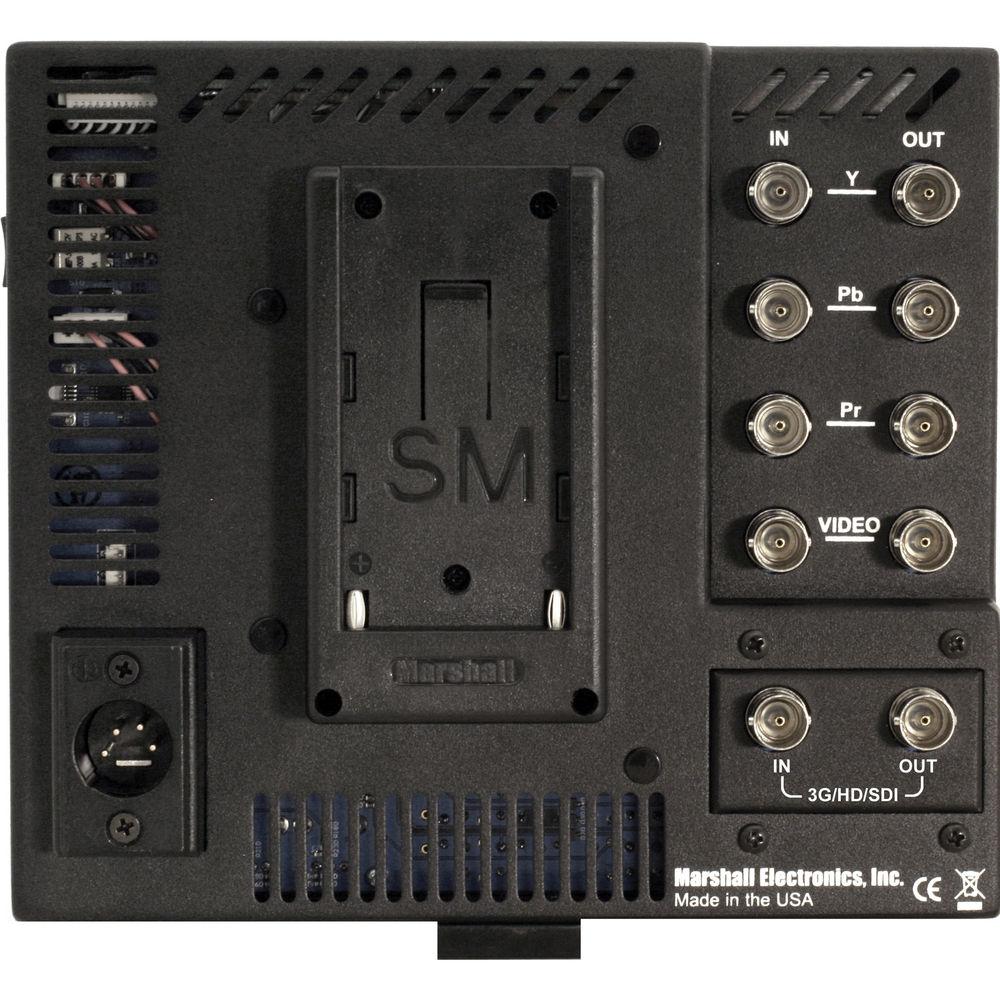

Technical parametersMarshall Electronics V-LCD651STX-3GSDI-AB Specs | Application | On-camera & Field Monitor | | LCD Size | 6.5" | | Video System | NTSC, PAL | | Picture Elements | 1024 x 768 | | Contrast Ratio | 500:1 | | Brightness | 650cd/m² | | Input and Output Connectors | Composite Video: BNC (x1 Input, x1 Output)
Component Video: BNC (x1 Input, x1 Output)
3G/HD/SDI: BNC (x1 Input, x1 Output) | | Picture Controls | Brightness, Color, Tint, Contrast, Menu, F1-F4 | | Remote Control | No | | Power Requirements | 12VDC (7-20VDC)
100-240VAC, 50/60Hz
Power Supply (XLR)
Battery (Recommended: Anton-Bauer Hytron 50 14.4V) | | Power Consumption | 12W | | Dimensions (WxHxD) | 6.8 x 6 x 1.9" (17.3 x 15.2 x 4.8cm) | | Weight | 1.3 lbs (0.6kg) | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 14.0 x 8.0 x 7.0" |
