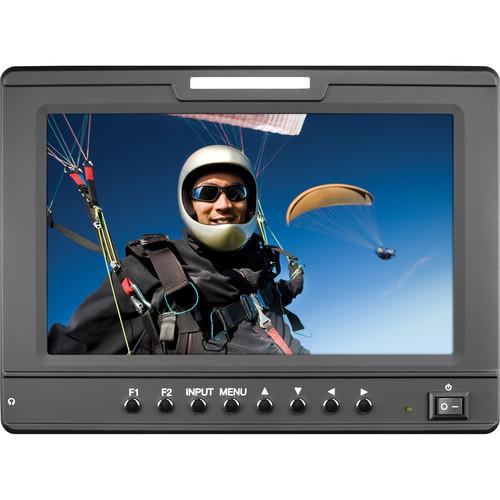

User Manual for Marshall Electronics V-LCD70-AFHD 7" LCD On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-LCD70-AFHD 7" LCD On-Camera
- Product category: On Camera Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics On Camera Monitors
 |
User manual for the Marshall Electronics V-LCD70-AFHD 7" LCD On-Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall Electronics V-LCD70-AFHD 7" LCD On-Camera 3G-SDI/HDMI Monitor features a LED-backlight LCD screen that offers 500 cd/m2 brightness and a contrast ratio of 700:1. It features HDMI, 3G-SDI, component, and composite inputs for video signals and a three-color tally for control signals.
With the false color filter, this monitor aids in the setting of camera exposure. As the camera's exposure is adjusted, elements of the image will change color based on the luminance or brightness values. Using false color provides positive feedback to under/overexposed areas as well as properly exposed mid/skin tones. This monitor also features a peaking filter to aid the camera operator in focusing. When activated, the monitor displays a black-and-white image and highlights the sharp edges on the screen with the color red. Critical focus is achieved by racking the camera lens focus control back and forth until the desired portion of the image has red colored edges. - Multiple inputs, including HDMI, 3G-SDI, component, and composite
- Three color tally (Red, Yellow, Green)
- 1/4" mounting on 4 sides plus VESA mount
- Lightweight for comfortable camera top use
- Audio level display from HDMI or SDI inputs
- Features image flip, false color level indication, peaking filter focus assist, auto HDMI CSC and HDMI ratio, pre-set gamma points, self-sensing, and re-clocked/re-shaped output for quick and easy setup
- 4-pin XLR connector for ENG power supplies
UPC: 801813173857 In the Box Marshall Electronics V-LCD70-AFHD 7" LCD On-Camera Monitor 12V, 1.5A XLR Power Supply Limited 1-Year Warranty User Manual PDF 495.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-LCD70-AFHD 7" LCD On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-LCD70-AFHD Specs | | | Screen Size | 7.0" (17.8 cm) diagonal | | Resolution | 1024 x 600 | | Aspect Ratio | 16:9 | | Active Area | 153.6 x 90 mm | | Type | LCD Panel | | Brightness | 500 cd/m2 | | Contrast Ratio | 700:1 | | Color Gamut | YUV, RGB | | Viewing Angles | CR≥10: 170 x 170° | | Backlight Type | LED | | Formats | 1080p / 1080i / 720p / 625i / 525i | | Color Temperature Presets | D65, D55, and D93 | | | | Video Input Connectors | CVBS, YPbPr, SD-SDI, HD-SDI, 3G-SDI, and HDMI | | Video Output | CVBS, YpbPr, SD-SDI, HD-SDI, and 3G-SDI | | Audio Inputs | Embedded Audio SDI, Headphones 3.5 mm, Input Status Display, Audio Bars | | Control Input | Tally / GPI - Red / Yellow / Green, controls on front panel, and user-defined function buttons | | | | Input | 12 VDC with power switch | | Consumption | 20 W | | Connector | 5.5 mm and 4-pin XLR | | | | Compliance | FCC-Class A, CE, RoHS | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Storage Temperature | -22 to 149°F (-30 to 65°C) | | Dimensions (W x H x D) | 7.5 x 5.6 x 1.2" (19.1 x 14.2 x 3.1 cm) | | Weight | 1.0 lb (0.5 kg) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 10.4 x 9.6 x 3.4" |
