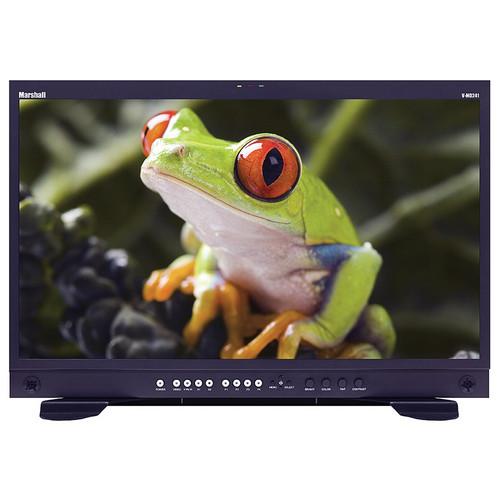

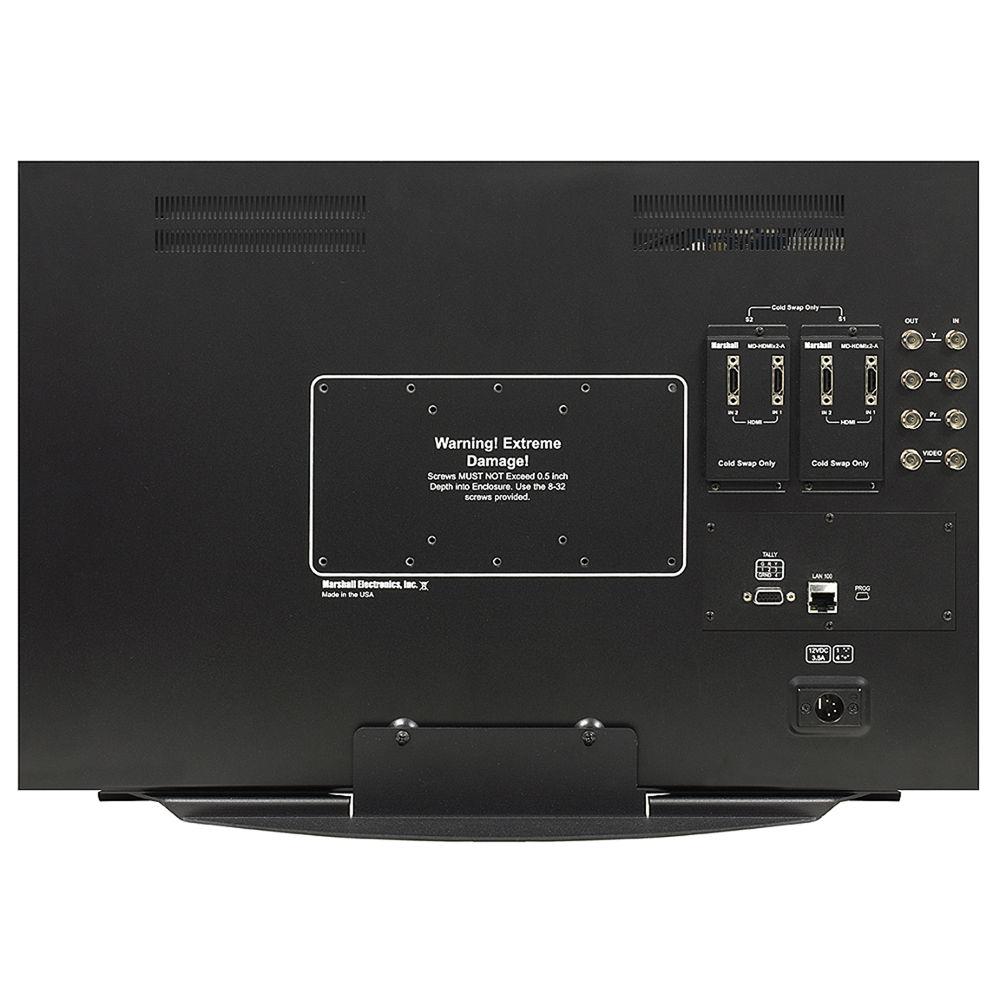

Product description With an LED backlit full HD LCD panel, the V-MD241 24" LED LCD Monitor is fit for professional SD and HD productions. The rear panel of the monitor houses Composite and Component video inputs on BNC terminals. While the Composite input only supports SD signals, the Component input supports both SD and HD resolutions in progressive, interlaced, and PsF. Digital signals from SDI or HDMI can be displayed if connected via separately available expansion modules. The front panel features menu navigation controls, display adjustments, input selection, and customizable function buttons. Monitoring tools such as false color, underscan, and color temperature can be assigned to the customizable function buttons for quick access without menu diving. Professional integration features include rack-mount compatibility, Ethernet and front-panel controls via IMD. A tally connection interfaces with illuminated indicators on the front panel above the screen. VESA-mounting can be accomplished by utilizing the 200x100mm mounting points to the rear of the monitor. Otherwise, separately available rack-mount and table stand options can be used. - Expansion Slots
- Using the expansion slots, you can customize the V-MD241 to suit your needs and utilize the full display potential of the panel. Various digital input/output modules from HDMI, SDI, DVI, and optical are separately available.
- General Features
-
- Loss of input curtain
- D65, D55, and D93 color temperature selection
- Adjustable H/V delay
- Underscan
- Tally
- False color
- Pixel-to-pixel view
- Self-sensing inputs
- Signal re-clocking
UPC: 801813159479 In the Box Marshall Electronics V-MD241 24" LED LCD Monitor Power Supply Limited 1-Year Warranty Manual PDF 487.7kbwqyewbedxrzwazvstvyazvzbfaruxwrvcrbv Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-MD241 24" LED LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-MD241 Specs | | | Size | 24" diagonal | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Active Area | 20.92 x 11.77" / 531.36 x 298.89 mm | | Type | LCD | | Brightness | 300 cd/m² | | Contrast Ratio | 3000:1 | | Color Gamut | YUV, RGB | | Viewing Angle | 178° | | Backlight Type | LED (adjustable) | | | | Video Inputs | 1 x BNC Composite Video (CVBS)
1 x 3BNC Component Video (YPbPr)
Other input options via separately available cold-swap modules | | Video Outputs | 1 x BNC Composite Video (CVBS)
1 x 3BNC Component Video (YPbPr)
Other output options via separately available cold-swap modules | | Other Inputs/Outputs | Tally
Ethernet
PROG (service only) | | | | Voltage | 12 VDC | | Consumption | 42 W (12 V, 3.5 A) | | Connector | 4-pin XLR | | | | Compliance | CE | | Environmental | Operating Temperature: 32 to 104 °F / 0 to 40°C
Storage Temperature: -4 to 120°F / -20 to 49°C | | Dimensions | 22 x 14.7 x 1.5" / 559 x 372 x 38 mm | | Weight | 11 lb / 5 kg | | | | Package Weight | 20.05 lb | | Box Dimensions (LxWxH) | 33.0 x 21.0 x 5.0" |
