User Manual for Marshall Electronics V-MD434-3GSDI 4.3" Quad Rack Mount Monitor Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-MD434-3GSDI 4.3" Quad Rack
- Product category: Production Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Production Monitors
 |
User manual for the Marshall Electronics V-MD434-3GSDI 4.3" Quad Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|

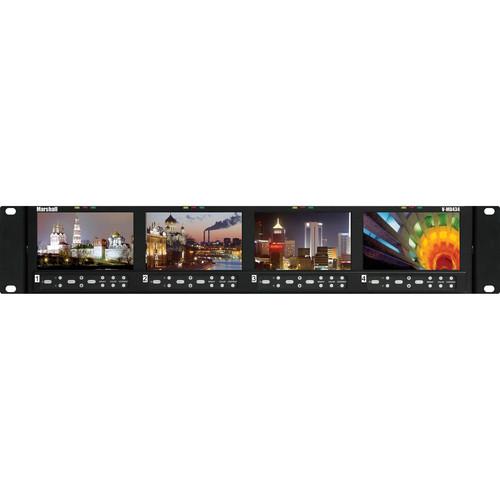

Product description As part of its award-winning MD series of rack mount monitors, the Marshall V-MD434-3GSDI is an active matrix LCD unit with four 4.3" LCD panels sporting bright 800 x 480 screens. An additional modular slot per screen makes the unit configurable with a variety of video inputs, which can be swapped out depending on a project's needs--making the V-MD171 effectively "future-proof."
Along with its 3G/HD/SDI input module, this HD monitor is among the first to provide direct fiber optic video inputs, utilizing TeleCube fiber modules to deliver pristine signal quality in a wide range of digital rates. Its flexibility makes it ideal for any number of applications, including sports and live broadcasts. - Modular Solution

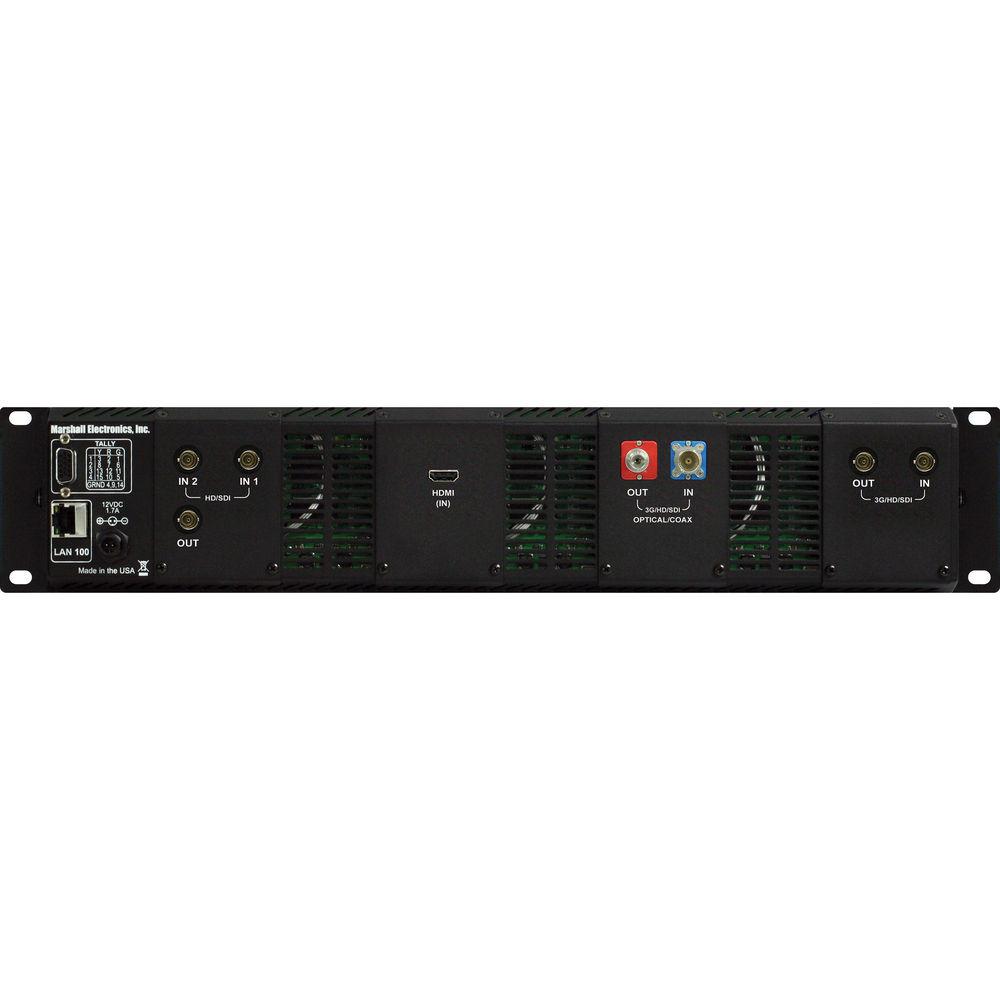

- The MD series of rack mount monitors offer a flexible modular solution to system integration. These rack-mountable monitors can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the need to upgrade or replace equipment when a different input or application is required.
- Direct Fiber Optic Video Inputs
- Marshall's MD monitors integrate Telecast Fiber System's TeleCube Fiber-Optic HD/SDI transmission input/output modules. These fiber modules deliver the industry's broadest range of digital rates while maintaining pristine signal quality that broadcasters and integrators demand.
- Full 3G/HD/SDI Support
- With broadcast production facilities looking to the future with 3Gb/s SDI integration, Marshall fills the void with new fully-featured, high-end monitors with full 3G/HD/SDI support. For distances beyond 150 meters, fiber-optic signaling may be required. To fulfil this need, Marshall looked to Telecast Fiber Systems, the company that developed fiber-optic video technology for television broadcast production.
- Professional Features

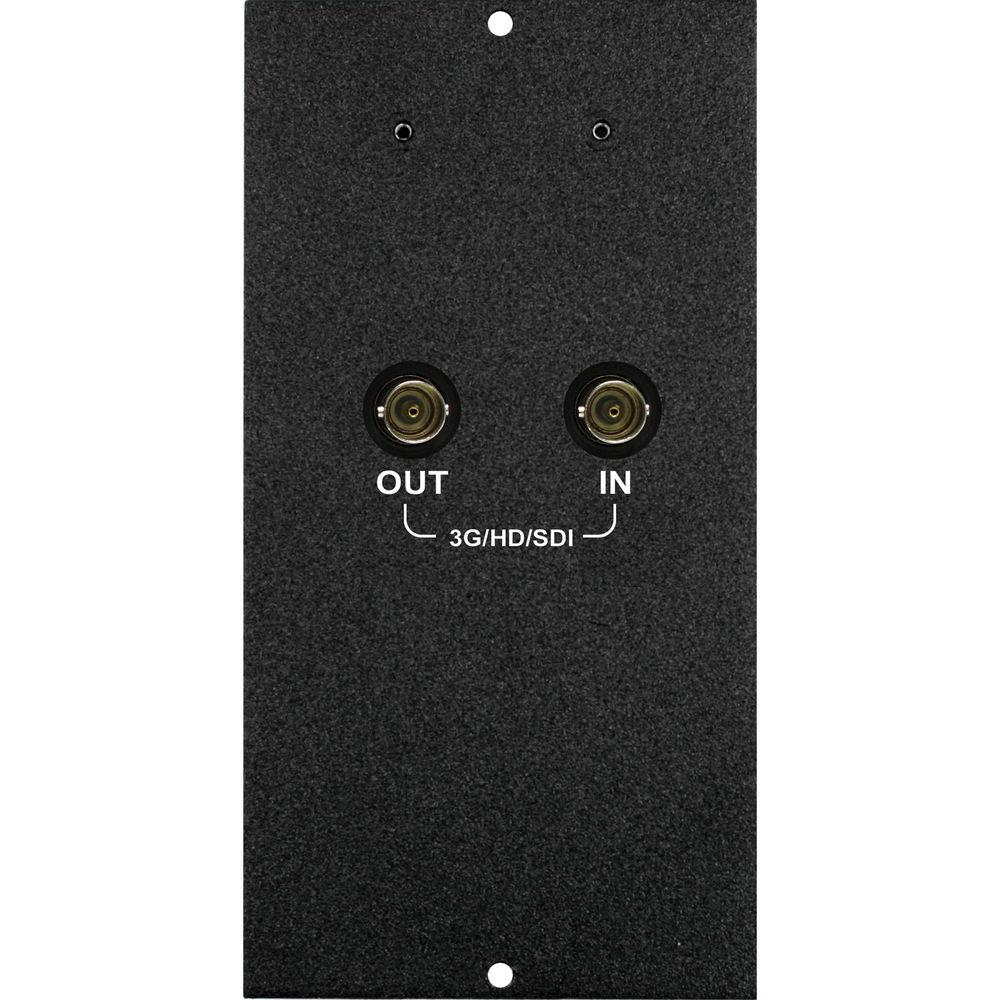

- All models include Status Display, False Color Filter, Markers, Freeze Function, Color Temperature Presets, RGB Gain/Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, and more. A variety of modules will become available, including 3G/HD/SDI with loop-through, Fiber-Optic input/output modules, and more.
UPC: 801813140101 In the Box Marshall Electronics V-MD434-3GSDI 4.3" Quad Rack Mount Monitor Power Supply Limited 1-Year Warranty, Extendable to 2-Year with Product Registration User Manual PDF 785.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-MD434-3GSDI 4.3" Quad Rack Mount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-MD434-3GSDI Specs | Application | Studio, OB Van, Broadcast | | Video System | NTSC, PAL, 720p, 1080i, 1080p | | LCD Size | (4) 4.3" | | Resolution | (4) 800 x 480 | | Brightness | 200cd/m2 | | Contrast Ratio | 400:1 | | Viewing Angle | Not specified by manufacturer | | Input and Output Connectors | (4) 3G/HD/SDI | | Picture Controls | Menu System | | Remote Control | None | | Power Requirements | Not Specified By Manufacturer | | Power Consumption | Not Specified By Manufacturer | | Dimensions (WxHxD) | 17.1 x 3.45 x 1.23" (43.4 x 8.8 x 3.1cm) | | Weight | Not Specified By Manufacturer | | | | Package Weight | 6.2 lb | | Box Dimensions (LxWxH) | 24.0 x 9.3 x 8.8" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
