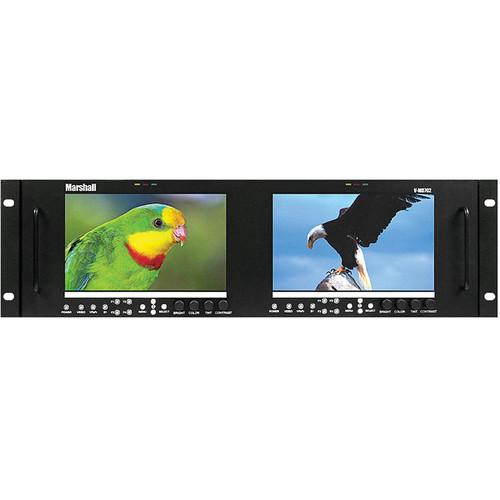

Product description The Marshall Electronics V-MD702 Dual High Resolution LCD Rack Mount Monitor (7"), with 2 LED-backlit LCDs and modular input and output, delivers high quality images at a resolution of up to 800 x 480. It offers a contrast ratio of 600:1, a brightness rating of 450 cd/m², and a wide viewing angle of 85 x 85° (H x V) that allows you to view the images clearly even from room corners or when the display is mounted at a height.
Featured freeze function enables you to bring an image to a still position. The V-MD702 LCD Monitor has an aspect ratio of 16:9, and can automatically adapt to the input resolution of the incoming video signal. The distance between the dots of the same color inside the display screen is described with the help of 0.1905 x 0.1905 mm pixel pitch. With RGB bias and gain function, the LCD monitor allows for fine tuning of color balance levels and facilitates color matching with other types of monitors. The false color filter function allows you to set the correct camera exposure levels.
Equipped with pixel-to-pixel mode, the LCD monitor displays images in their native resolution by avoiding the monitor’s internal scaling function. The check field mode allows you to analyze the individual color components of a picture. The monochrome mode displays only grayscale image by disabling all colors, and in blue, green, and red check field modes only the selected color is displayed.
With marker settings, you can control all on-screen markers, and this is also applicable for center marker, full screen markers, 16:9 markers, and 4:3 markers. Featured mosquito filter removes mosquito noise (distortion that appears near crisp edges of objects) that arises due to compression of video. The ratio settings allows for switching between full screen, 4:3, and 16:3 aspect ratios. The Blue only feature switches red and green scan guns to produce an image made only from a blue scan gun.
The V-MD702 Dual High Resolution LCD Rack Mount Monitor incorporates user-programmable F1, F2, F3, and F4 to assign various functions like ratio, check field, mosquito filter, false colors, freeze input, aspect markers, center marker, marker enable, pixel-to-pixel as required. It features an Ethernet port on the back to provide complete access to all the settings. - Delivers high quality images at a resolution of up to 800 x 480
- Offers a contrast ratio of 600:1, a brightness rating of 450 cd/m², and a wide viewing angle of 85 x 85° (H x V) that allows you to view the images clearly even from room corners or when the display is mounted at a height
- Freeze function enables you to bring an image to a still position
- Can automatically adapt to the input resolution of the incoming video signal with aspect ratio of 16:9
- Distance between the dots of the same color inside the display screen is described with the help of 0.1905 x 0.1905 mm pixel pitch
- RGB bias and gain function allows for fine tuning of color balance levels and facilitates color matching with other types of monitors
- False color filter function allows you to set the correct camera exposure levels
- Pixel-to-pixel mode displays images in their native resolution by avoiding the monitor's internal scaling function
- Check field mode allows you to analyze the individual color components of a picture
- Monochrome mode displays only grayscale image by disabling all colors, while in blue, green, and red check field modes only the selected color is displayed
- Marker settings controls all on-screen markers and is applicable for center marker, full screen markers, 16:9 markers and 4:3 markers
- Ratio settings allows for switching between full screen, 4:3, and 16:3 aspect ratios
- Mosquito filter removes mosquito noise (distortion that appears near crisp edges of objects) that arises due to compression of video
- Blue only feature switches red and green scan guns to produce an image made only from a blue scan gun
- Incorporates user-programmable F1, F2, F3, and F4 to assign various functions like ratio, check field, mosquito filter, false colors, freeze input, aspect markers, center marker, marker enable, pixel-to-pixel as required
- Features an Ethernet port on the back to provide complete access to all the settings
- Incorporates color temperature presets, hard tally features
- Features composite, component inputs
UPC: 801813142846 In the Box Marshall Electronics V-MD702 Dual High Resolution LCD Rack Mount Monitor (7") V-PS12-5V-1 Twist Lock Connector Operating Instructions Limited 1-Year Warranty, Extends to 2 Years with Registration Manual PDF 398kbfrrxbtceqcfxstdwydvvxut Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-MD702 Dual High Resolution LCD Rack Mount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-MD702 Specs | Display Area | 7" x 2 | | Resolution | 800 x 480 | | Aspect Ratio | 16:10 | | Pixel Pitch | 0.1905 x 0.1905 mm (H x V) | | Brightness | 450cd/m² | | Contrast Ratio | 600:1 | | Inputs | Composite, Component | | Slots | Number of Optional Input Slots - 1 (per screen) | | Dimensions | 18.9 x 5.2 x 1.2" (480 x 132 x 30.4 mm) | | Weight | 5lb (2.2kg) | | Power Consumption | 3 Amp @ 12VDC | | | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 24.1 x 9.2 x 9.0" |
