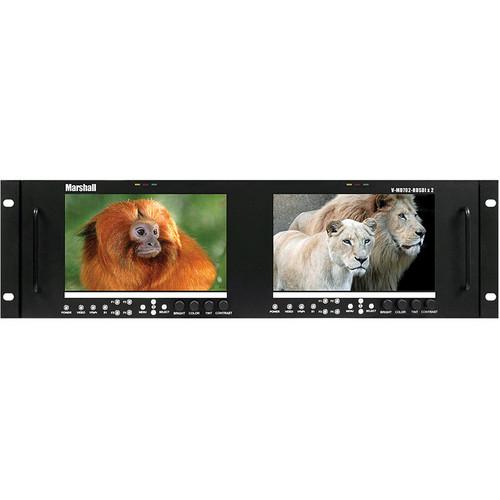

User Manual for Marshall Electronics V-MD702-HDSDIX2 Dual Rack Mount LCD Monitor Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-MD702-HDSDIX2 Dual Rack Mount
- Product category: Production Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Production Monitors
|
User manual for the Marshall Electronics V-MD702-HDSDIX2 Dual Rack Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall Electronics V-MD702-HDSDIX2 Dual Rack Mount LCD Monitor (7") comes with 2 MD-HDSDIX2-A modules with switched output and two 800 x 480 LED-backlit LCDs in a single configuration, thereby offering a flexible modular solution to system integration. Designed for HD capabilities, it includes HD-SDI (serial digital interface) inputs with loop through. A wide viewing angle of 140 x 100° ensures that you can view images clearly even from any corner of the room or when the display is mounted at a height. The LCD monitor offers a contrast ratio of 600:1 and a brightness rating of 450 cd/m². In addition to an aspect ratio of 16:10, the LCD monitor can automatically adapt to the input resolution of the incoming video signals.
With a pixel pitch of 0.1905 x 0.1905 mm, the V-MD702-HDSDIX2 LCD Monitor produces sharper images by displaying the finer elements of a picture. Equipped with RGB bias and gain function, the LCD monitor allows for fine tuning of color balance levels and facilitates color matching with other types of monitors. The False Color Filter function allows you to accurately set the camera exposure levels.
With the Pixel-to-Pixel mode, the V-MD702-HDSDIX2 LCD Monitor allows you to display images in their native resolution by avoiding the monitor’s internal scaling function. The featured Freeze function allows you bring the image to a standstill. You can analyze the individual color components of a picture via the Check Field function. The Monochrome mode allows you to view grayscale images by disabling all colors, and in blue, green, and red check field modes only the selected color will be displayed.
You can use the marker settings to control all on-screen markers, including the center marker, full screen markers, 16:9 markers, and 4:3 markers. Distortion that appears near crisp edges of objects due to video compression can be removed using the Mosquito filter. The ratio settings allows for switching between full screen, 4:3, and 16:3 aspect ratios. The Blue Only feature switches off red and green scan guns to produce an image made only from a blue scan gun.
Equipped with a V-MD series rack that comes with a LAN port, the Dual Rack LCD Monitor can be monitored and its front panel can be accessed via a web browser. The V-MD702-HDSDIX2 Dual High Resolution LCD Monitor incorporates user-programmable F1, F2, F3, and F4 to assign various functions like ratio, check field, mosquito filter, false colors, freeze input, aspect markers, center marker, marker enable, pixel-to-pixel mode as required. - Includes 2 MD-3GSDI-A modules with switched output and two 800 x 480 LED-backlit LCDs in a single configuration, thereby offering a flexible modular solution to system integration
- Designed for HD capabilities and includes HD-SDI (serial digital interface) inputs with switched output
- Wide viewing angle of 140 x 100° allows images to be clearly viewed even from any corner of the room or when the display is mounted at a height
- Offers a contrast ratio of 600:1 and a brightness rating of 450 cd/m²
- Offers an aspect ratio of 16:10
- Can automatically adapt to the input resolution of the incoming video signals
- Offers a pixel pitch of 0.1905 x 0.1905, thereby producing sharper images by displaying the finer elements of a picture
- RGB bias and gain function - allows for fine tuning of color balance levels and facilitates color matching with other types of monitors
- False Color Filter function - allows you to accurately set the camera exposure levels
- Pixel-to-Pixel mode - allows you to display images in their native resolution by avoiding the monitor's internal scaling function
- Freeze function - allows you bring the image to a standstill
- Check Field function - allows you to analyze the individual color components of a picture
- Monochrome mode - allows you to view grayscale images by disabling all colors, and in blue, green, and red check field modes only the selected color will be displayed
- Marker settings - allows you to control all on-screen markers, including the center marker, full screen markers, 16:9 markers, and 4:3 markers
- Mosquito filter - removes distortion that appears near crisp edges of objects due to video compression
- Ratio settings - allows for switching between full screen, 4:3, and 16:3 aspect ratios
- Blue Only feature - switches off red and green scan guns to produce an image made only from a blue scan gun
- Includes V-MD series rack that comes with a LAN port
- Can be monitored and its front panel can be accessed via a web browser
- Incorporates user-programmable F1, F2, F3, and F4 to assign various functions
- Incorporates color temperature presets, hard tally, IMD (In-Monitor Display) features
- Features composite, component inputs
- IMD and Tally Configuration - Text enable function switches on the MD text feature and displays 16 character text string on the lower part of the screen
- Customizable background, color, and text alignment
- Text enable function for controlling tally source
- Tally lights can be switched on/off and set to match text string color
- Supports SD-SDI (serial digital interface) formats - 480i 59.94, 576i 50
- Supports HD-SDI (serial digital interface) formats - 720p (60 / 59.94 / 50 / 30 / 29.97 / 25), 1080i (60 / 59.94 / 50), and 1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF)
UPC: 801813150513 In the Box Marshall Electronics V-MD702-HDSDIX2 Dual Rack Mount LCD Monitor (7") V-PS12-5V-1 12 VDC Power Supply with Twist Lock Connector rcsqtbyfcwbwbqxsbbbbeczfvvfyubvd Operating Instructions Limited 1-Year Warranty, Extends to 2 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-MD702-HDSDIX2 Dual Rack Mount LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-MD702 Specs | Display | Viewing Area - 7" x 2 | | Resolution | 800 x 480 | | Aspect Ratio | 16:10 | | Pixel Pitch | 0.1905mm x 0.1905mm | | Brightness | 450cd/m² | | Viewing Angle | 140 x 100º | | Contrast Ratio | 600:1 | | Inputs | Composite, Component, HDSDIx2 | | Connectors | Power Input - 2-Pin Twist-Lock Connector
Tally Hardware Interface - HD-15 Female
RJ45 Ethernet Port - 8P8C Female RJ45 Port | | Dimensions | 18.9 x 5.2 x 1.2" (480 x 132 x 30 mm) | | Weight | 5lb (2.26kg) | | Power Consumption | 3 Amp @ 12VDC | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 24.0 x 9.2 x 9.0" |
