Marshall Electronics V-MD72-3GSDI Dual High Resolution

Search your instruction manual in PDF to download

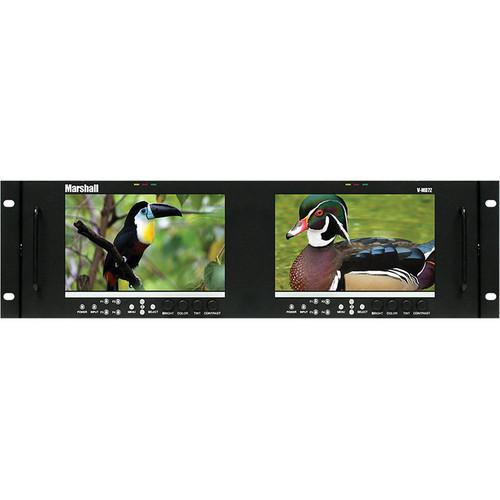

User Manual for Marshall Electronics V-MD72-3GSDI Dual High Resolution LCD Monitor

Click to enlarge the picture
Marshall Electronics V-MD72-3GSDI Dual High Resolution LCD Monitor Contents of the user manual for the Marshall Electronics V-MD72-3GSDI Dual High Resolution
  • Product category: Production Monitors Marshall Electronics
  • Brand: Marshall Electronics
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Marshall Electronics Production Monitors

User manual for the Marshall Electronics V-MD72-3GSDI Dual High Resolution contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Marshall Electronics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!



Product description

The Marshall Electronics V-MD72-3GSDI Dual High Resolution LCD Monitor (7") comes with 2 MD-3GSDI-A modules and two 800 x 480 LED-backlit LCDs in a single configuration, thereby offering a flexible modular solution to system integration. Designed for 3G capabilities, it includes 3G-SDI (serial digital interface) inputs with loop through. The LCD monitor offers a brightness rating up to 450 cd/m², and wide viewing angles allow you to view the images clearly even from room corners or when the display is mounted at a height. In addition to an aspect ratio of 16:10, the LCD monitor can automatically adapt to the input resolution of the incoming video signals.

With a pixel pitch of 0.1905 x 0.1905, the V-MD72-3GSDI LCD Monitor produces sharper images by displaying the finer elements of a picture. The featured freeze function allows you bring the image to a standstill. Equipped with RGB bias and gain function, the LCD monitor allows for fine tuning of color balance levels and facilitates color matching with other types of monitors. The false color filter function allows you to set the correct camera exposure levels. Equipped with the network function, the LCD monitor can be controlled over LAN. In addition, the network function allows you to access any function on the front panel of the monitor via any web browser.

Incorporating pixel-to-pixel mode, the V-MD72-3GSDI Dual High Resolution LCD Monitor displays images in its native resolution by avoiding the internal scaling function. The Blue only feature switches off red and green scan guns to produce images made only from a blue scan gun. You can use the marker settings to control all on-screen markers, including the center marker, full screen markers, 16:9 markers, and 4:3 markers.

In-monitor display enables on-screen text and tally indication, which can be controlled locally or remotely via support for protocols. With Text enable function, you can switch on the IMD text feature and view 16-character text string on the lower part of the screen. In addition, you can also manage the background, color, and text alignment. The tally source can also be controlled with the text enable function. In addition, the tally lights can be switched on/off and set to match text string color.

The V-MD72-3GSDI Dual High Resolution LCD Monitor incorporates user-programmable buttons to assign various functions such as false colors, freeze input, aspect markers, center marker, marker enable, and pixel-to-pixel as required.
  • Includes 2 MD-3GSDI-A modules and two 800 x 480 LED-backlit LCDs in a single configuration, thereby offering a flexible modular solution to system integration
  • Designed for 3G capabilities
  • Includes 3G-SDI (serial digital interface) inputs with loop through
  • Brightness rating of 450 cd/m²
  • Offers wide viewing angles and allows you to view the images clearly even from room corners or when the display is mounted at a height
  • Aspect ratio of 16:10 can automatically adapt to the input resolution of the incoming video signals
  • Freeze function enables you to bring an image to a standstill
  • Offers a pixel pitch of 0.1905 x 0.1905, thereby producing sharper images by displaying the finer elements of a picture
  • Freeze function enables you to bring an image to a standstill
  • RGB bias and gain function allows for fine tuning of color balance levels and facilitates color matching with other types of monitors
  • False color filter function allows you to set the correct camera exposure levels
  • Network function allows for monitor control over LAN
  • Allows you to access any function on the front panel of the monitor via any web browser
  • Pixel-to-pixel mode displays images in their native resolution by avoiding internal scaling function
  • Blue only feature switches off red and green scan guns to produce images made only from a blue scan gun
  • Marker settings controls all on-screen markers and is applicable for center marker, full screen markers, 16:9 markers, and 4:3 markers
  • In-monitor display enables on-screen text and tally indication, which can be controlled locally or remotely via support for protocols
  • IMD and Tally Configuration - text-enabled function switches on the MD text feature and displays 16 character text string on the lower part of the screen
  • Background, color, and text alignment can be managed by the operator
  • Text enable function can be used to control the tally source
  • Tally lights can be switched on/off and set to match text string color
  • Features user-programmable buttons to assign various functions such as false colors, freeze input, aspect markers, center marker, marker enable, and pixel-to-pixel as required
  • Incorporates color temperature presets, hard tally, and status display features
  • Rack mountable
  • Supports SD-SDI formats - 480i 59.94, 576i 50
  • Supports HD-SDI formats - 720p (60 / 59.94 / 50 / 30 / 29.97 / 25), 1080i (60 / 59.94 / 50), and 1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
  • Supports HD-SDI formats - 720p (60 / 59.94 / 50 / 30 / 29.97 / 25), 1080i (60 / 59.94 / 50), and 1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
  • Supports 3G-SDI formats - YCbCr/RGB (4:4:4) 10 Bit - Level A and B 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 29.97sF / 25 / 25sF / 24 / 24sF / 23.98 / 23.98sF)
UPC: 801813149081 In the Box Marshall Electronics V-MD72-3GSDI Dual High Resolution LCD Monitor (7")
  • Limited 1-Year Warranty, Extends to 2 Years with Registration
  • User Manual PDF 797.6kbvvdrrcvyazytrybwxbdfyvarfctayqwbfd Table of Contents




    Upload User Manual

    Have you got an user manual for the Marshall Electronics V-MD72-3GSDI Dual High Resolution LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Marshall Electronics V-MD702 Specs

    Display 7" x 2
    Resolution 800 x 480
    Aspect Ratio 16:10
    Pixel Pitch 0.1905mm x 0.1905mm
    Brightness 450cd/m²
    Inputs 3G-SDI
    Dimensions 18.9 x 5.2 x 1.2" (480 x 132 x 30 mm)
    Weight 5lb (2.2kg)
    Power Consumption 3 Amp @ 12VDC
    Package Weight 7.85 lb
    Box Dimensions (LxWxH) 24.3 x 9.0 x 8.5"
