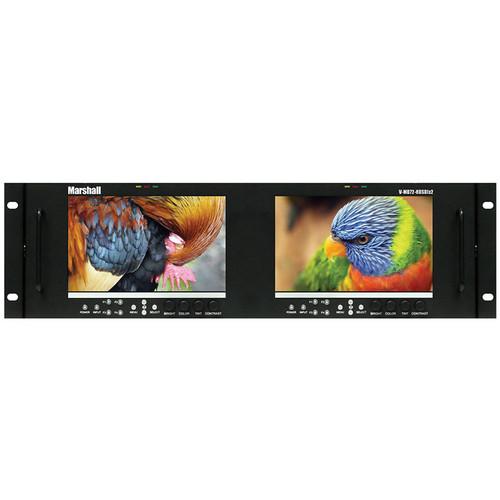

User Manual for Marshall Electronics V-MD72-HDSDIX2 Dual High Resolution LCD Monitor Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-MD72-HDSDIX2 Dual High Resolution
- Product category: Production Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Production Monitors
|
User manual for the Marshall Electronics V-MD72-HDSDIX2 Dual High Resolution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall Electronics V-MD72-HDSDIX2 Dual High Resolution LCD Monitor (7") has 2 LED-backlit LCDs, 2 MD-HDSDIX2-A Modules with switched output, and delivers high quality images at a resolution of up to 800 x 480. Designed for HD capabilities, it includes HD-SDI (serial digital interface) inputs with loop through. The LCD monitor offers a brightness rating of 450 cd/m², and wide viewing angles allow you to view the images clearly even from room corners or when the display is mounted at a height. In addition to an aspect ratio of 16:10, the LCD monitor can automatically adapt to the input resolution of the incoming video signals.
Featured freeze function enables you to bring an image to a still position. The distance between the dots of the same color inside the display screen is described with the help of 0.1905 x 0.1905 mm pixel pitch. With RGB bias and gain function, the V-MD72-HDSDIX2 LCD monitor allows for fine tuning of color balance levels and facilitates color matching with other types of monitors. The false color filter function allows you to set the correct camera exposure levels. Equipped with the network function, the LCD monitor can be controlled over LAN. In addition, the network function allows you to access any function on the front panel of the monitor via any web browser.
Incorporating pixel-to-pixel mode, the V-MD72-HDSDIX2 Dual High Resolution LCD Monitor displays images in their native resolution by avoiding the internal scaling function. The Blue only feature switches off red and green scan guns to produce images made only from a blue scan gun. With marker settings, you can control all on-screen markers, and it is applicable for center marker, full screen markers, 16:9 markers, and 4:3 markers.
In-monitor display enables on-screen text and tally indication, which can be controlled locally or remotely via support for protocols. With Text enable function, you can switch on the IMD text feature and view 16 character text string on the lower part of the screen. It also allows the user to manage background, color, and text alignment. The text enable function can also be used to control tally source. In addition, the tally lights can be switched on/off and set to match text string color.
The V-MD72-HDSDIX2 Dual High Resolution LCD Monitor incorporates user-programmable buttons to assign various functions such as false colors, freeze input, aspect markers, center marker, marker enable, and pixel-to-pixel as required. - 2 MD-HDSDIX2-A Modules with switched output
- Delivers high quality images at a resolution of up to 800 x 480
- Designed for HD capabilities
- Includes HD-SDI (serial digital interface) inputs with switched output
- Offers a brightness rating of 450 cd/m², and wide viewing angles allow you to view the images clearly even from room corners or when the display is mounted at a height
- Aspect ratio of 16:10 can automatically adapt to the input resolution of the incoming video signals
- Freeze function enables you to bring an image to a still position
- Distance between the dots of the same color inside the display screen is described with the help of 0.1905 x 0.1905 mm pixel pitch
- RGB bias and gain function allows for fine tuning of color balance levels and facilitates color matching with other types of monitors
- False color filter function allows you to set the correct camera exposure levels
- Network function allows for monitor control over LAN
- Allows you to access any function on the front panel of the monitor via any web browser
- Pixel-to-pixel mode displays images in their native resolution by avoiding internal scaling function
- Blue only feature switches off red and green scan guns to produce images made only from a blue scan gun
- Marker settings controls all on-screen markers and is applicable for center marker, full screen markers, 16:9 markers, and 4:3 markers
- In-monitor display enables on-screen text and tally indication, which can be controlled locally or remotely via support for protocols
- IMD and Tally Configuration - text enabled function switches on the MD text feature and displays 16 character text string on the lower part of the screen
- Background, color, and text alignment can be managed by the operator
- Text enable function can be used to control tally source
- Tally lights can be switched on/off and set to match text string color
- Features user-programmable buttons to assign various functions such as false colors, freeze input, aspect markers, center marker, marker enable, and pixel-to-pixel as required
- Incorporates color temperature presets, hard tally, and status display features
- Supports SD-SDI (serial digital interface) formats - 480i 59.94, 576i 50
- Supports HD-SDI (serial digital interface) formats - 720p (60 / 59.94 / 50 / 30 / 29.97 / 25), 1080i (60 / 59.94 / 50), and 1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF)
UPC: 801813149074 In the Box Marshall Electronics V-MD72-HDSDIX2 Dual High Resolution LCD Monitor (7") Limited 1-Year Warranty, Extends to 2 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-MD72-HDSDIX2 Dual High Resolution LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-MD72 Specs | Display | Viewing Area - 7" x 2 | | Resolution | 800 x 480 | | Aspect Ratio | 16:10 | | Pixel Pitch | 0.1905mm x 0.1905mm | | Brightness | 450cd/m² | | Inputs | Dual HD-SDI | | Dimensions | 18.9 x 5.2 x 1.2" (480 x 132 x 30 mm) | | Weight | 5lb (2.26kg) | | Power Consumption | 3 Amp @ 12VDC | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 24.0 x 9.3 x 8.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
