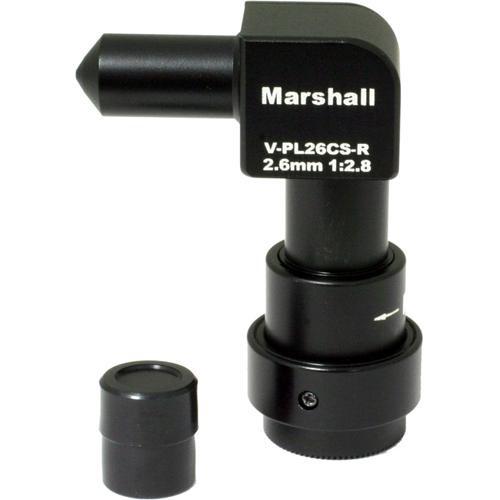

Product description The Marshall V-PL26CS-R is an amazing pinhole lens designed in the shape of a right angle. This unique configuration is highly useful in covert applications as it makes it possible to place even a large CCTV camera flat behind a wall or ceiling surface in spaces where a perpendicularly positioned camera will not fit. And because the front of the lens tapers off to a tiny opening, it only requires a hole less than 0.15 of an inch from which to see an entire room. - High Fidelity with Low Distortion
- Because of the unique shape of this lens, Marshall incorporated it with special optical elements to ensure that images come through bright and sharp.
- Compatible with 1/3", 1/4", 1/5" Sensors
- In addition to having a CS mount, this lens is compatible with 1/3", 1/4" and 1/5" sensors, making it useful for virtually any CCTV box camera on the market.
UPC: 801813112795 In the Box Marshall Electronics V-PL26CS-R 2.6mm f/2.8 CS Mount Right Angle Pinhole Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-PL26CS-R 2.6mm f 2.8 CS Mount Right Angle Pinhole Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-PL26CS-R Specs | Imager Size | 1/3" (also 1/4", 1/5") | | Mount Type | CS | | Focal Length | 2.6mm | | Aperture | F2.8 | | Iris Operation | Fixed | | Focus Operation | Fixed | | Angle of View | 1/3": 85° / 69° / 98° (H/V/D)
1/4": 63.4° / 51.7° / 73.5° (H/V/D) | | Diameter and Length | 0.6 x 3" (15 x 77.3mm) | | | | Package Weight | 0.295 lb | | Box Dimensions (LxWxH) | 3.65 x 3.2 x 2.1" |
