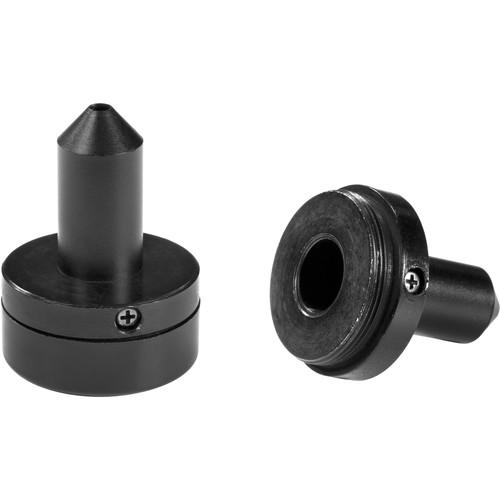

User Manual for Marshall Electronics V-PL300 CS12 30mm f 11 Wide Angle Pinhole Lens with CS-Mount for 1 3-Inch CCD Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-PL300 CS12 30mm f
- Product category: Lenses Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Lenses
|
User manual for the Marshall Electronics V-PL300 CS12 30mm f contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall V-PL300/CS12 is a wide angle pinhole lens with a CS-mount for covert surveillance applications. With its wide 30mm focal length, the lens renders a 9° horizontal angle of view. The f/11 aperture allows for excellent deep field focus. It can capture images through a tiny 1/10-inch hole in a wall or ceiling. In addition to a CS-mount the V-PL300/CS12 can also be mounted on the Marshall 12mm micro mount cameras. - As Covert As You Want to Be
- The Marshall pinhole lenses create an amazing advantage when you need to have surveillance locations as discrete as possible. The lens front dimension is an impossible 0.1 inch in diameter or about 2.5 mm. It can easily be placed in a drop ceiling or through a wall and attached to a Marshall bullet camera with a CS mount or even a Marshall board camera with a 12mm micro mount. The V-PL300/CS12 can mount on both. It can also be mounted on 1/4-inch CCD cameras that would decrease the 9° horizontal angle of view to about 6.75°.
UPC: 801813052817 In the Box Marshall Electronics V-PL300/CS12 30mm f/11 Wide Angle Pinhole Lens with CS-Mount for 1/3-Inch CCD CS-Mount Adapter 1 Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-PL300 CS12 30mm f 11 Wide Angle Pinhole Lens with CS-Mount for 1 3-Inch CCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-PL300CS-12 Specs | Mount | CS-Mount or 12 mm Special Micro Mount | | Image Format | 1/3-Inch CCD Primary
Also Applicable to 1/4-Inch CCD | | Focal Length | 30 mm | | Aperture | f/11 | | Iris Type | Fixed | | Focus Type | Fixed | | Horizontal View Angle | 9° on 1/3-inch CCD
6.75° on 1/4-Inch CCD | | Minimum Object Distance (M.O.D.) | Not Specified by Manufacturer | | Macro | No | | Dimensions (WxHxD) | 0.5 x 0.5 x 1.5 Inches
12 x 12 x 38.5 mm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 2.9 x 1.5 x 1.2" |
