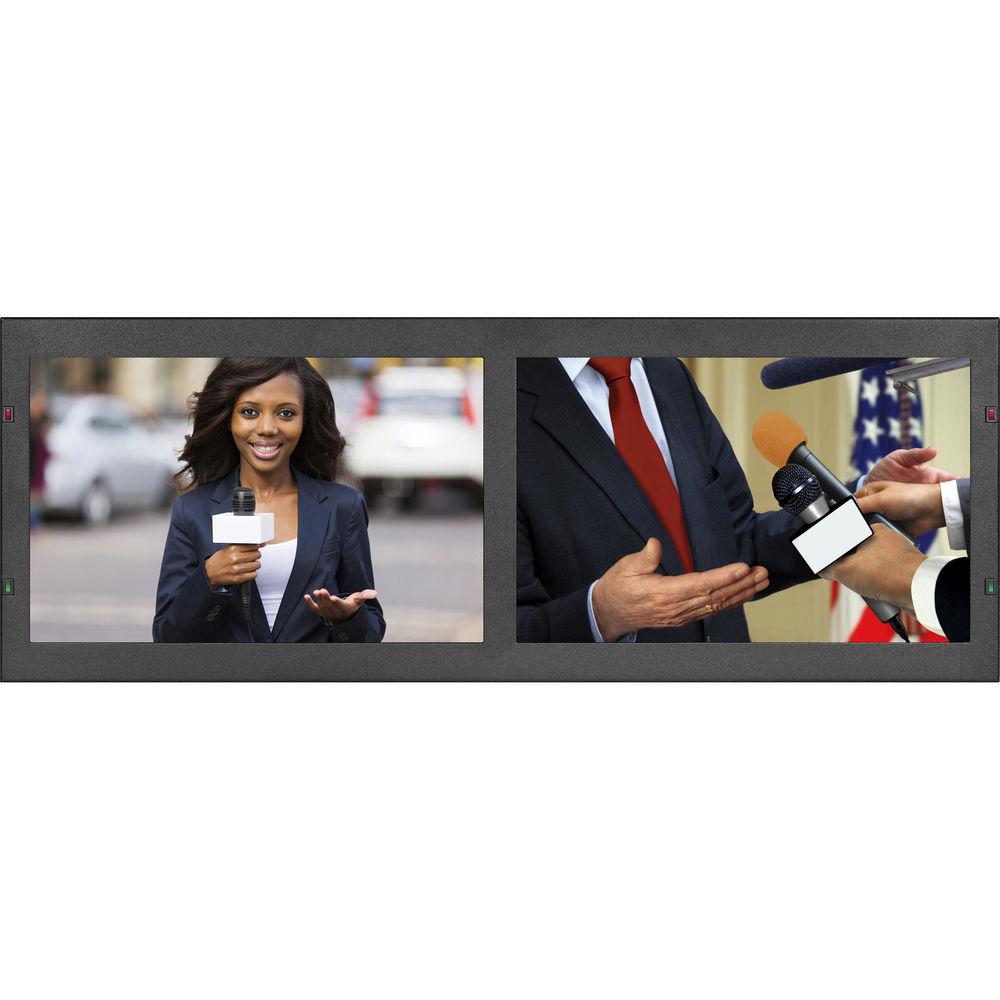

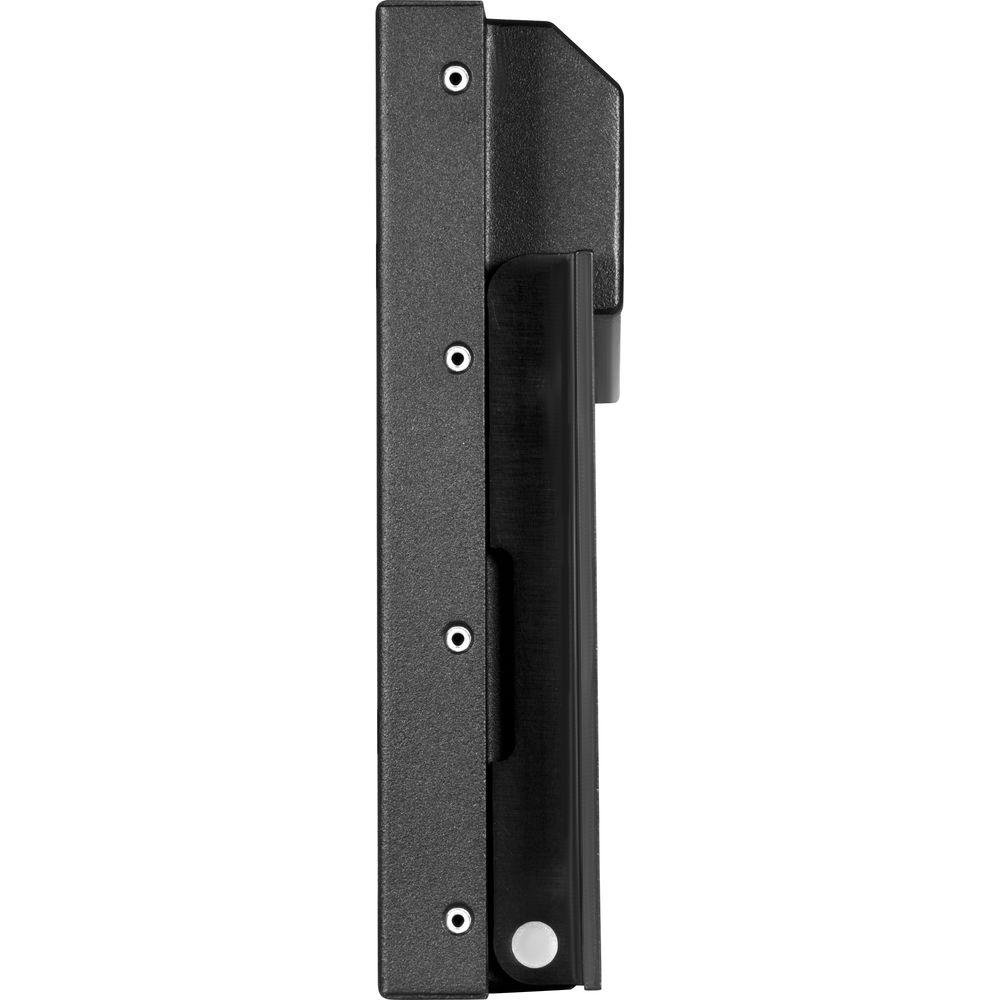

Product description The V-R1012 Dual 10.1" 3G/HD Rackmount Monitor from Marshall Electronics is a fully integrated solution that is designed to save rack space. Its dual 10.1" 1280 x 800 LCD panels with IMD (In-Monitor Display) feature supports video time code, tri-color soft tally, and audio presence indicators with 3G/HD-SDI inputs. - With all-in-one in-monitor display solution without added depth, there is no need for external under monitor display
- Supports image video / NVISION / TSL / MEI protocols
- 1280 x 800 RGB dots with 2.4 million pixels
- High resolution scaling / high quality de-interlacing
- Wide horizontal and vertical viewing radius of 170° provides high visibility
- 500cd/m² brightness produces enhanced image quality in varying light and viewing conditions
- 800:1 ratio of contrast between black and white luminance values
- Three-color on-screen soft tally indicators (red / green / amber)
- Two LED color tally indicators (red / green)
- On-screen audio presence indicator
- On-screen video time code
- RS-422/485 connection with loop-through for control communication / IMD functionality
- Field upgradeable firmware capability via RS-422 / 485 port
- Direct access for adjustments of brightness, contrast, and color
- Multiple frame marker overlays with center mark
- Blue gun for color adjustment
- Adjustment settings memory
- Ideal for live broadcast, broadcast units, HD OB truck, closed captioning, confidence monitoring, audio monitoring
UPC: 801813179521 In the Box Marshall Electronics V-R1012 Dual 10.1" 3G/HD Rackmount Monitor with IMD Function Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-R1012 Dual 10.1" 3G HD Rackmount Monitor with IMD Function in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-R1012-IMD-3GTE Specs | Number of Panels | 2 | | Panel Size | 10.1" (25.6 cm) | | Resolution | 1280 x 800 | | Aspect Ratio | 16.10 | | Type | LCD Panel | | Brightness | 500 cd/m² | | Contrast | 800:1 | | Color Gamut | YUV, RGB | | Viewing Angles | 150 x 150° | | Backlight Type | LED | | Compatible Formats | SDI / HDSDI Inputs:
525i/59.94, 625i/50
720p/60, 59.94, 50, 30, 29.97, 25 24, 23.98
1080p/30, 29.97, 25, 24sF, 24, 23.98sF, 23.98
1035i/60, 59.94
1080i/60, 59.94, 50
3G-SDI Inputs:
3G - Level A and Level B
YCbCr, YCbCr+A, RGB, RGB+A
1080p/60, 59.94, 50
1080p/30, 29.97, 25, 24, 23.98, 30sF, 29.97sF, 25sF, 24sF, 23.98sF

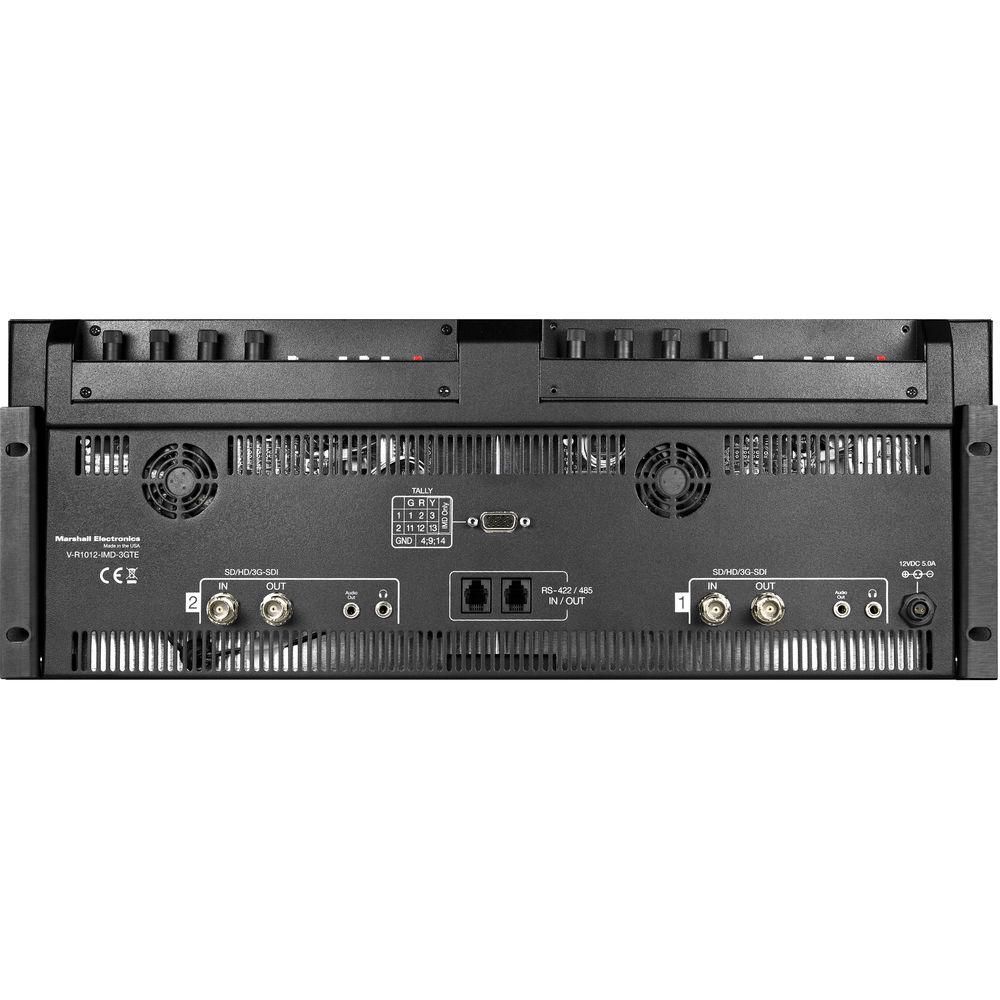

1080i/60, 59.94, 50 | | Color Temperature | D65, D55, and D93 | | Slot | Modular Input Slot: 2 | | Input Connectors | 3G-SDI Video Input (per screen)
1 x BNC Female (75 Ohms) | | Video Output | 3G-SDI Video Output (active output, per screen)
1 x BNC female (75 Ohms) | | Audio Outputs | Embedded Audio SDI
Headphones
Input Status Display | | OSD | Audio Bars
Channels | | Control Features | Tally / GPI, RS-485/422 with loop-through, Ethernet, handles rack ears | | Voltage | 12 VDC | | Consumption | 3 A @ 12 VDC (36 W) | | Power Switch | Yes | | Connector | 2-Pin Twist Lock | | Compliance | CE approved | | Operating Temperature | 59 to 104°F (15 to 40°C) | | Storage Temperature | 14 to 122°F (-10 to 50°C) | | VESA Pattern | 75 mm | | Dimensions (W x H x D) | 19 x 6.95 x 1.74" (48 x 18 x 4.4 cm) | | Weight | 6.5 lb (2.9 kg) |
