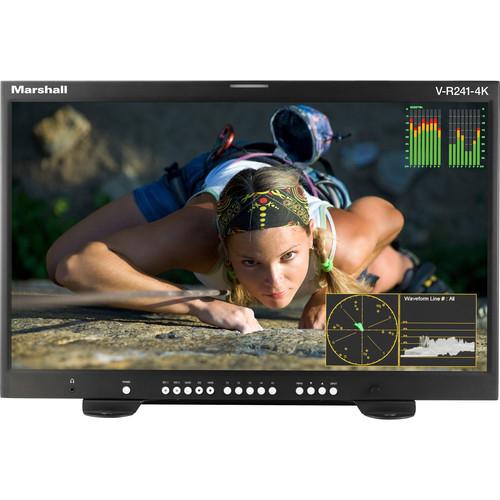

Product description The V-R241-4K 24" UHD 4K 3G-SDI Confidence Monitor from Marshall is a UHD 4K-compatible monitor designed for use as a master confidence monitor for studio, post-production, or remote location use. Use the four SDI inputs for UHD 4K, quad-view, or multiview configurations. Input video via the V-R241-4K's two 12G-SDI, two 3G-SDI, and one HDMI inputs. SDI inputs 1 and 2 support single-cable 12G-SDI UHD 4K, and the HDMI input supports up to UHD 4K signals. Each SDI input has a loop-through output, and IMD/UMD content is input/output via RS-422 ports.The V-R241-4K offers 350 cd/m² of brightness and a contrast ratio of 1000:1. Monitor features include tally and text display, timecode overlay, and 16-channel audio metering. This confidence monitor's display tools include fully adjustable on-screen markers, a waveform monitor, vectorscope, false color, LED tally lights, embedded LTC or VITC timecode overlay, and a 16-channel audio meter.Control options include five user-programmable buttons, five input selection buttons, and remote control via Ethernet, RS-232, and GPI interfaces. The V-R241-4K can be powered using 110 to 240 VAC, or via a 5-pin XLR 24 VDC input. Display options include VESA 100mm mounting points, an included desktop stand, and wall- or rack-mounting using separately available components. - Features
-
- 24" monitor with native 3840 x 2160 LCD panel
- Dual 12G-SDI, dual 3G-SDI, and single HDMI inputs; four SDI loop-through outs
- Supports HD/SD-SDI video resolutions up to 3840 x 2160 and HDMI input up to 2160p
- Brightness of 300 cd/m² and contrast ratio of 1000:1
- Adjustable onscreen markers, waveform monitor, vectorscope, false color mapping
- LED tally, embedded LTC or VITC timecode overlay
- Five input-selection buttons and five user-programmable buttons
- Ethernet, RS-232, and GPI interface remote control
- 16 audio meter overlay
- Desktop, wall-mountable, or rack-mountable (with optional kit)
UPC: 801813184815 In the Box Marshall Electronics V-R241-4K 24" UHD 4K 3G-SDI Confidence Monitor Desktop Stand Limited 1-Year Warranty Limited 2-Year Warranty with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-R241-4K 24" UHD 4K 3G-SDI Confidence Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-R241-4K Specs | | | Panel Type | Unspecified LCD | | Display Size | 24.0" / 61.0 cm | | Screen Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Touchscreen | No | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Dot Pitch | 0.13725 x 0.13725 mm | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Response Time | 14 / 14 ms (Rise / Fall) | | Real-Time LUT Monitoring | No | | Image Controls | False Color, Screen Markers, Waveform, Vectorscope | | | | Video | 2 x BNC (12G-SDI) Input
2 x BNC (3G-SDI) Input
1 x HDMI Type A (HDMI 2.0) Input
2 x BNC (12G-SDI) Output
2 x BNC (3G-SDI) Output | | Embedded Audio | SDI: 16-Channel
HDMI: 16-Channel | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Power | 1 x IEC Input
1 x 5-Pin XLR Input | | Other I/O | 1 x RS-232 (DE-9/DB-9)
1 x USB 2.0 (USB Type-A)
1 x GPI (RJ45)
1 x LAN (RJ45)
2 x RS-422 (RJ45) | | Card Slot | None | | | | Video Format | SDI (10-Bit)
UHD 4K: 24/25/30/50/60
DCI 2K: 24/25
1080p: 24/25/30/50/60
1080PsF: 24/25/30
1080i: 50/60
720p: 24/25/30/50/60
NTSC: 59.94
PAL: 50
HDMI (10-Bit)
UHD 4K
1080p
720p
480p | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC | | Battery Type | None | | | | Mounting-Hole Pattern | 100 x 100 mm | | Mounting | None | | | | Operating Altitude | 0 to 10,000' / 0.00 to 3048 m | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Storage Altitude | 0 to 40,000' / 0.00 to 12,192 m | | | | Dimensions (W x H x D) | 23.09 x 14.88 x 2.72" / 586.4 x 378 x 69 mm | | Weight | 26.46 lb / 12 kg | | | | Package Weight | 17.115 lb | | Box Dimensions (LxWxH) | 26.5 x 19.8 x 7.9" |
