User Manual for Marshall Electronics V-R241-DLW Dual Link Desktop Rack Mount Monitor Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-R241-DLW Dual Link Desktop
- Product category: Production Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Production Monitors
|
User manual for the Marshall Electronics V-R241-DLW Dual Link Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|

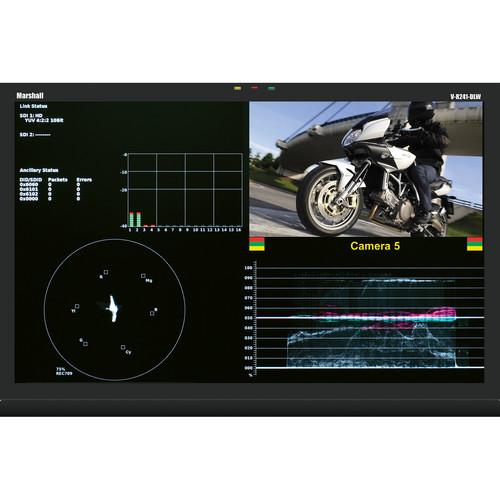

Product description The Marshall Electronics V-R241-DLW Dual Link Desktop/Rack Mount Monitor, with a 24” LCD panel, waveform monitor, and vectorscope, produces high quality images at a resolution of 1920 x 1200. The monitor offers a brightness of 400 cd/m2 and contrast ratio of 1000:1. It features a 10-bit error free video path and supports 3G capability.
With multi-mode function, the monitor splits the screen into 4 quadrants and allows you to view signal Input information (Link Status), embedded audio levels, a Waveform monitor, a Vectorscope, and live video at the same time. The monitor also enables you to view waveform monitor, vectorscope, SDI Link status, and video individually with the help of additional layouts.
The Waveform monitor allows for viewing digital video components in YUV/RGB color space, displayed in parade or overlay mode. In addition, the waveform monitor offers facility to view waveform in different aspect ratios, positions, and transparency options. With built-in vectorscope, you can view X-Y plot of 2 signals and observe the color gamut (subset of colors) in real time. Additionally, the vectorscope displays various sizes, positions, and transparency options.
In-monitor display enables on-screen text and tally indication, which can be controlled locally or remotely via support for protocols like SL, NVISION, Image Video, and MEI (Marshall Electronics) tally control systems, remote firmware update via RS-485, tri-color hard and soft tally, and Safety Marker configurations. The V-R241-DLW monitor uses sixteen 40-segment tri-color audio meters with user changeable reference levels to separate and display up to 16 audio channels. It incorporates Closed Captioning Decoding in EIA608/EIA708 caption standards to display additional text or information to viewers who wish to access it.
The multi-configurable OSD (on-screen display) allows you to display the embedded time code and an embedded audio presence indicator on the screen. In addition, the OSD provides closed caption presence indication for the EIA608/EIA708 captions. Four user-programmable buttons provide fast access to various settings and functions such as aspect ratio, monochrome mode, and color temperature. V-R241-DLW Dual Link Desktop/Rack Mount Monitor supports DI, HD-SDI, 3G-SDI and Dual Link SDI, and RS485 interfaces. - Features a 24" LCD panel, a waveform monitor, and a vectorscope
- Produces high quality images at a resolution of 1920 x 1200
- Offers a brightness of 400 cd/m2 and contrast ratio of 1000:1
- Features a 10-bit error free video path and supports 3G capability
- Multi-mode function splits the screen into 4 quadrants and allows you to view signal Input information (Link Status), embedded audio levels, a Waveform monitor, a Vectorscope, and live video at the same time
- Enables you to view waveform monitor, vectorscope, SDI Link status and video individually with the help of additional layouts
- Allows for viewing digital video components in YUV/RGB color space, displayed in parade or overlay mode
- Offers facility to view waveform in different aspect ratios, positions, and transparency options
- Can view X-Y plot of 2 signals and observe the color gamut (subset of colors) in real time with the vectorscope
- Displays various sizes, positions, and transparency options
- In-monitor display enables on-screen text and tally indication, which can be controlled locally or remotely via support for protocols like SL, NVISION, Image Video, and MEI (Marshall Electronics) tally control systems, remote firmware update via RS-485, tri-color hard and soft tally, and Safety Marker configurations
- Uses sixteen 40-segment tri-color audio meters with user changeable reference levels to separate and displays up to 16 audio channels
- Incorporates Closed Captioning Decoding in EIA608/EIA708 caption standards to display additional text or information to viewers who wish to access it
- Multi-configurable OSD (on-screen display) allows you to display the embedded time code and an embedded audio presence indicator on the screen
- Provides closed caption presence indication for the EIA608/EIA708 captions
- 4 user-programmable buttons provides fast access to various settings and functions such as aspect ratio, monochrome mode, color temperature
- Supports DI, HD-SDI, 3G-SDI and Dual Link SDI, and RS485 interfaces
- Incorporates color temperature adjustment, aspect ratio settings, blue-only mode, and monochrome mode features
- Pixel-pixel mode allows fixed display of incoming image format
UPC: 801813146974 In the Box Marshall Electronics V-R241-DLW Dual Link Desktop/Rack Mount Monitor V-PS24-7.5 Power Supply with XLR Connector Operating Instructions Limited 1-Year Warranty, Extends to 2 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-R241-DLW Dual Link Desktop Rack Mount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-R241-DLW Specs | Display Area | 24.1" Diagonal (518.4mm x 324.0mm) | | Resolution | 1920 x 1200 | | Viewing Angle | L/R - 178º U/D: 178º | | Dot Pitch | 0.270 (H) x 0.270 (V) | | Brightness | 400 cd/m2 | | Contrast Ratio | 1000:1 | | System | NTSC/PAL auto recognition | | Connection | Inputs - 3G-SDI x 2 / DVI-I x 1 Loop-through outputs - 3G-SDI x 2 | | | | Package Weight | 23.2 lb | | Box Dimensions (LxWxH) | 33.0 x 21.0 x 6.0" |
