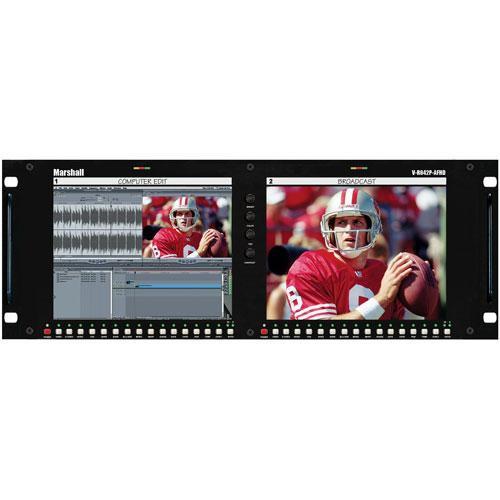

User Manual for Marshall Electronics V-R842DP-AFHD 8.4" High Definition 2-LCD Rackmount Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-R842DP-AFHD 8.4" High Definition
- Product category: Production Monitors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Production Monitors
|
User manual for the Marshall Electronics V-R842DP-AFHD 8.4" High Definition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall V-R842DP-AFHD is a high definition rackmount system consisting of two 8.4" LCDs. The rack comes equipped with all the tried-and-true attributes professional have come to love, including automatic NTSC/PAL detection, high contrast ratio and brightness and exceptional resolution for monitor HD content. For outdoor use, the panels are treated with a super transflective coating, making them exceptionally easy to view in bright sunlight. - Marshall's Professional Details
- Marshall Electronics builds their LCDs for professional applications and convenient, user friendly operation. In addition to wide viewing angles both horizontally and vertically, Marshall uses advanced techniques to improve image quality when scaling different resolution formats.
- Ready for the Great Outdoors
- LCDs can often reflect a large amount of sunlight. To avoid this oft-pesky phenomenon, the V-R842DP-AFHD has been treated with a super transflective coasting to reduce the amount of glare reflection.
- Automatic NTSC or PAL Recognition
- The V-R842DP-AFHD accepts both NTSC and PAL standard signals. Conveniently, the monitor will automatically detect which standard it is being fed without having to push a button, flip a switch or access a menu option.
- Long Life Panel
- The unit incorporates high quality LCD panels that provide operation for years with regular usage. The monitors deliver a service life of 50,000 hours; over 2000 days continuously! That's almost 6 years; Broken down to 8-hour days, the monitor should be operational for about 15 years. If that's not enough, the monitor comes with a 5-year warranty. Talk about reliability. Wow.
- Pixel-to-Pixel Mode
- The 1:1 pixel-to-pixel mode lets users see footage at its native resolution, even if it does not fill the screen. This feature can be very useful when viewing 720p footage, especially in situations where scaling could potentially diminish image quality.
UPC: 801813118124 In the Box Marshall Electronics V-R842DP-AFHD 8.4" High Definition 2-LCD Rackmount AC Power Cord Limited 1-Year Warranty, Extendable to 2-Year with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-R842DP-AFHD 8.4" High Definition 2-LCD Rackmount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-R842DP-AFHD Specs | Application | Rack Mount, Control Room, Computer Monitoring | | LCD Size | (2) 8.4" | | Video System | NTSC, PAL, HDTV (Auto-Detect) | | Picture Elements | (2) 1024 x 768 | | Viewing Angle | 170° | | Input and Output Connectors | (2) Component (x1 Input)
(2) Composite (x1 Input)
(2) HD-SDI/SDI: BNC (x1 Input)
(2) S-Video
(2) DVI-I | | Picture Controls | Brightness, Color, Tint, Contrast | | Remote Control | RS-422/485: 15-Pin DSub (Female) | | Power Requirements | 12VDC | | Power Consumption | 42W | | Dimensions (WxHxD) | 18.92 x 7 x 2.02" (48.1 x 17.8 x 5.1cm) | | Weight | 6.7 lbs (3kg) | | | | Package Weight | 9.95 lb | | Box Dimensions (LxWxH) | 24.25 x 9.25 x 8.5" |
