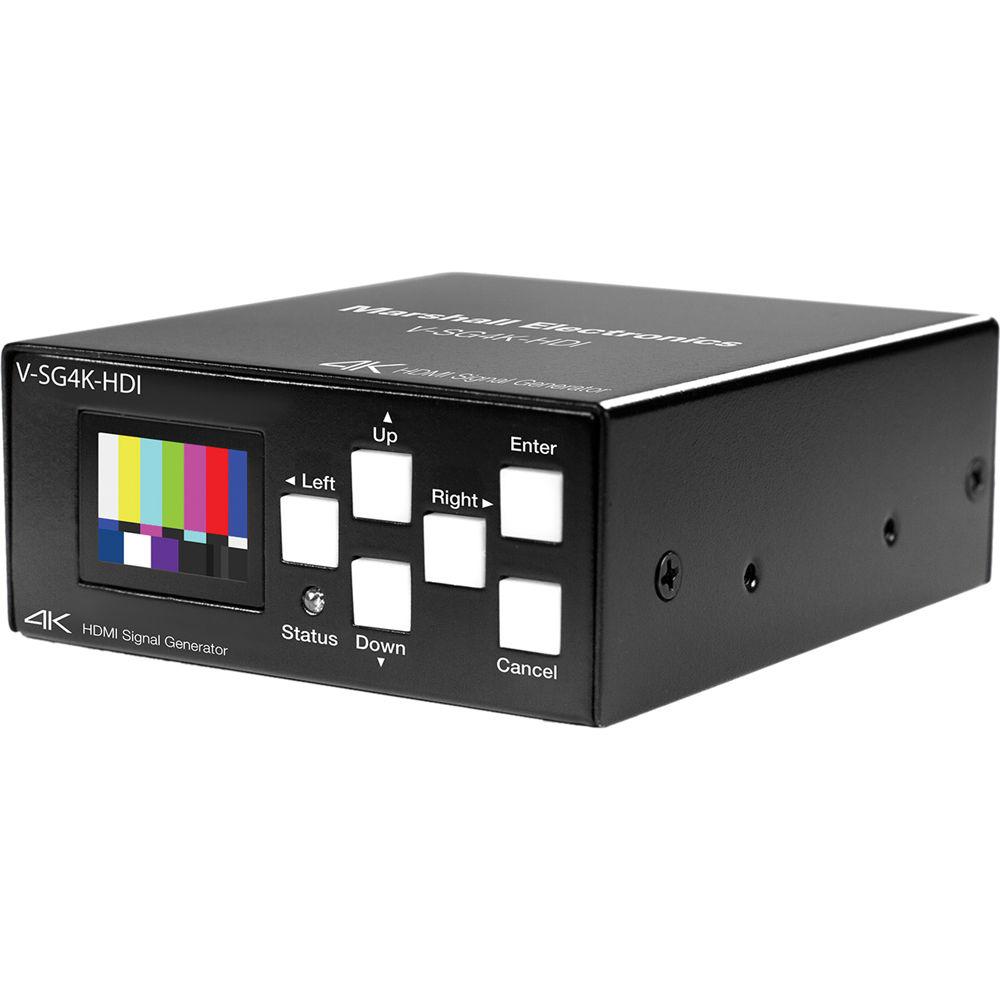

Product description The V-SG4K-HDI 4K HDMI Portable Signal Generator from Marshall Electronics is a compact and portable digital test generator that is ideal for video engineers, system integrators/installers, shooters and product designers. This unit is capable of generating various combinations of display resolutions, sampling, and frame rates in the digital spectrum, along with an array of audio combinations.

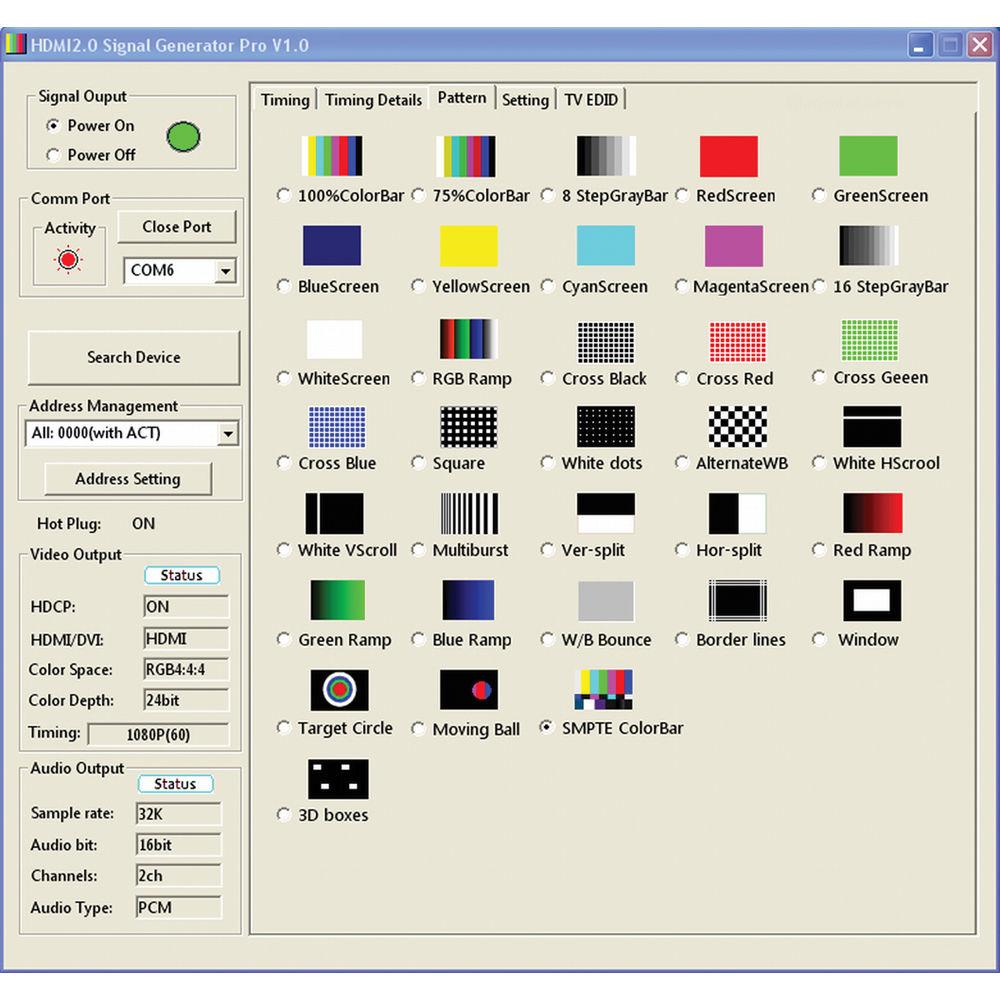

Equipped with complete EDID interface software, the V-SG4K-HDI is capable of emulating any device to which it is connected. The V-SG4K-HDI comes complete with a Windows compatible computer application that provides the option of rapid remote control operations and operates equally well with the on-board push button panel.
The test generator allows easy field calibration, testing and maintenance of many applications such as: production line quality assessment; studio equipment for both installers and users; television sets by TV engineers or technicians; digital signage configurations with extenders, switches, splitters or video wall processors; and discerning home theater users. Using the corresponding video cable needed, simply connect the video test pattern generator to the supported display unit to run the test patterns on the screen. No other video source, such as a computer, DVD player or set-top box is needed for the testing process. - Generates 32 video test patterns in formats from SD to HD to 4K

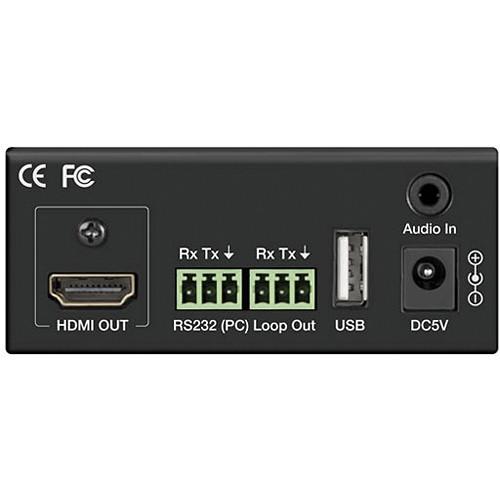

- Generates audio tones from two to 8 channels, 16 to 24-bits, and 32-192 KHz sample rates
- Audio jack allows insertion of audio from external source (two channels)
- Detailed adjustment of timing parameters (perfect for designers / QC test)
- Extract and save and recall EDID information

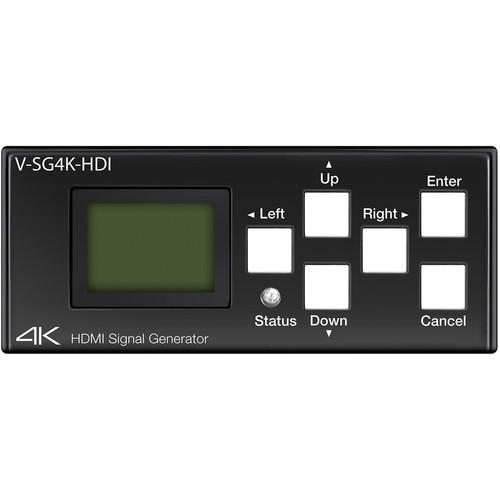

- Simple quick access front panel controls
- Deep control available via USB or RS-232 interface
- Daisy-chain multiple units to create complex test systems
- 3G Interface: HD-SDI is easily facilitated using the MXL VAC-12HS converter (not included)
- Can be powered via a battery (using optional battery adapter) or a USB device
UPC: 801813174922 In the Box Marshall Electronics V-SG4K-HDI 4K HDMI Portable Signal Generator 5 VDC 1 A Power Supply 2 x Mounting Ears 1.2 m USB A-to-A Cable 2 x Phoenix Plugs Disk with Control Application Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-SG4K-HDI 4K HDMI Portable Signal Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-SG4K-HDI Specs | HDMI Version | HDMI 2.0 / DVI | | Video Bandwidth | Up to 9.0 GHz (3.0 GHz per channel) | | Color Depth | 24-bits, 30-bits, 36-bits, 48-bits | | Video Formats | 32 presets including: 4K (30/29), 4K(25), 4K(24), 4K(50), 4K(60/59), 720p-3D, 1080p-3D plus fixed timing and AUTO detect mode | | Timing | Up to 10 user defined presets | | Test Patterns | 34 (33 2D and one 3D pattern) | | Color Sampling | RGB444, YUV444, YUV422, YUV420 (HDMI 2.0 only) | | Bit Depth | 26, 24, 20 bits | | Audio Sampling Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176 kHz, 192 kHz | | Vertical Frequency Range | Supports frame rates up to 120 Hz | | Maximum Power Consumption | 2 W | | Housing | Metal | | Dimensions | 3.25 x 1.25 x 3.8" (83 x 32 x 97 mm) | | Weight | 0.6 lb (280 g) | | | | Package Weight | 1.275 lb | | Box Dimensions (LxWxH) | 7.65 x 5.6 x 3.35" |
