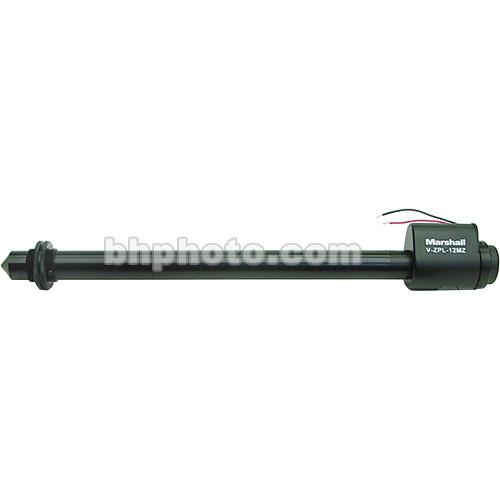

User Manual for Marshall Electronics V-ZPL-12MZ 4mm to 20mm f 2.5 Motorized Zoom Pinhole Lens with CS-Mount for 1 3-Inch CCD Click to enlarge the picture
Contents of the user manual for the Marshall Electronics V-ZPL-12MZ 4mm to 20mm
- Product category: Lenses Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Lenses
|
User manual for the Marshall Electronics V-ZPL-12MZ 4mm to 20mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The Marshall V-ZPL-12MZ is a CS-mount pinhole lens with motorized zoom function to accomodate changing conditions at any given time. With a 1/3" CCD camera the lens will display a 60° horizontal angle-of-view at full wide. At the other end of the spectrum, 20mm will show a narrow 13° horizontal angle. Aperture changes with focal length. At the maximum 20mm the lens has a f/12.5 aperture (f-stop=focal length/1.6). The lens is made for tough industrial environments. A push-on front cap has two functions. It has a clear tip to protect the lens' front element. The cap also has a mounting support. - Electronically Variable Focal Length
- The Marshall V-ZPL-12MZ is the motorized version of this 4-20 mm industrial lens. The aperture is tied to the focal length so the f/ stop is also going to be automatically operated. There is a manual version of this lens called the V-ZPL-12. Either lens may be used with Marshall's remote pan-and-tilt system components.
UPC: 801813039245 In the Box Marshall Electronics V-ZPL-12MZ 4mm to 20mm f/2.5 Motorized Zoom Pinhole Lens with CS-Mount for 1/3-Inch CCD 1-Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-ZPL-12MZ 4mm to 20mm f 2.5 Motorized Zoom Pinhole Lens with CS-Mount for 1 3-Inch CCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-ZPL-12MZ Specs | Mount | CS-Mount | | Image Format | 1/3" CCD
1/2" CCD also Applicable | | Focal Length | Motorized 4-20 mm Zoom Range | | Aperture | f/2.5 at 10 mm
f/12.5 at 20 mm | | Iris Type | Fixed to Focal Length | | Focus Type | Fixed | | Horizontal View Angle | 60° on 1/3" CCD Full Wide
14° on 1/3" CCD at Full Zoom | | Minimum Object Distance (M.O.D.) | Not Specified by Manufacturer | | Macro | No | | Dimensions (WxHxD) | 0.787 x 0.787 x 13"
20 x 20 x 330 mm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 15.5 x 3.25 x 3.15" |
