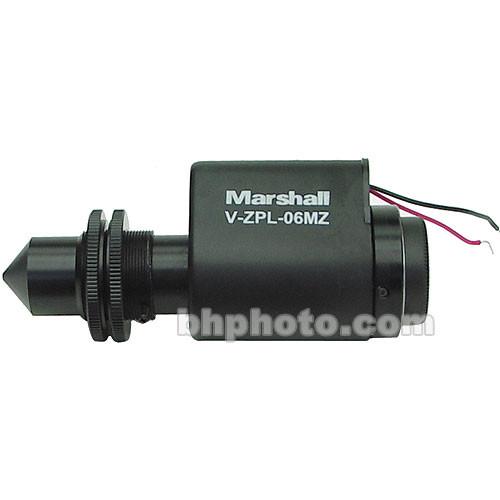

Product description The Marshall V-ZPL06MZ is a motorized vari-focal industrial pinhole lens designed for 1/3" CCD cameras. This lens has a 4-20mm range of focal length with a wide range of view angles. Its aperture wide open is f/2.5, reasonably effective in lower lighting conditions. It can also be used with 1/2" CCD cameras which will give an amazing 120° angle of view at full 4mm wide. The motorized feature allows it to be used with the Marshall pan-and-tilt mechanism that will also control zoom functions. - High Quality for Tough Situations
- When the camera lens must be hidden from view, a pinhole lens such as this V-ZPL06MZ provides clean images when they count the most. The Marshall lenses have glass elements for consistent low distortion video. The front element of this lens is about 3 mm in diameter, easily hidden from view. The lens is 4" in length.
- Variable Angle of View
- The lens at full 4 mm wide provides a wide angle of about 60°. At full extension - 20 mm - the lens shows a horizontal angle of view of about 14°
- Motorized Lens for Pan and Tilt Mechanism
- The V-ZPL06MZ is designed to work with the Marshall V-ZPT2 and V-ZPT4 pan-and-tilt rigs. These rigs will also control focal length remotely. The ZPT2 offers panning function alone. The ZPT4 will control pan and tilt.
UPC: 801813038705 In the Box Marshall Electronics V-ZPL06MZ 4mm to 20mm f/2.5 Motorized Pinhole Lens, CS-Mount, for 1/3-Inch CCD 1-Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics V-ZPL06MZ 4mm to 20mm f 2.5 Motorized Pinhole Lens, CS-Mount, for 1 3-Inch CCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics V-ZPL-06MZ Specs | Mount | CS-Mount | | Image Format | 1/3" CCD
Also fits 1/2" CCD Cameras | | Focal Length | 4-20 mm | | Aperture | f/2 to f/12.5 | | Iris Type | Motorized | | Focus Type | Fixed | | Horizontal View Angle | 61° at 4 mm and 1/3" CCD
14° at 20 mm and 1/3" CCD | | Minimum Object Distance (M.O.D.) | Not Specified by Manufacturer | | Macro | No | | Dimensions (WxHxD) | 0.8 x 0.8 x 4.0"
20 x 20 x 101.6 mm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 6.5 x 3.5 x 3.5" |
